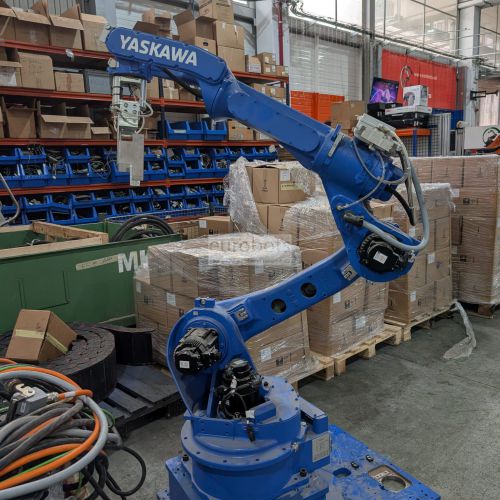

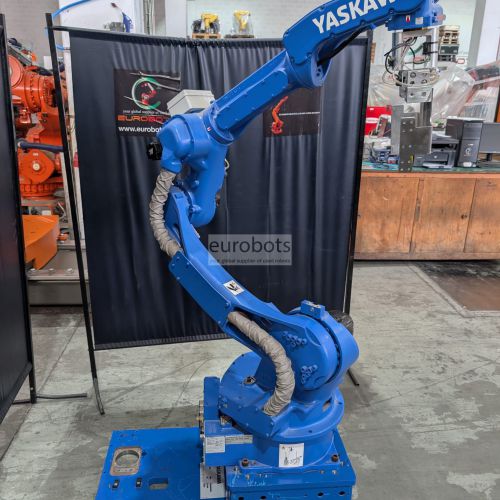

Motoman Yaskawa MH24-10 high speed

In stock

सूचना
विनिर्दिष्टियाँ

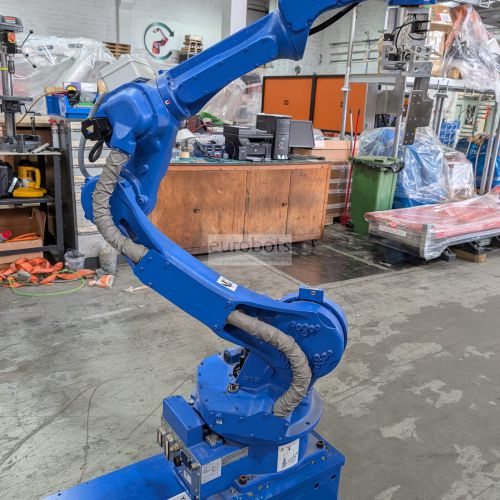

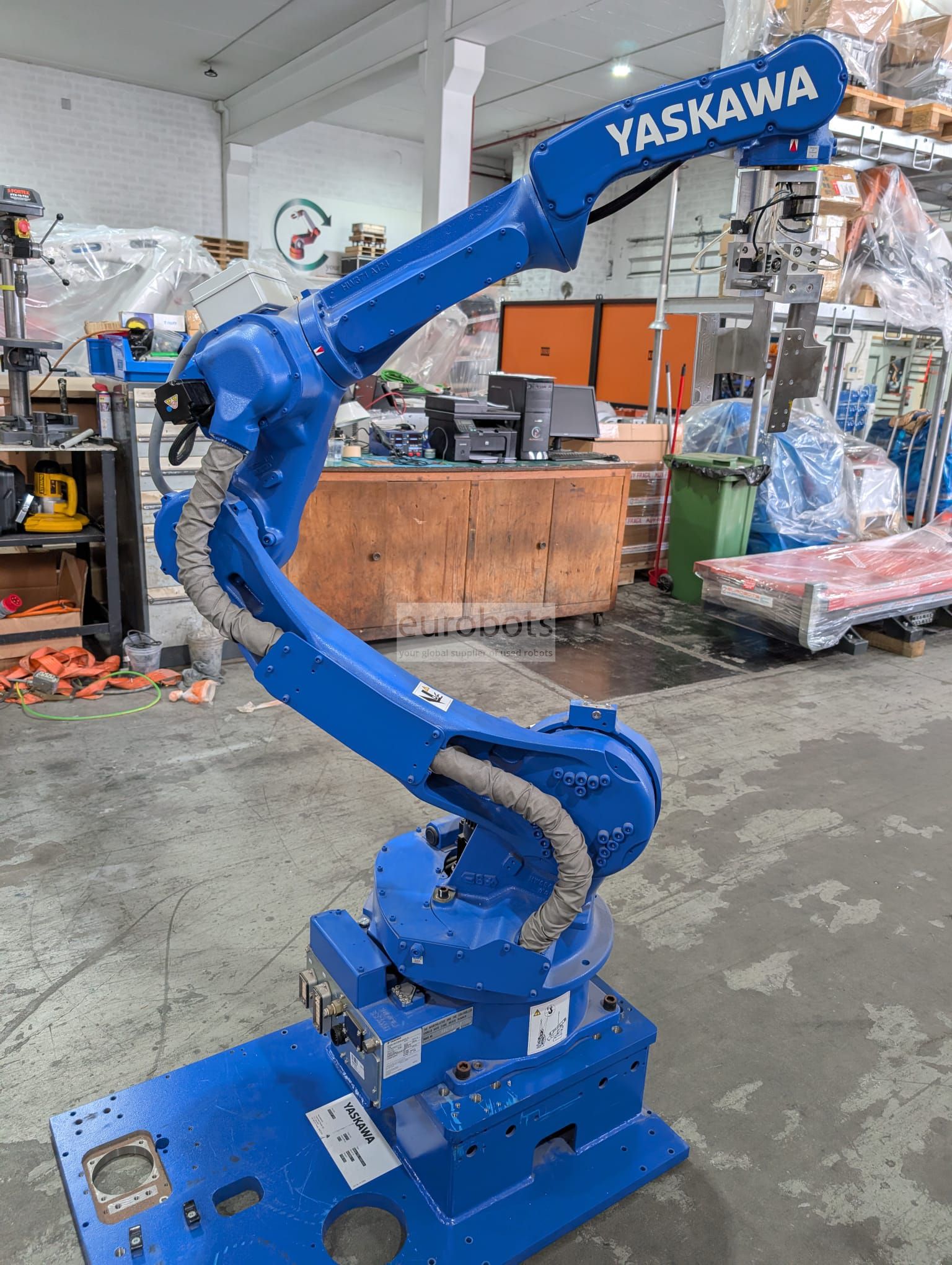

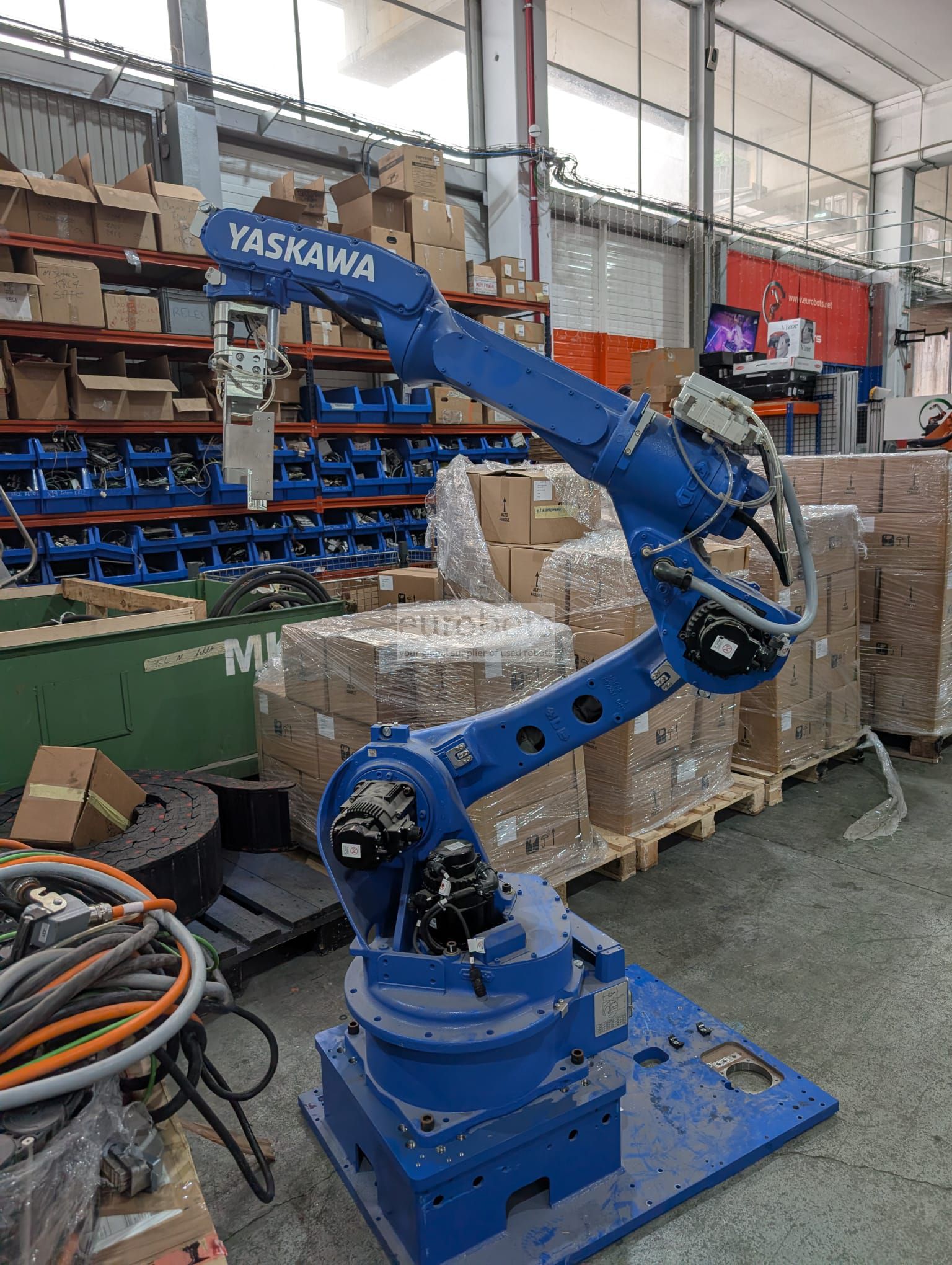

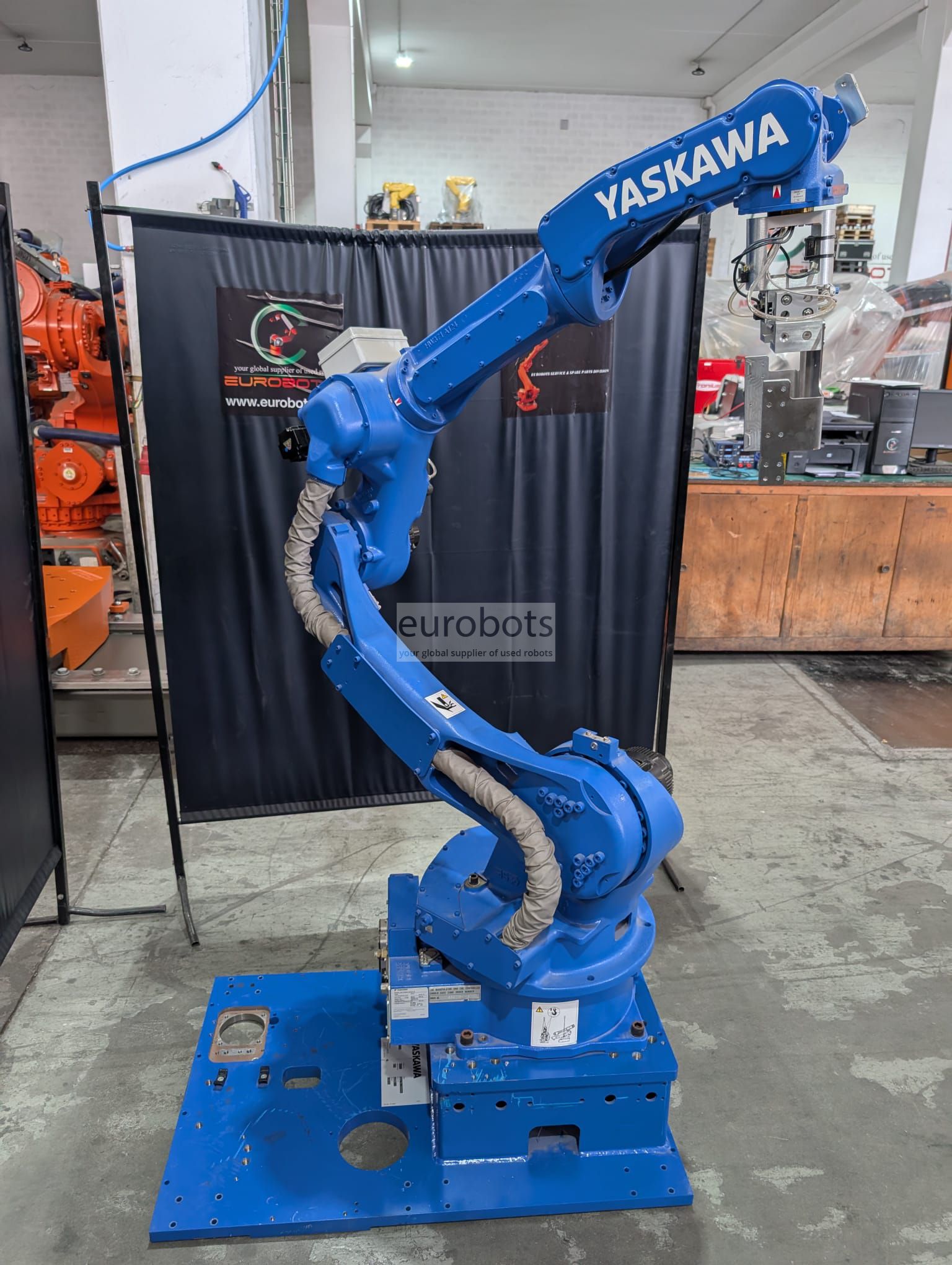

The robot MH24-10 long-range slim design; arm contoured to avoid interference with other parts, is characterized by its extraordinary speed and acceleration of the axis that minimizes cycle time increasing productivity and achieving high performance.

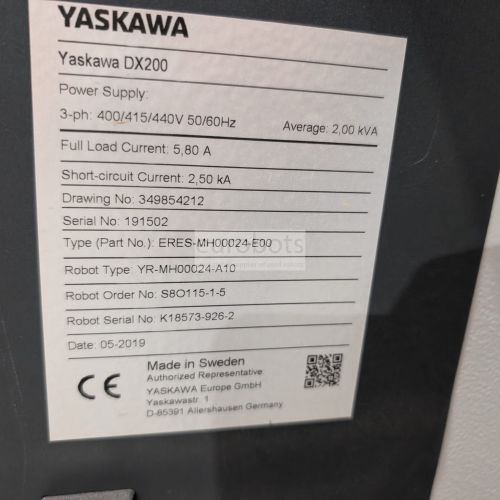

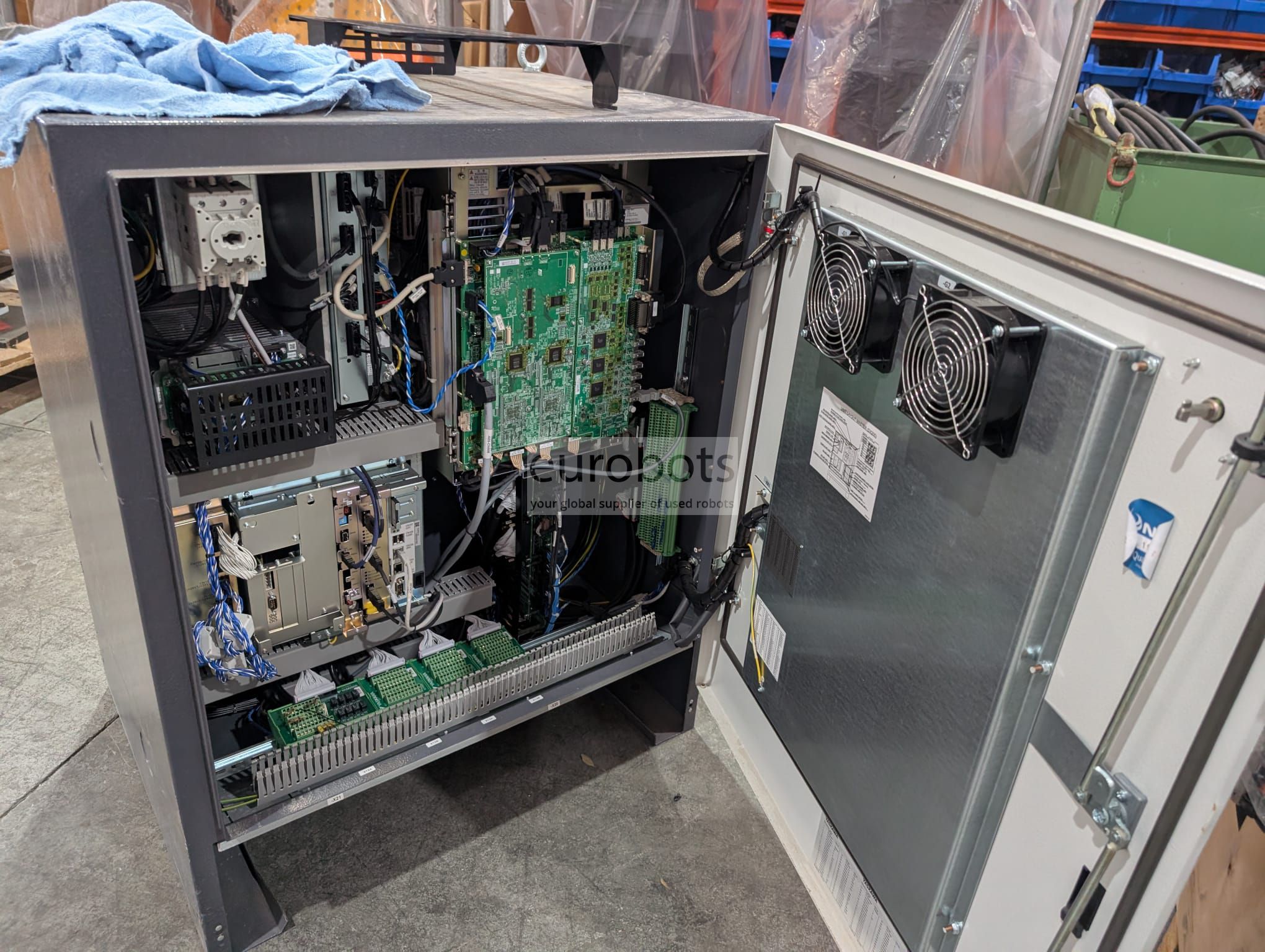

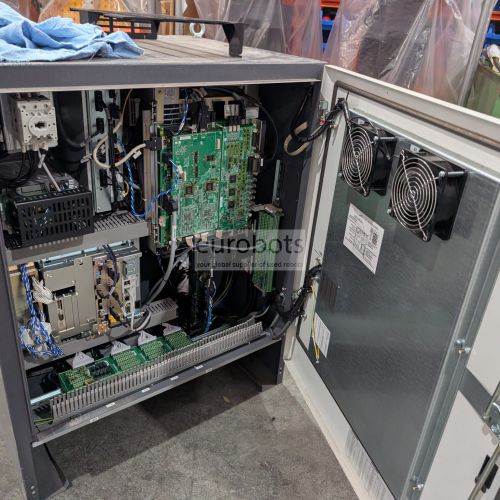

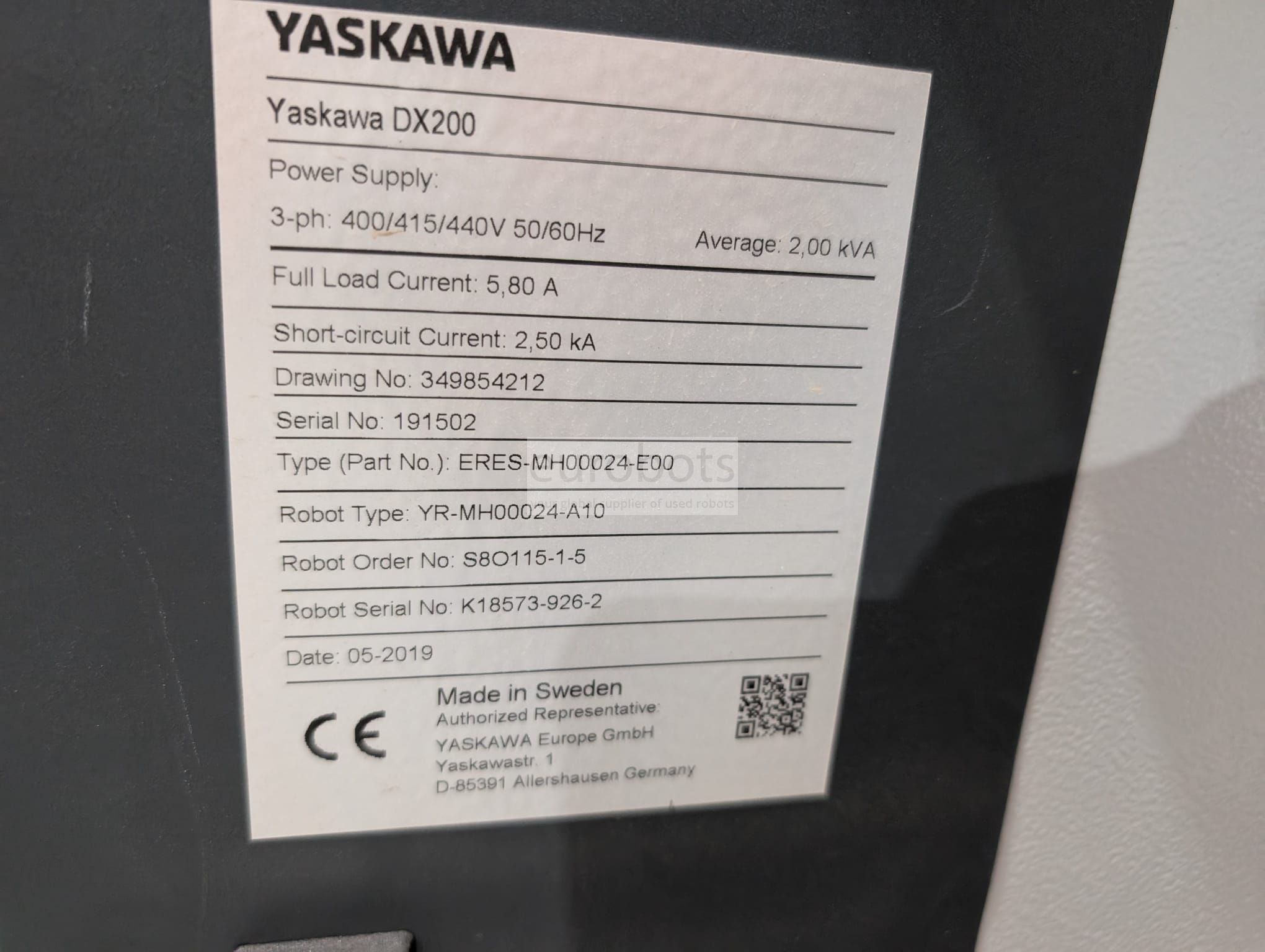

DX200 Controller

DX200 is one of the robust system architecture controllers of high reliability and system level efficiency for the robotic work cells. Variety of fieldbus network connections. Dynamic interference zones protect the robot arm and provide advanced collision prevention. Allows up to three auxiliary / external axes and can be mounted remotely. provides:

Application flexibility.
High productivity.
Minimal integration costs.
Application flexibility.
Increased reliability and energy efficiency.
Improved maintenance capacity, reduced average repair time (MTTR).
Category 3 Performance Level Functional Safety Unit (FSU).
Control of multiple robot of up to 8 robots / 72 axes with synchronized movement between devices.
Advanced robot motion control (ARM) provides high productivity and trajectory planning.
Small and light pendant with Windows® CE programming color touch screen with multiple window viewing possibilities.

Main specifications

Maximum Load of Robot: 10 kg
Number of axis: 6
Maximum horizontal reach: 2,010 mm
Maximum vertical reach: 3,649 mm
Repeatability: ±0.08 mm
Controller: DX200

Motion range (°)

Axis S: ±180° ( Wall-mounted MH24-10 S-axis maximum motion range is ±30°).
Axis L: +155°/- 105°
Axis U: +250°/-170°
Axis R: ±200°
Axis B: ±135°
Axis T: ±455°

Maximum speed (°/s)

Axis S: 197°/s
Axis L: 190°/s
Axis U: 210°/s
Axis R: 410°/s
Axis B: 410°/s
Axis T: 620°/s

Robot applications

Assembly
Machine tending
Material handling
Dispensing

उपयोग

Tekan merawat , Pembuatan palet , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang , Perakitan bagian
