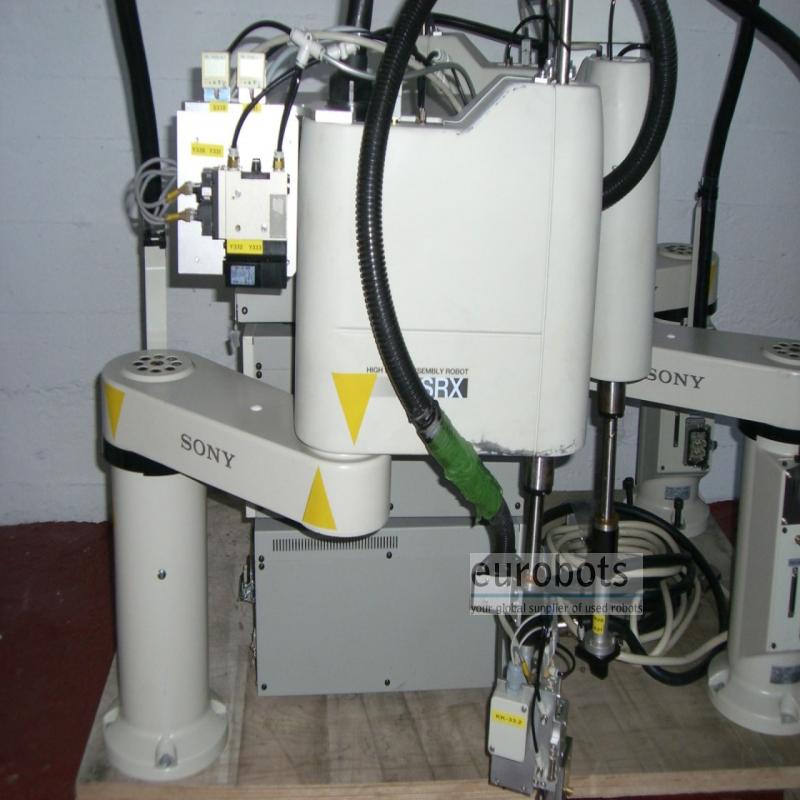

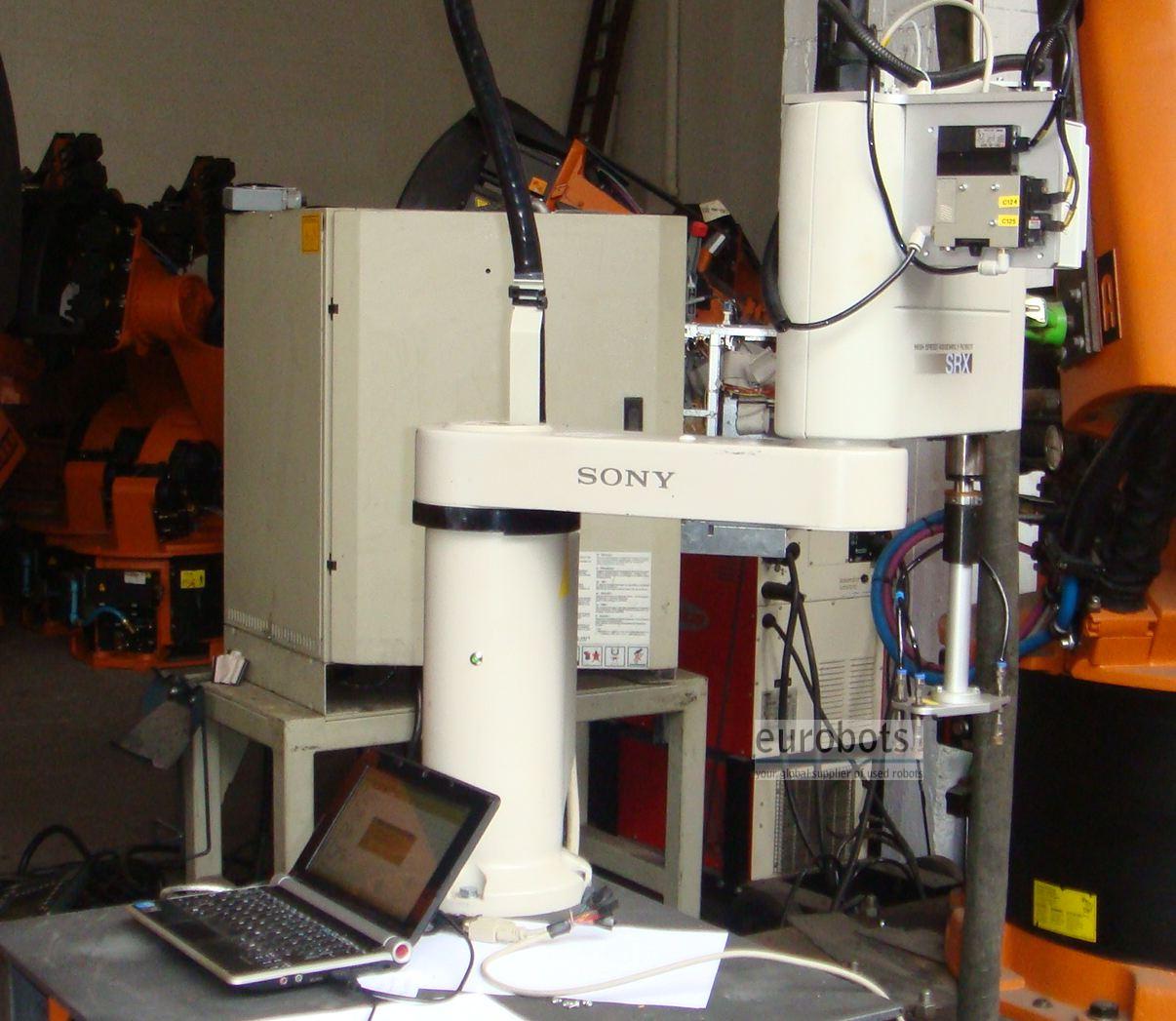

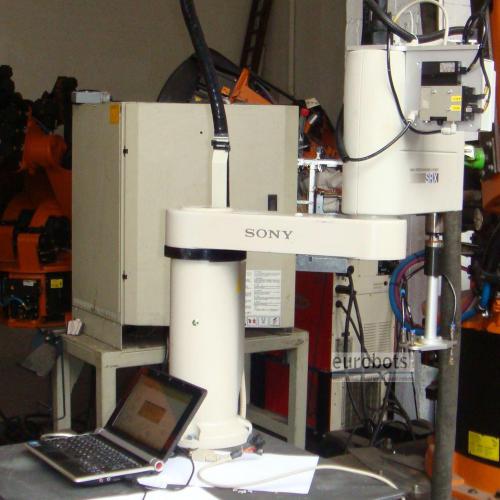

Scara Robots Sony SRX-611 Scara

Yok

Extremely accurate and fast assembly and pick&place robot. Almost new, very few working hours, year 2004. Indicated for the electronics manufacturing industry, pharmaceutical, special machinery construction, plastic industry, etc...

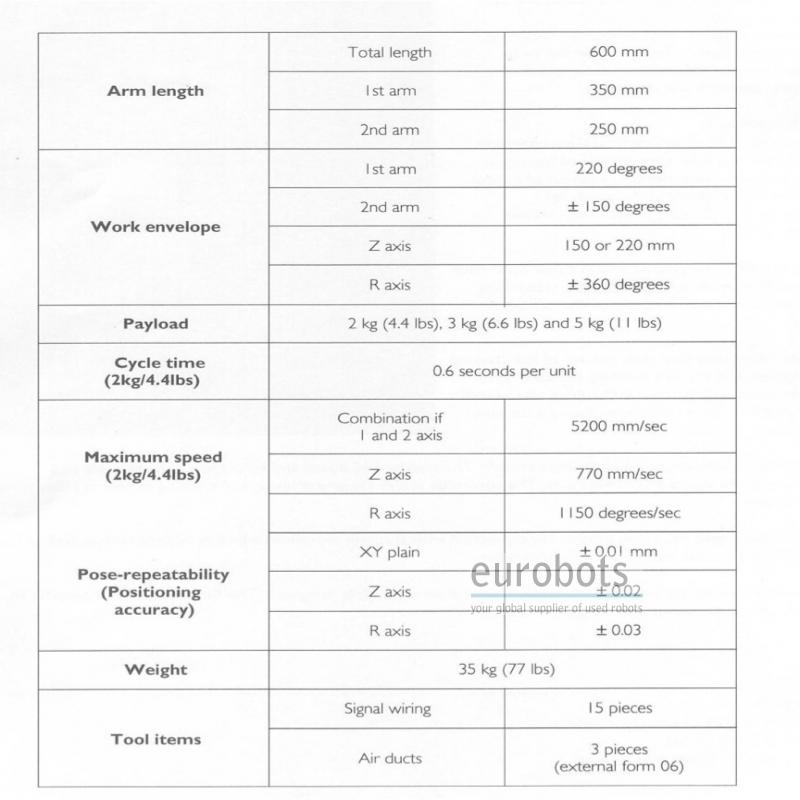

Arm length:

- 1st arm: 350mm
- 2nd arm: 250mm
- Total length: 600mm

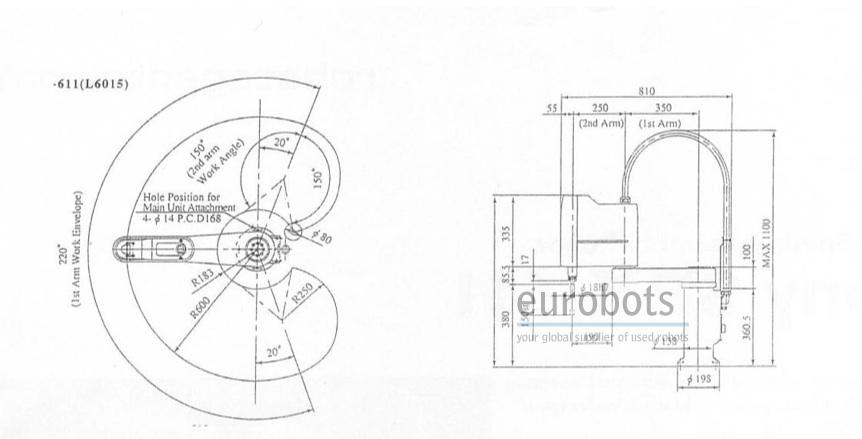

Work envelope:

- 1st arm: 220 degrees
- 2nd arm: ±150 degrees
- Z axis: 150mm
- R axis: ±360 degrees

Payload: 4.4 lbs, 6.6 lbs and 11 lbs

Cycle time when 4.4 lbs: 0.6 seconds/per unit
Max speed when 4.4 lbs:
- combination if 1 and 2 axis 5200mm/sec
- Z axis: 770mm/sec
- R axis: 1500 degrees/sec

Robot Info:

  • Number of axis: 4
  • Maximum Load of Robot: 2/3/5Kg.
  • Maximum Reach: 600 mm.
  • Repeatability: 0,01/0,02/0,03 mm.

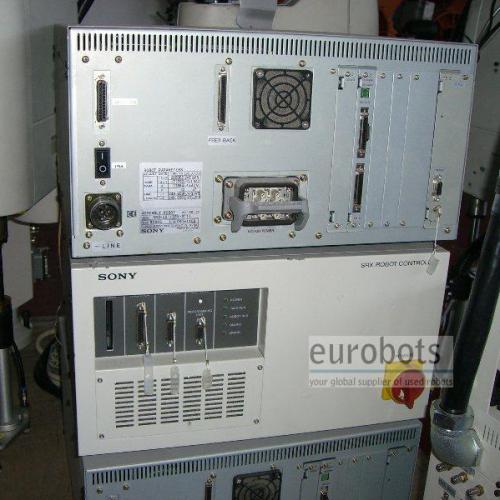

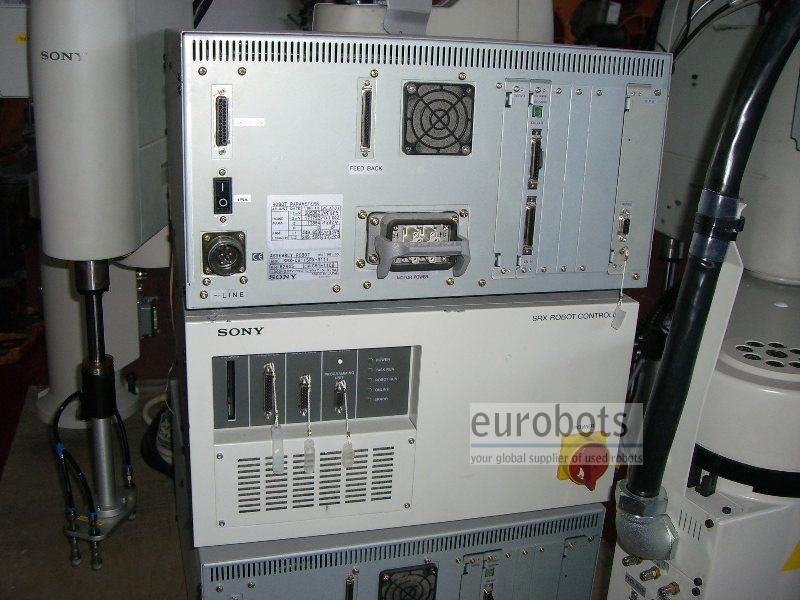

  • Controller: Luna 5.11

Robot Motion Speed:

  • Axe 1: 220º/seg
  • Axe 2: 150º/seg
  • Axe 3: 0º/seg
  • Axe 4: 360º/seg

Robot Applications:

  • Assembly of parts
  • Handling of small parts
  • Industrial fields: electronic, Special machinery, pharmaceutical, plastic, etc..

Applications

Parçaların montajı , Parçaların yüklenmesi ve boşaltılması
