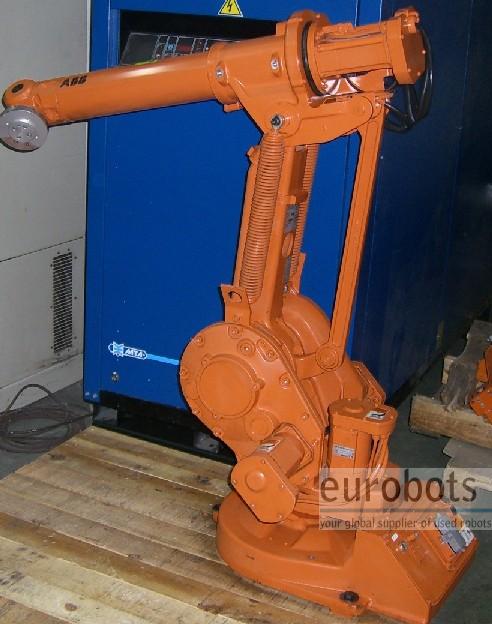

ABB IRB 1400 M94A

Yok

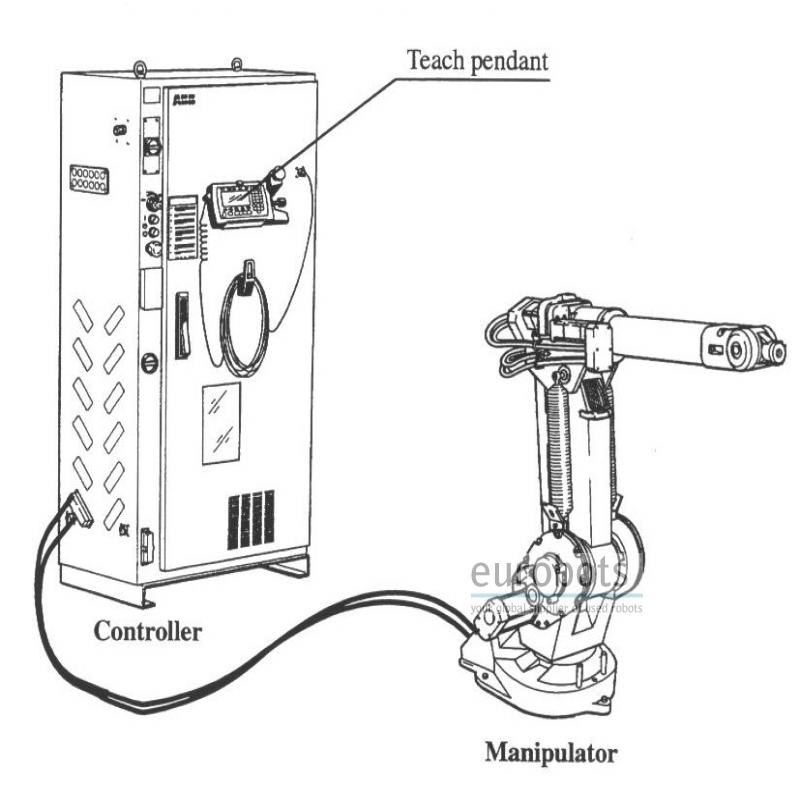

The ABB IRB 1400 is fast, reliable, and affordable, making it the perfect choice for any arc welding application or handling of small parts. The S4 controller enables RAPID instruction to shorten programming times.

The IRB 1400, with its hanging variant is ideal for a limited work place when a large work-processing area is required. The 1400 will increase productivity with its fast and reliable work cycles, long maintenance intervals and low noise levels. Less maintenance means more profits resulting from less down time.

The IRB 1400 is a favorite for factory floors in need of an arc welder, material handling, and process applications. With a handling capacity of 5kg and a supplementary load on the upper arm that can handle 18kg, combined with speed and accuracy allowing for high performance operations.

Robot Info:

  • Maximum Load of Robot: 5Kg.

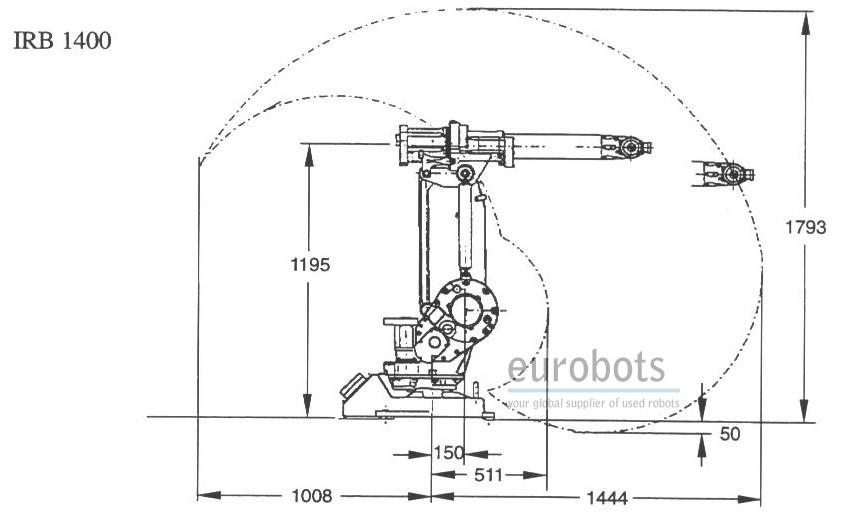

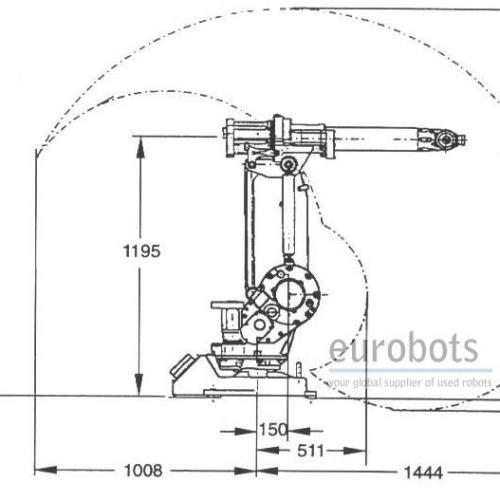

  • Maximum Reach: 1440 mm.
  • Repeatability: 0.05 mm.

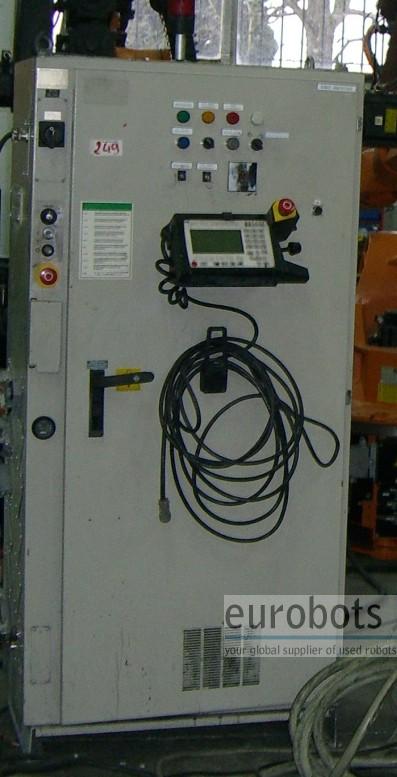

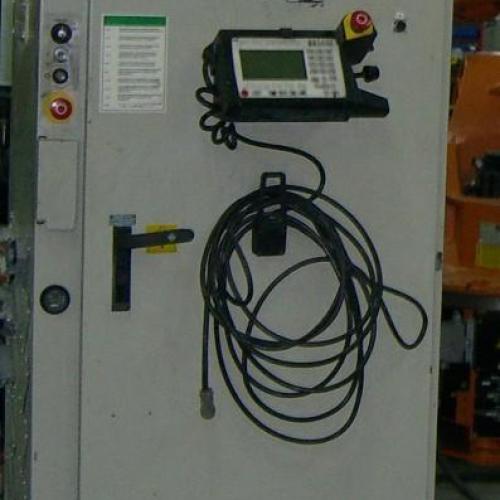

  • Controller: M94A-M96 S4.

Robot Motion Speed:

  • Axe 1: 110º/seg
  • Axe 2: 110º/seg
  • Axe 3: 110º/seg
  • Axe 4: 280º/seg
  • Axe 5: 280º/seg
  • Axe 6: 280º/seg

Robot Applications:

  • Arc welding
  • Handling of small parts
  • Process applications

Applications

Ark kaynağı , Boyama , Parçaların yüklenmesi ve boşaltılması , Parçaların taşınması
