Fanuc MIG/MAG arc welding system Arcmate 120iL on linear track and two rotary positioners

Yok

Fanuc arc welding system year 2005 with CE marking consisting of:

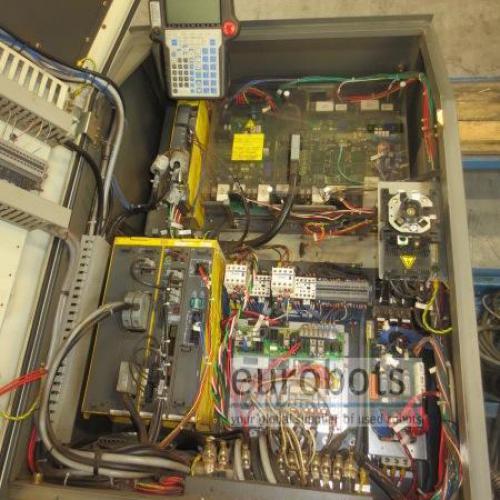

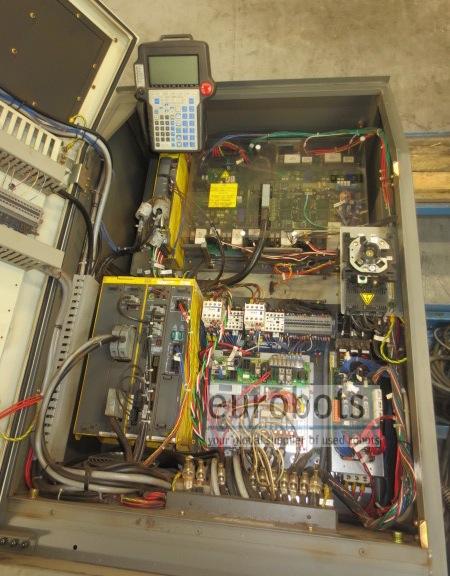

- 1 x Fanuc Arcmate 120iL with RJ3iB controller, 9 axis system

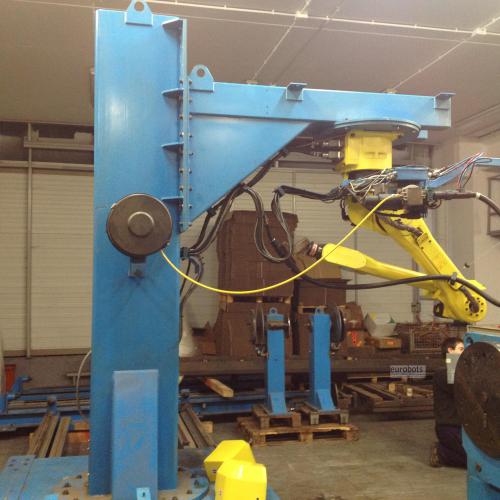

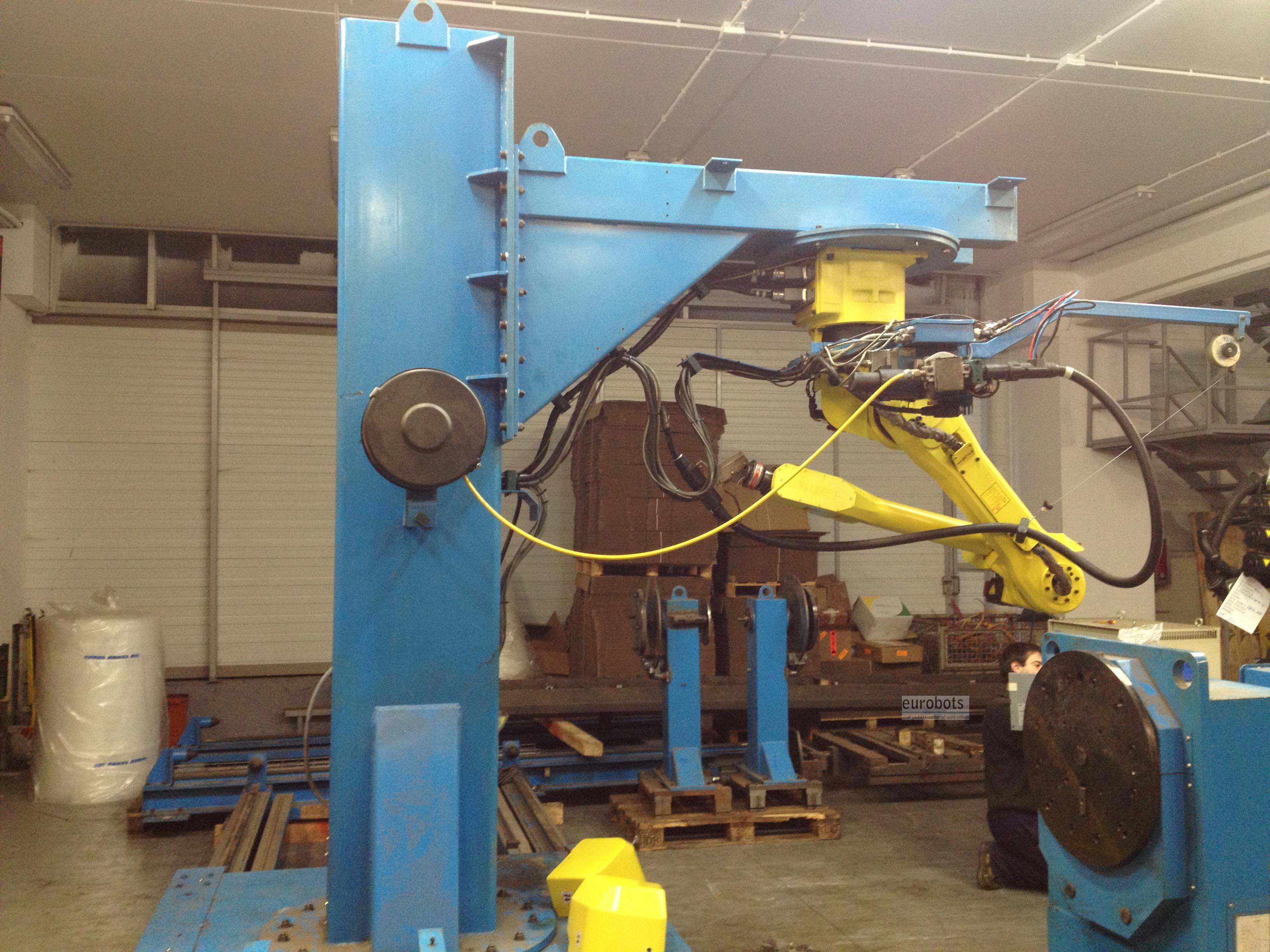

- Linear track, servocontroller, robot inverted, 8124 mm hub

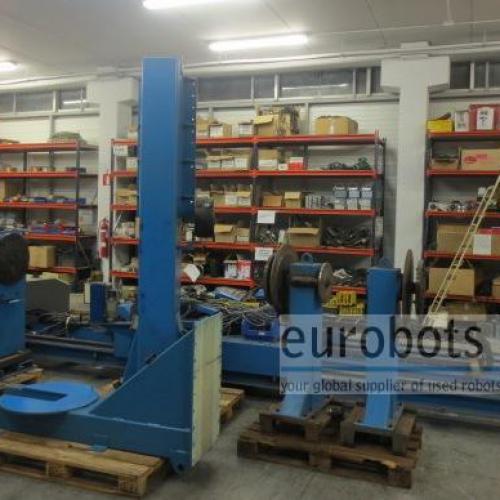

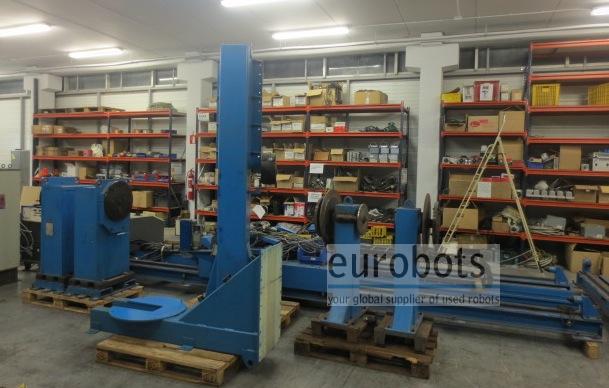

- 2 x servocontrolled rotary positioners placed along the linear track, head-tailstock distance in meters 6 and 4.9 meters respectively. Max payload: 300 kg. Fixtures dimensions in mm: 6000 x 1800 and 4900 x 1800

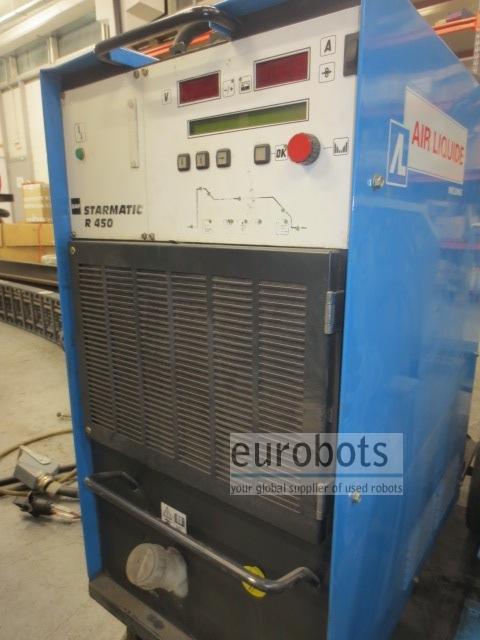

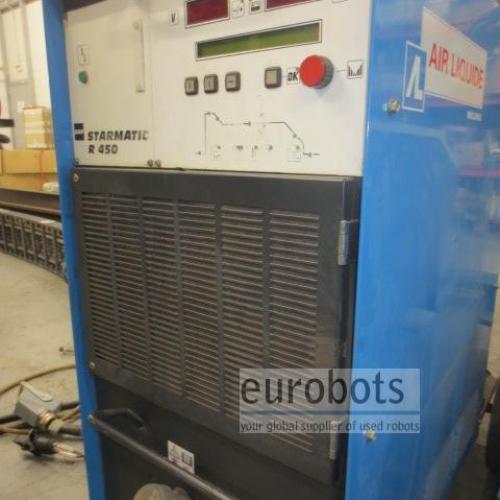

-1 x Air liquide synergic welding power source, Starmatic R450, 450 A power. Push-pull welding torch, anticollision

- 1 x torch cleaning and cutting station

- Light barriers, safety beams

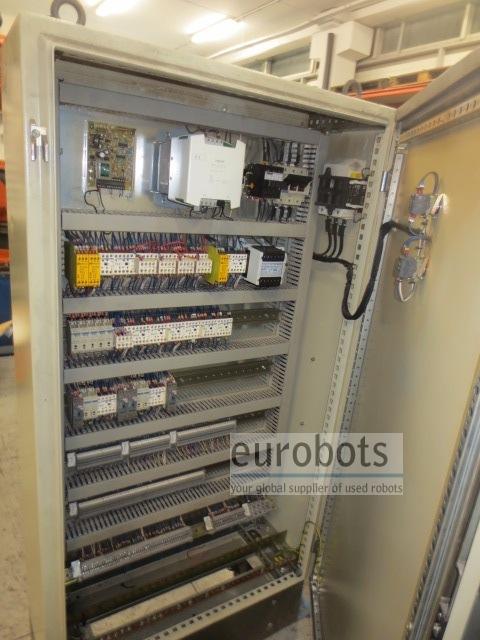

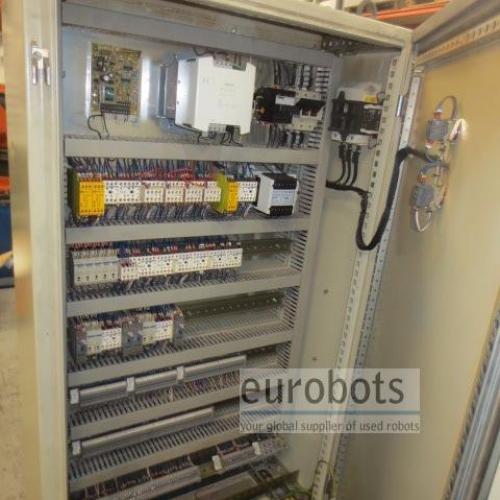

- Operation panel board
