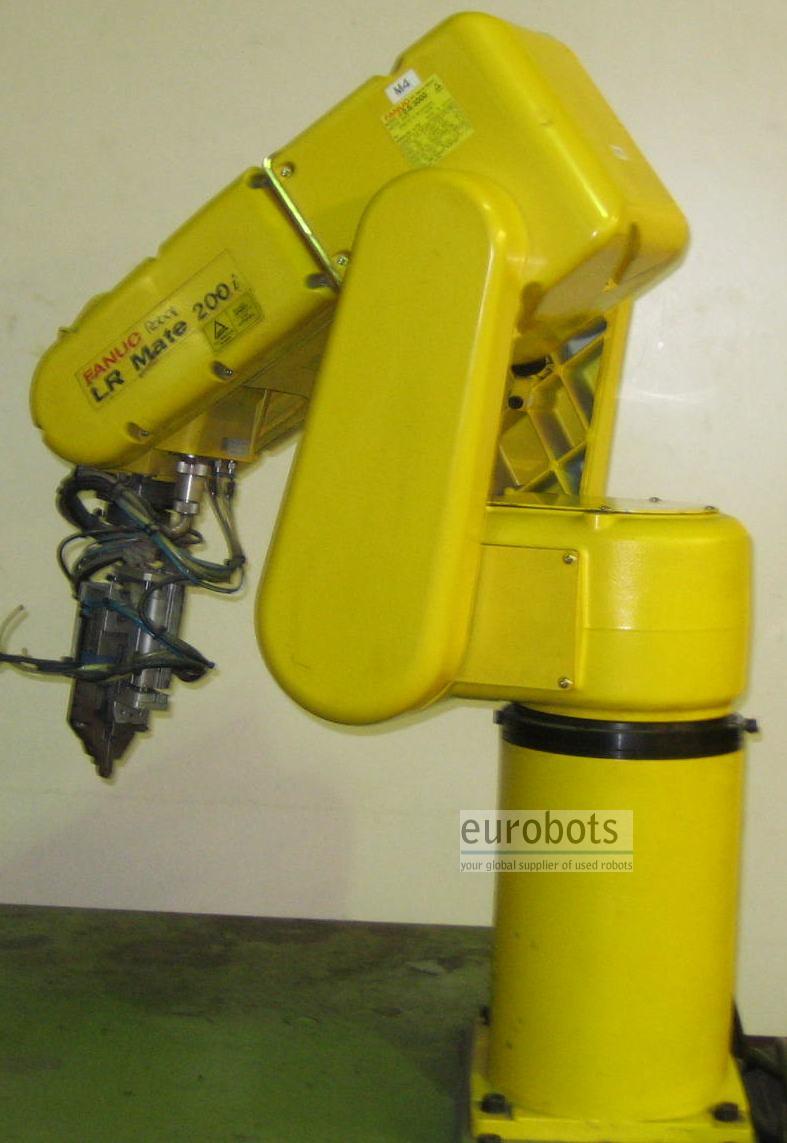

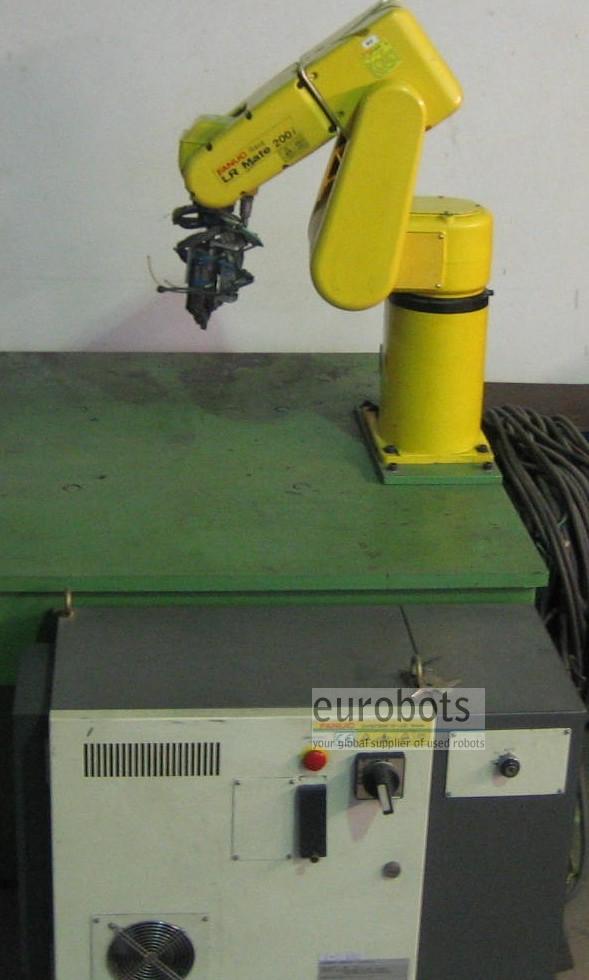

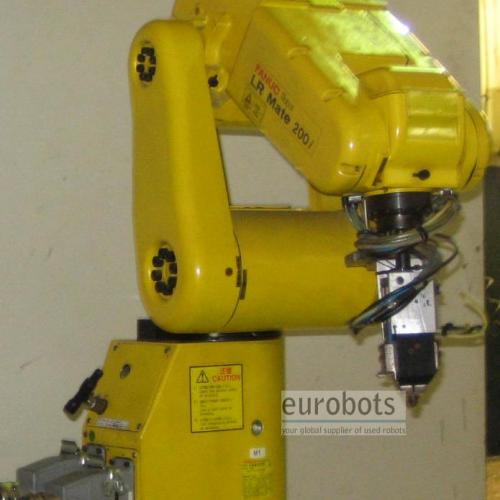

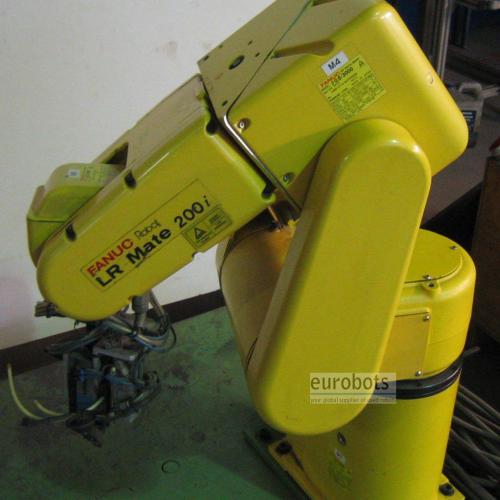

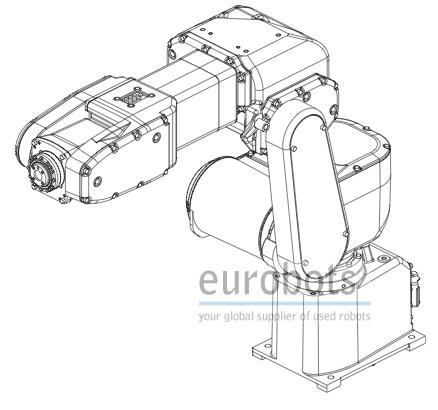

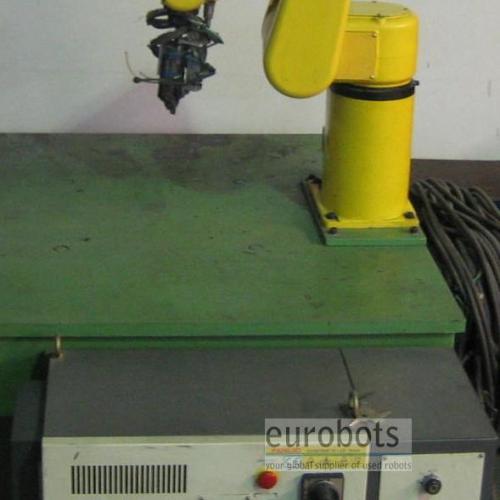

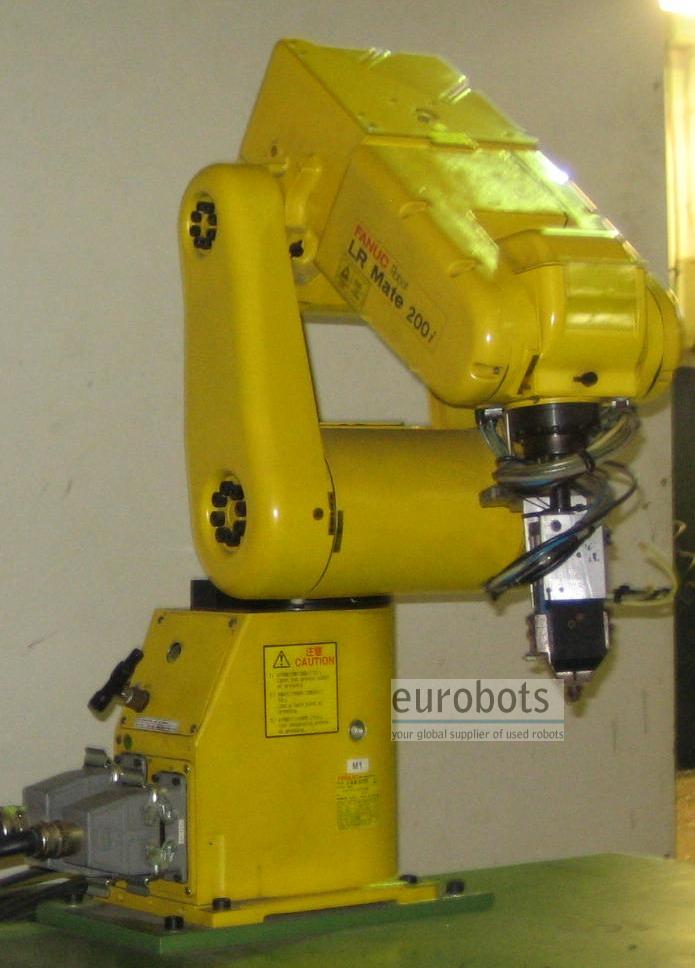

Fanuc LRMate 200i

Yok

Year 1999. Equipped with the Rj2 controller.
The LR Mate series is FANUC Robotics electric servo-driven family of mini robots designed for precision machine load/unload, material handling, material removal, assembly, and lab testing applications. The robot’s small size, dexterity and high speed make it the perfect solution for a wide variety of industrial and commercial applications.

Features :

* Axes speeds of up to 480 degrees/sec.
* End effector connector built into the wrist
* Integral, internally mounted solenoid valve pack
* Fail-safe brakes on axes 2 and 3

Robot Info

    * Maximum Load of Robot: 3Kg.

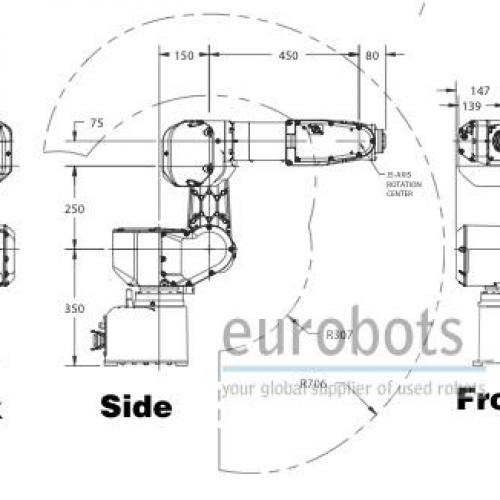

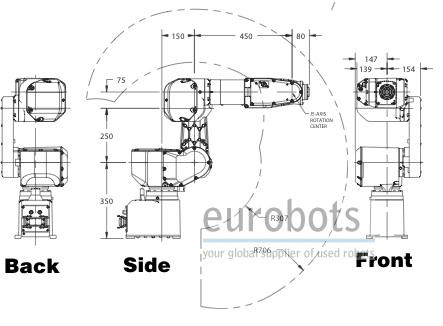

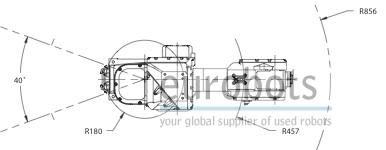

    * Maximum Reach: 856 mm.
    * Repeatability: 0,04 mm.

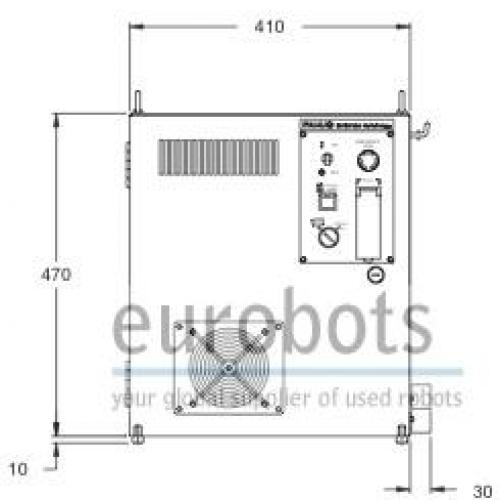

    * Controller: Rj2

Robot Motion Speed:

    * Axe 1: 140º/seg
    * Axe 2: 150º/seg
    * Axe 3: 160º/seg
    * Axe 4: 400º/seg
    * Axe 5: 330º/seg
    * Axe 6: 480º/seg

Robot Applications:

    * Machine load/unload
    * Material handling
    * Testing and sampling
    * Electronics/Cleanroom
    * Parts cleaning/washing
    * Assembly
    * Material removal
    * Packing
    * Education


Applications

Parçaların yüklenmesi ve boşaltılması , Parçaların taşınması , Parçaların montajı

Pictures

Videos

Diagrams
