Year 2001. Equipped with the versatile RJ3 controller.

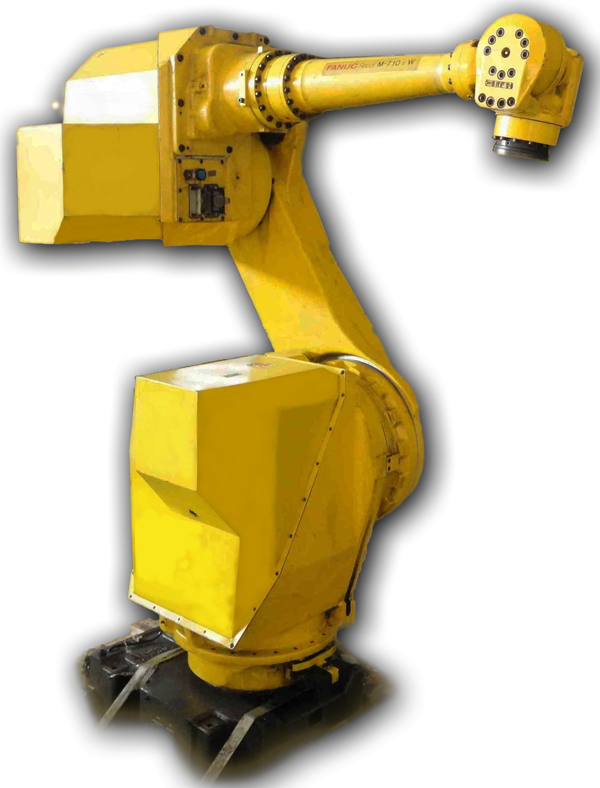

The Fanuc M-710 is a six-axis, modular construction, electric servo -driven robot.
Developed for a variety of manufacturing and system processes, the innovative design of the M-710i robot provides an extremely large work envelope without requiring significant floor space.
The Fanuc M710 is engineered for high speed, application flexibility, and repeatability. They are capable of delivering repeatable precision and unparalleled performance. Floor, invert, wall, shelf, and angle mounting allows the M710 versatility when unusual workpiece access is required. The M710i features an independently tested and certified cleanroom option that exceeds Class 100 cleanliness requirements. An optional sever dust and liquid protection package allows the M-710i and the M-710iW to operate in a variety of harsh environments.
• The Fastest Motion Speed in this Class Robot
• Shortened Cycle Time is supported by Introducing Advanced
Motion Control Technology(Turbo Move, Vibration Control...)
• Heavy Wrist Payload
• Quick and Smooth Acceleration / Deceleration
• High Wrist Allowable Moment

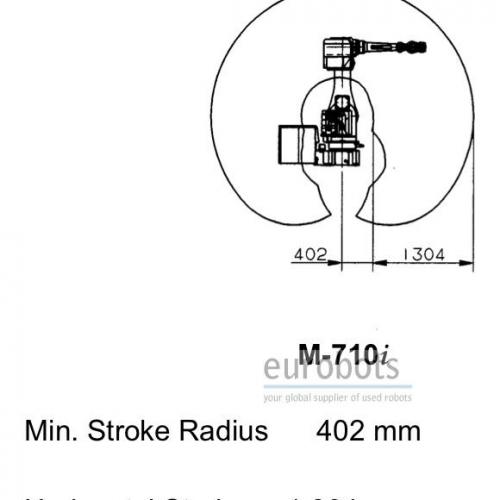

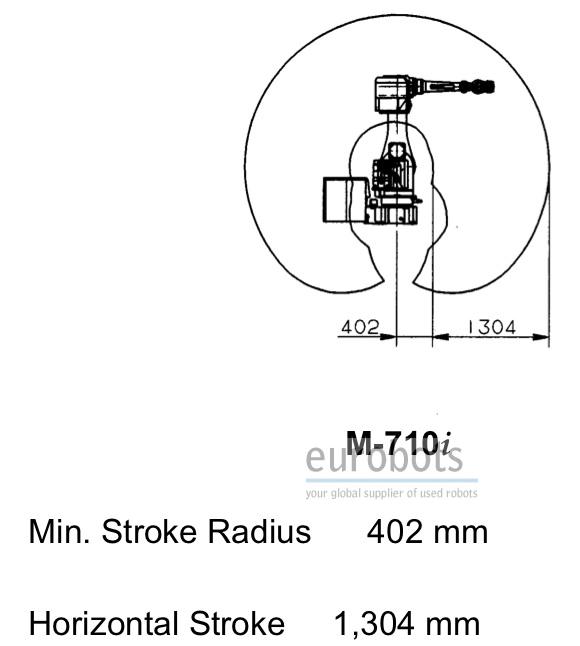

• Work Envelope that Works Close into the Robot
• Water Proof of J3 Arm and Wrist
• Water Proof of the whole Robot
by Severe Dust/Liquid Protection Package
The Robot can be installed on the Floor or Wall, Suspended from the Ceiling or Inclined at any Angle
By Work Envelope that works close into the Robot and Flexible Motion
with Flip Over, Peripheral Equipment can be installed under High-density
conditions and Total System can be built in compact

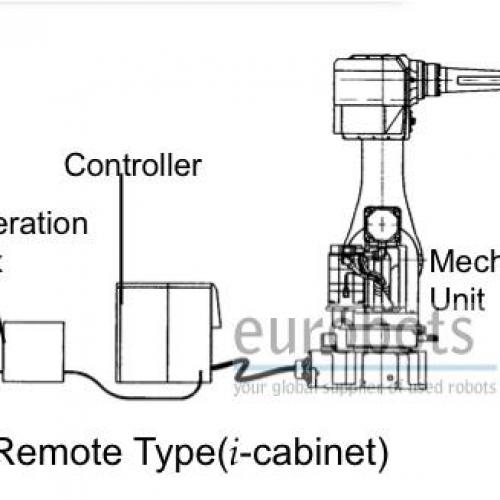

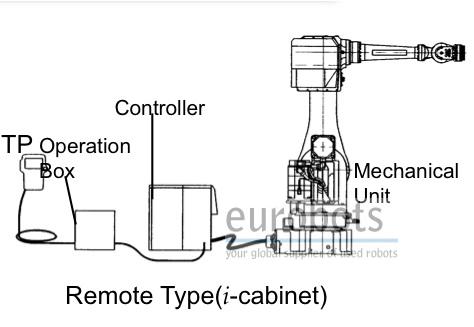

The advanced technology of the Fanuc R-J3 controller makes it a proven, reliable third generation controller. The open architecture features and process capability improve application and motion performance while simplifying system integration. Fanuc's unique plug-in option allows flexibility for application specific configurations.
* 32-bit dual processor architecture (separate motion and communication) with real-time clock/calendar
* Built-in Ethernet (10BaseT)
* FTP: allows simple file transfers to a variety of host platforms
* Ethernet Controller Backup/ Restore: provides backup and/or restore of the robot Controller memory image
* Three RS-232 ports (one can be configured as RS-422)

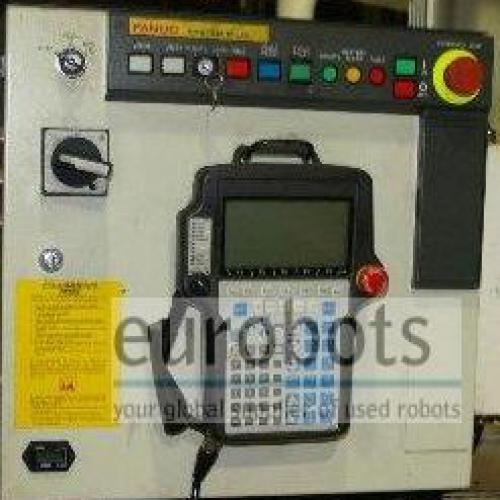

* Teach Pendant: Back-lit LCD, multi-function

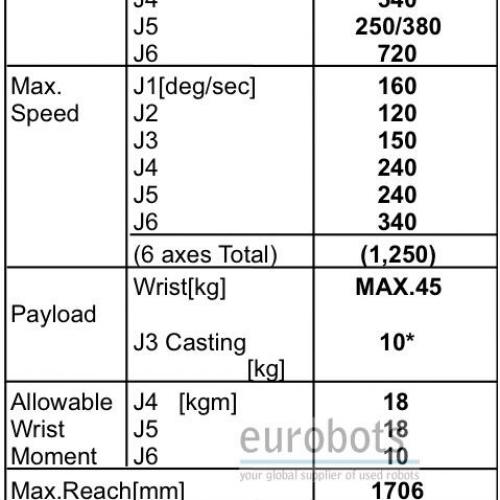

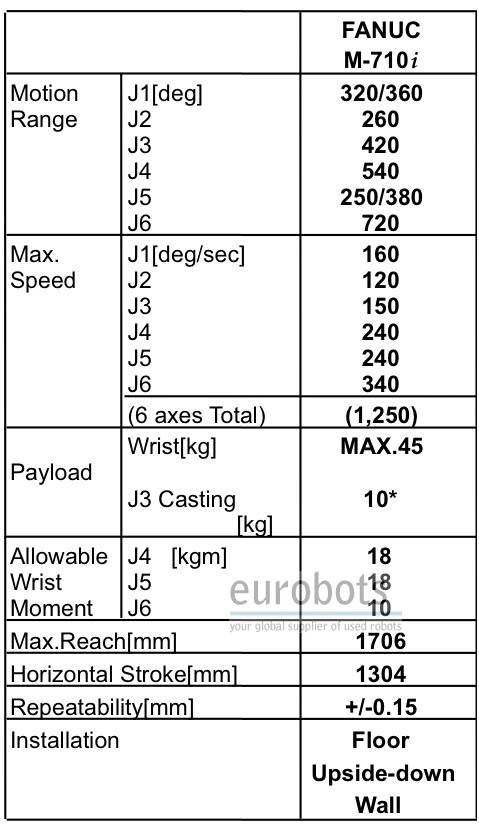

* Maximum Load of Robot: 45 Kg.
* Number of axis: 6
* Maximum Reach: 1706 mm.
* Repeatability: 0,15 mm.
Robot Motion Speed:
* Axe 1: 160º/seg
* Axe 2: 120º/seg
* Axe 3: 150º/seg
* Axe 4: 240º/seg
* Axe 5: 240º/seg
* Axe 6: 340º/seg
Axis motion ranges
* Axe 1: 320/360º
* Axe 2: 260º
* Axe 3: 420º
* Axe 4: 540º
* Axe 5: 250º
* Axe 6: 720º
