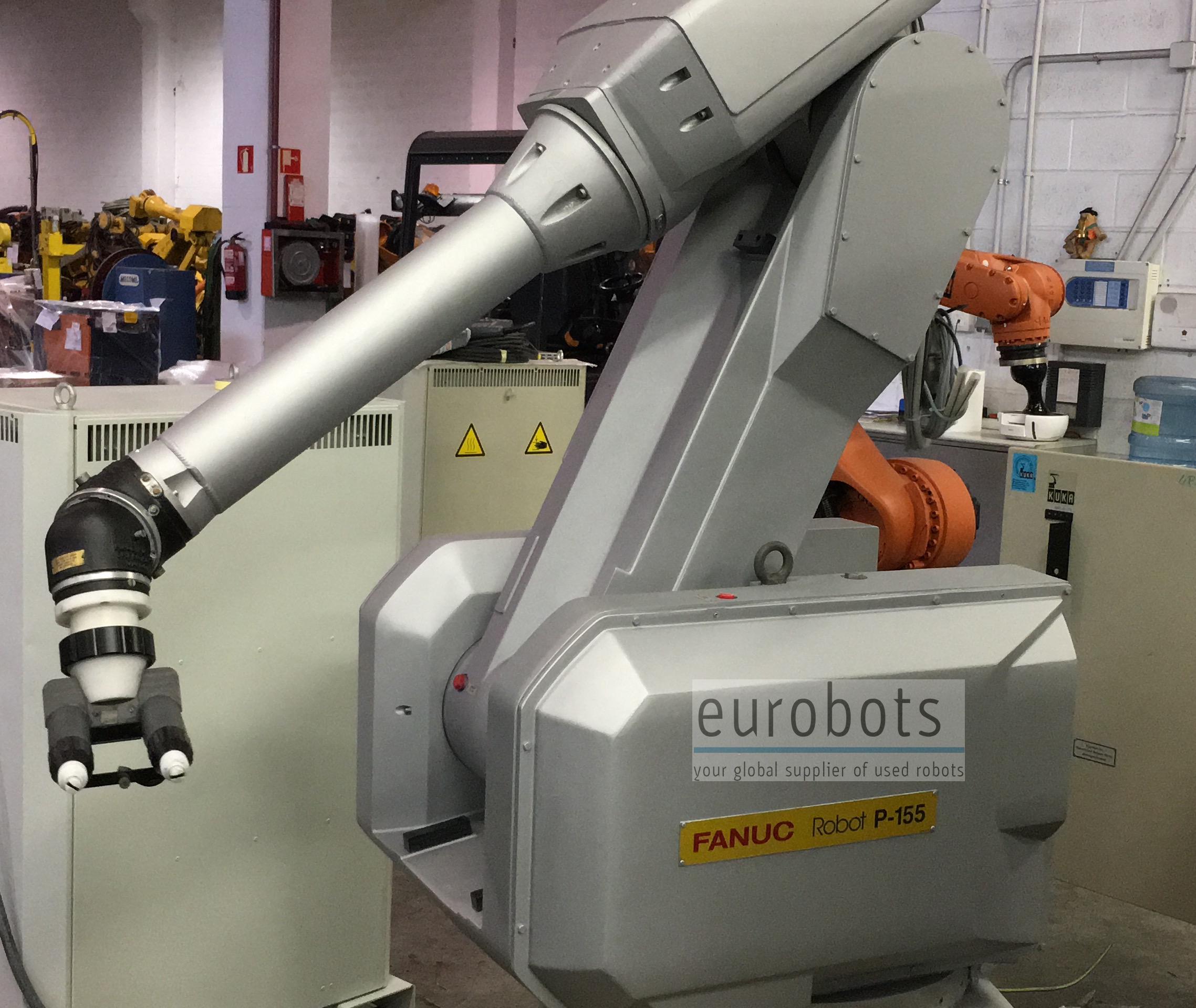

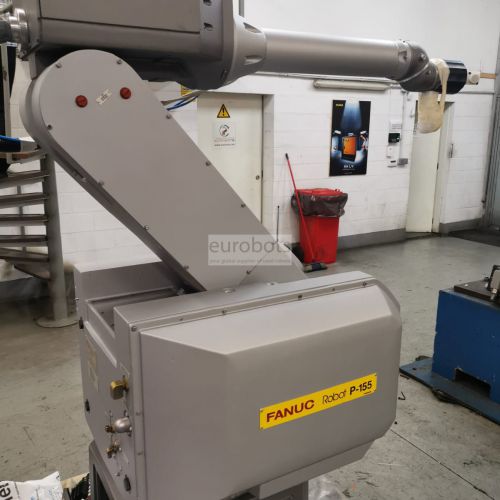

Fanuc P-155 paint

Explosion proof painting robot, CE certified. Equipped with the RJ3iB controller.

The FANUC P-155 painting robot is designed for paint finishing and hazardous environment applications. The high-speed wrist and user-friendly setup make this reliable robot ideal for general industrial painting and coating, automotive painting and surface finishing, sealing, and hazardous spray applications. The FANUC P-155 can handle tracking or stationary systems.

The large work envelope and flexible payload option allows the robot to operate in a wide range of painting environments. A low arm mass and rigid design allows precise positioning and high speeds. The FANUC P 155 is FM approved to operate in the harshest painting environments, including Class 1 and 2, Division 1, Groups C, D, E, F, and G.

The maintenance required on the P-155 painting robot is minimized by brushless AC servo motors, external access to lubrication points and sealed bearings and drives. A hollow joint construction encloses all cable routing to eliminate snagging and improve cleanliness.

The FANUC P-155 robot is capable of a 1200mm per second linear painting speed.

The Fanuc R-J2 controller incorporates the most advanced and proven technology to improve total system performance while simplifying overall cell and system integration. The Fanuc RJ2 controller provides the optimal level of performance with any level of system requirements.

Robot Info

    * Maximum Load of Robot: 7 Kg.
    * Number of axis: 6
    * Maximum Reach: 2613 mm.
    * Repeatability: 0.5 mm.

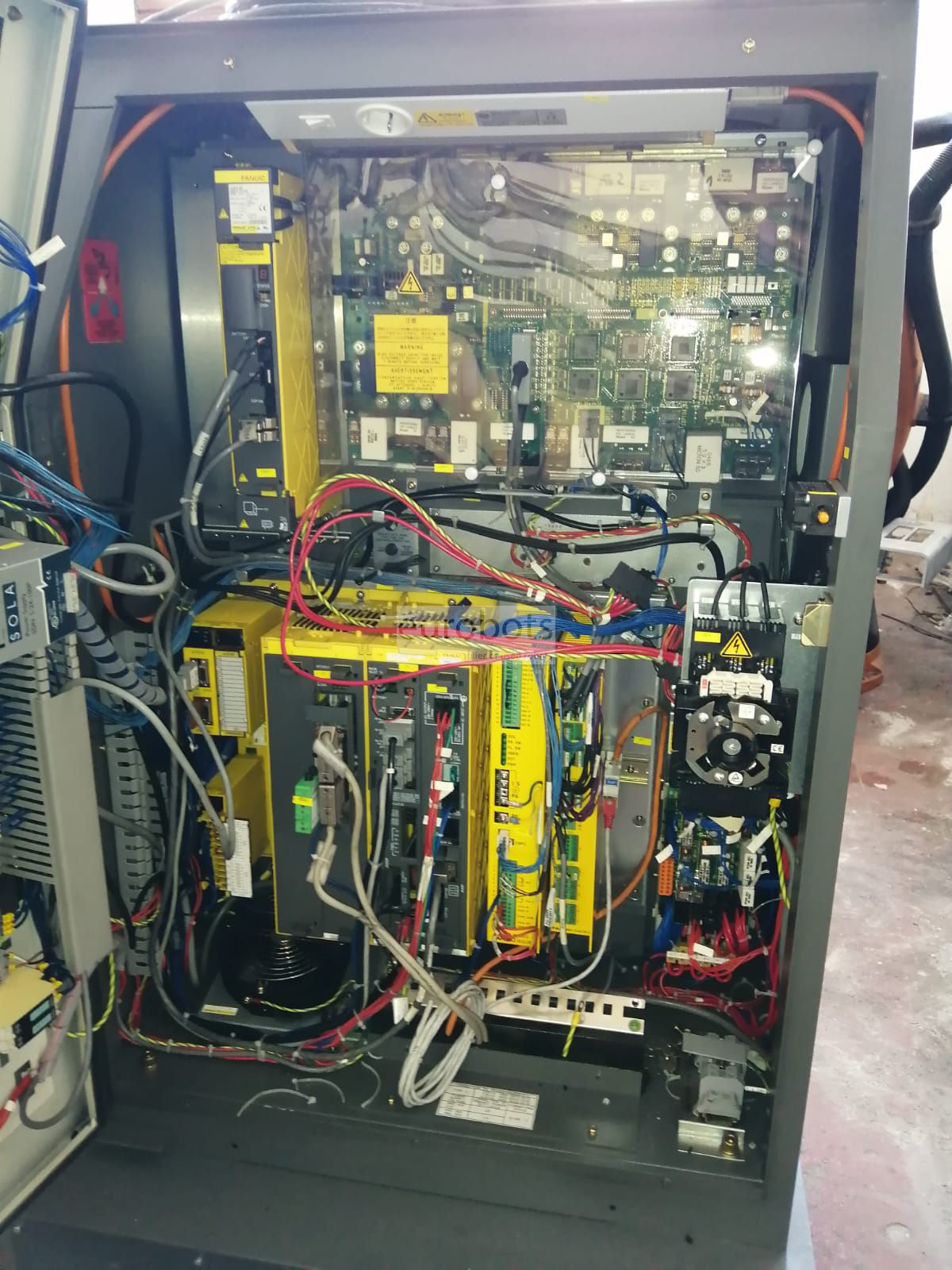

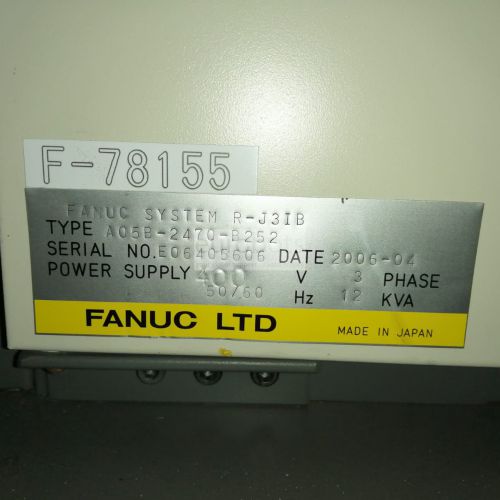

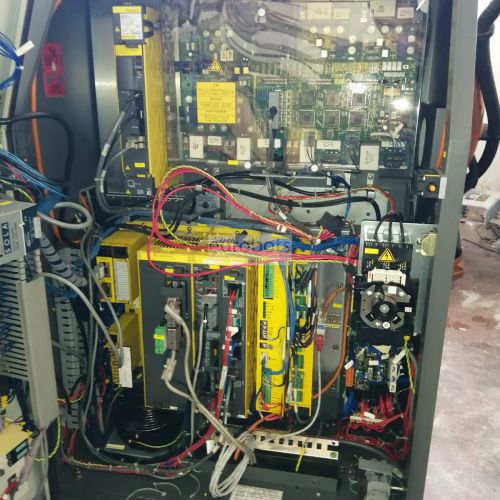

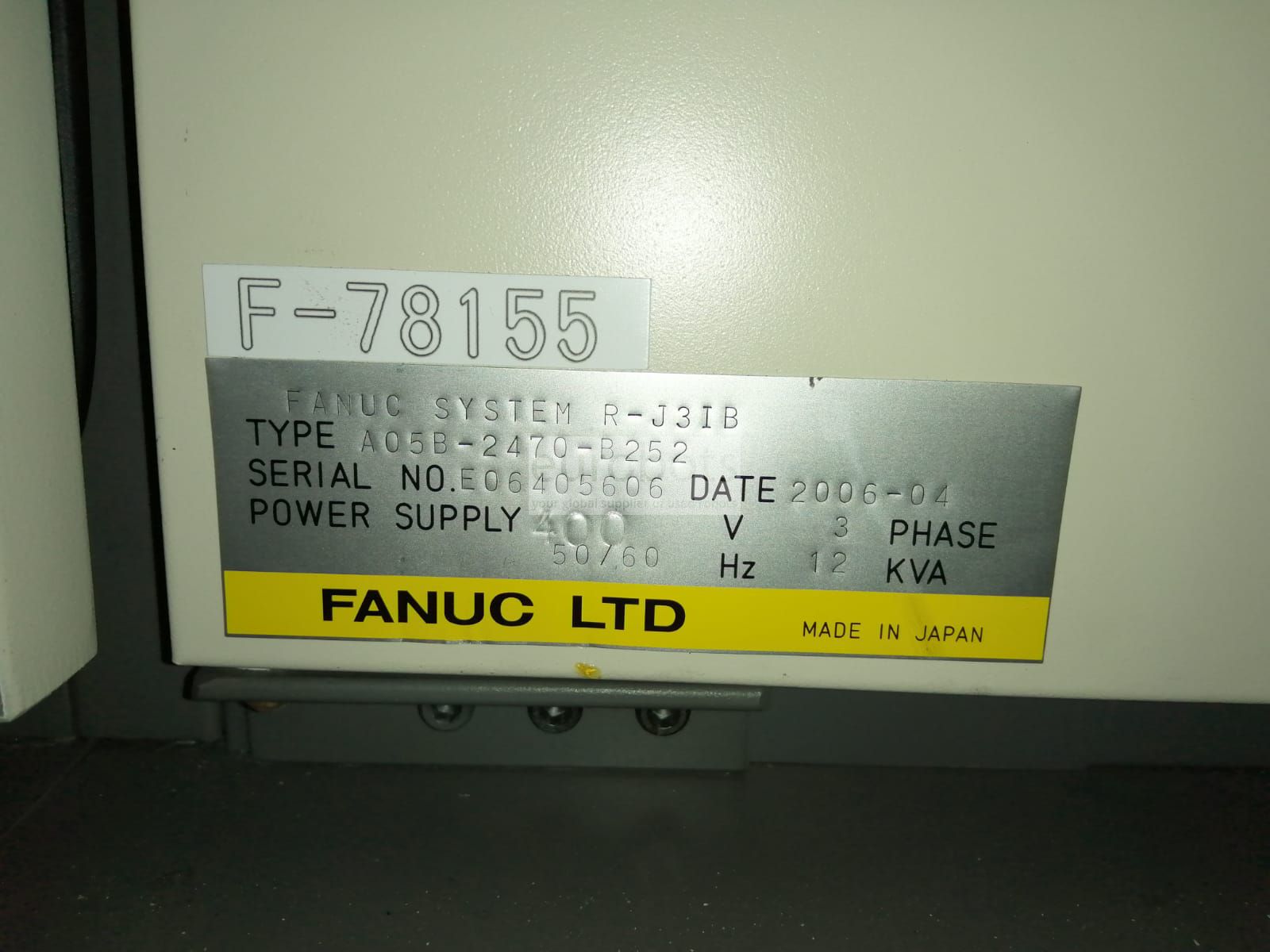

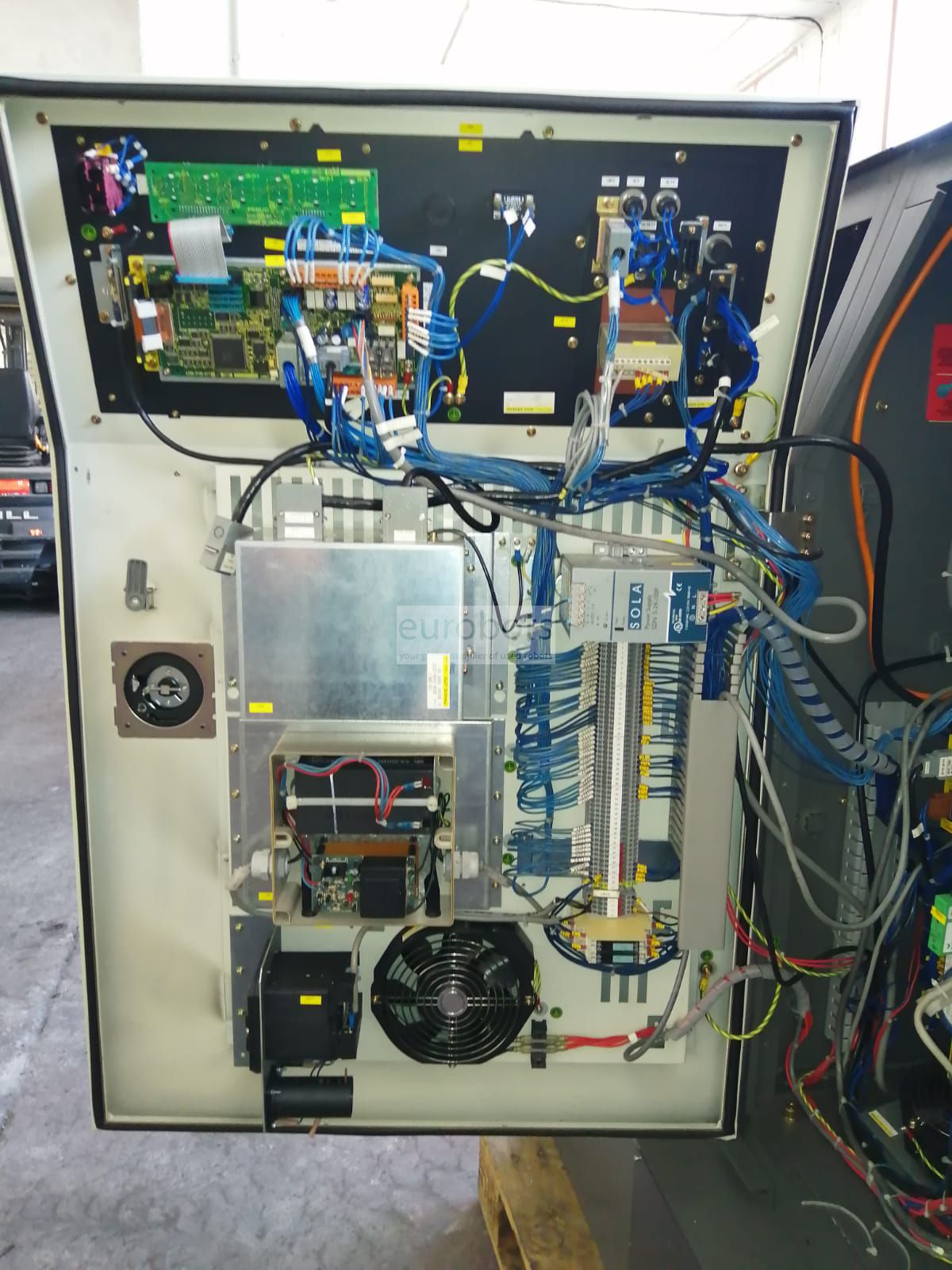

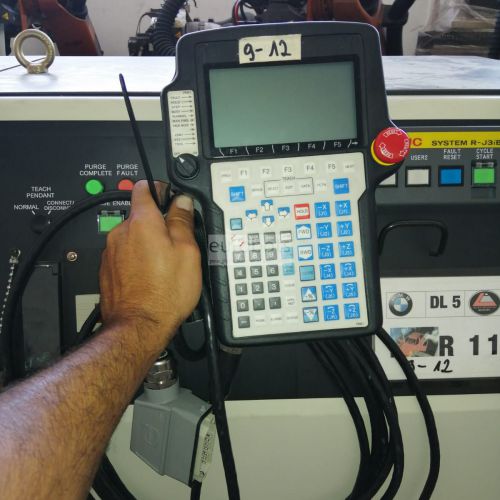

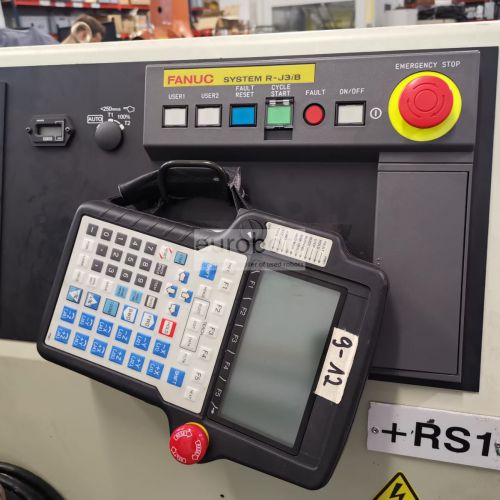

    * Controller: RJ3iB Paint

Robot motion speed

    * Axis 1: 90º/s
    * Axis 2: 125º/s
    * Axis 3: 140º/s
    * Axis 4: 250º/s
    * Axis 5: 340º/s
    * Axis 6: 570º/s

Axis motion ranges

    * Axis 1: +-210º
    * Axis 2: +-135º
    * Axis 3: +-167º
    * Axis 4: +-576º
    * Axis 5: +-576º
    * Axis 6: +-576º


Applications

Boyama
