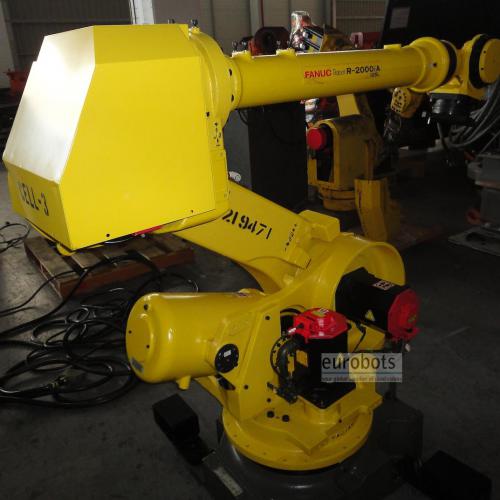

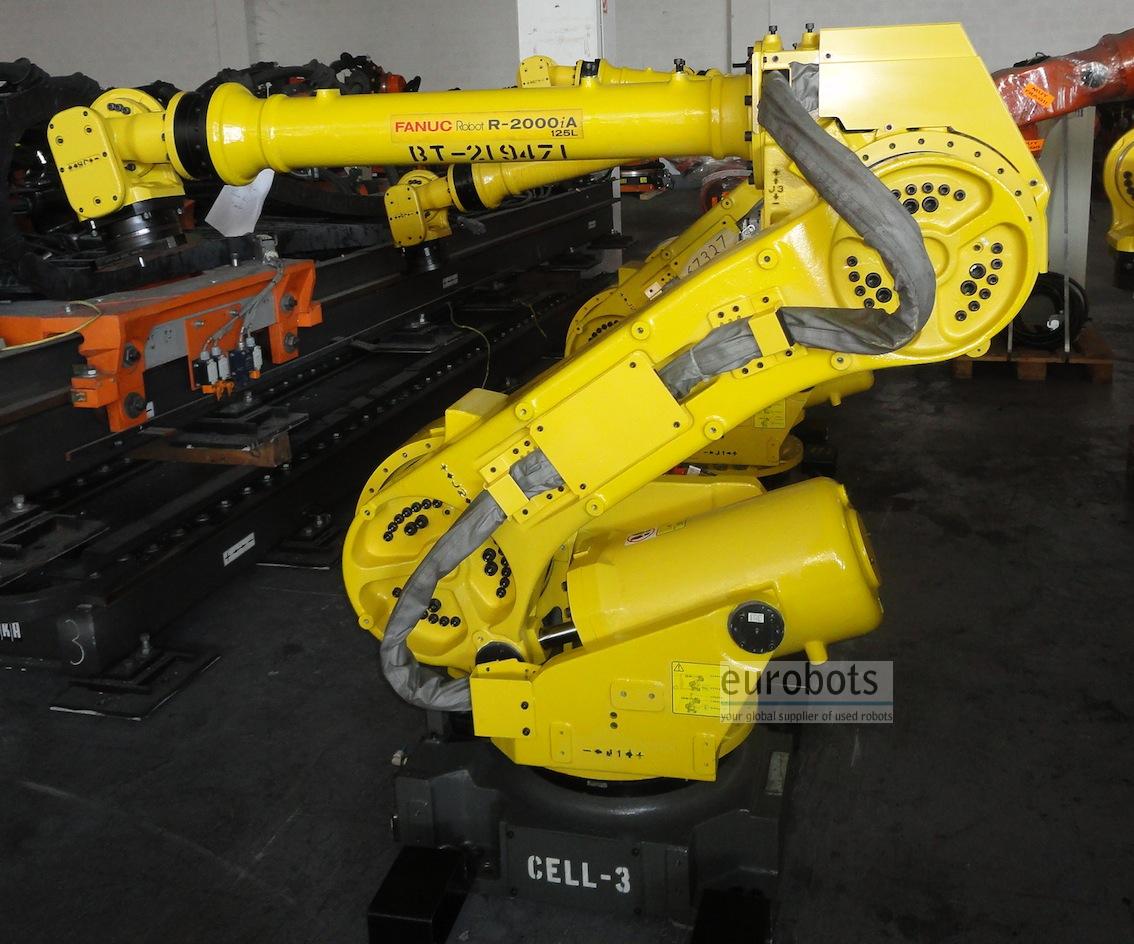

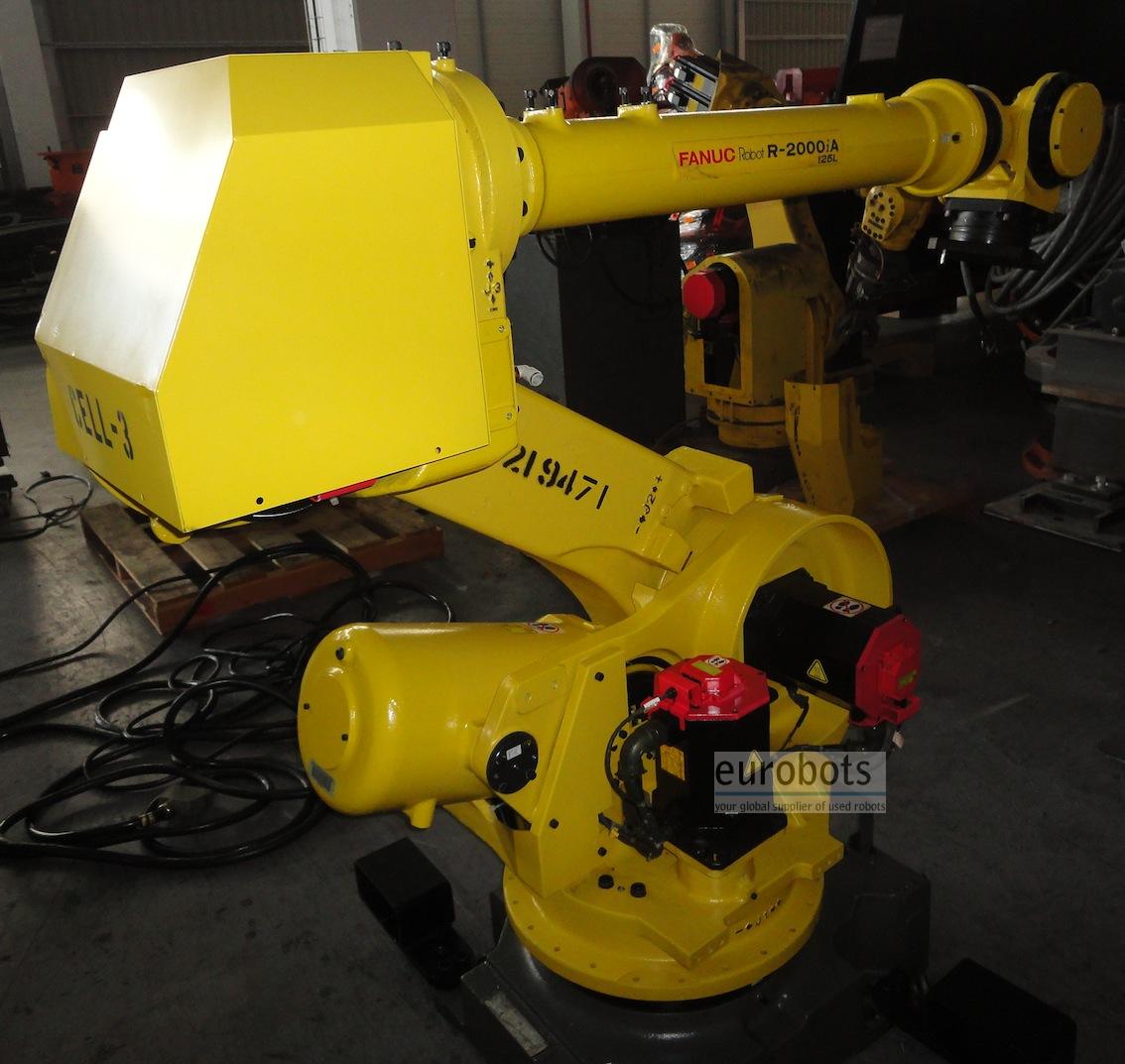

Fanuc R-2000iA-125L

Yok

The largest work envelope (3005mm) of this series, combined with the flexibility make the Fanuc R-2000iA 125L a valuable addition to Fanuc robotics. This six-axis industrial robot offers high performance and the ability to handle medium payloads(Max125kg). The R-2000iA 125L features high reliability and maintainability, along with the R-J3iB robot control system.

The versatility of the Fanuc R-2000iA 125L has a slim profile design and the routing of the process cables through the arm. Counterweights were also eliminated to increase the overall workspace.

Mechanical features

- Large work envelope with ability to reach overhead and behind
- Slim profile design
- RV reducers for all axis
- Elimination of counterweight increases available workspace.
- Process/applications cables routed through the arm
- No motors at wrist

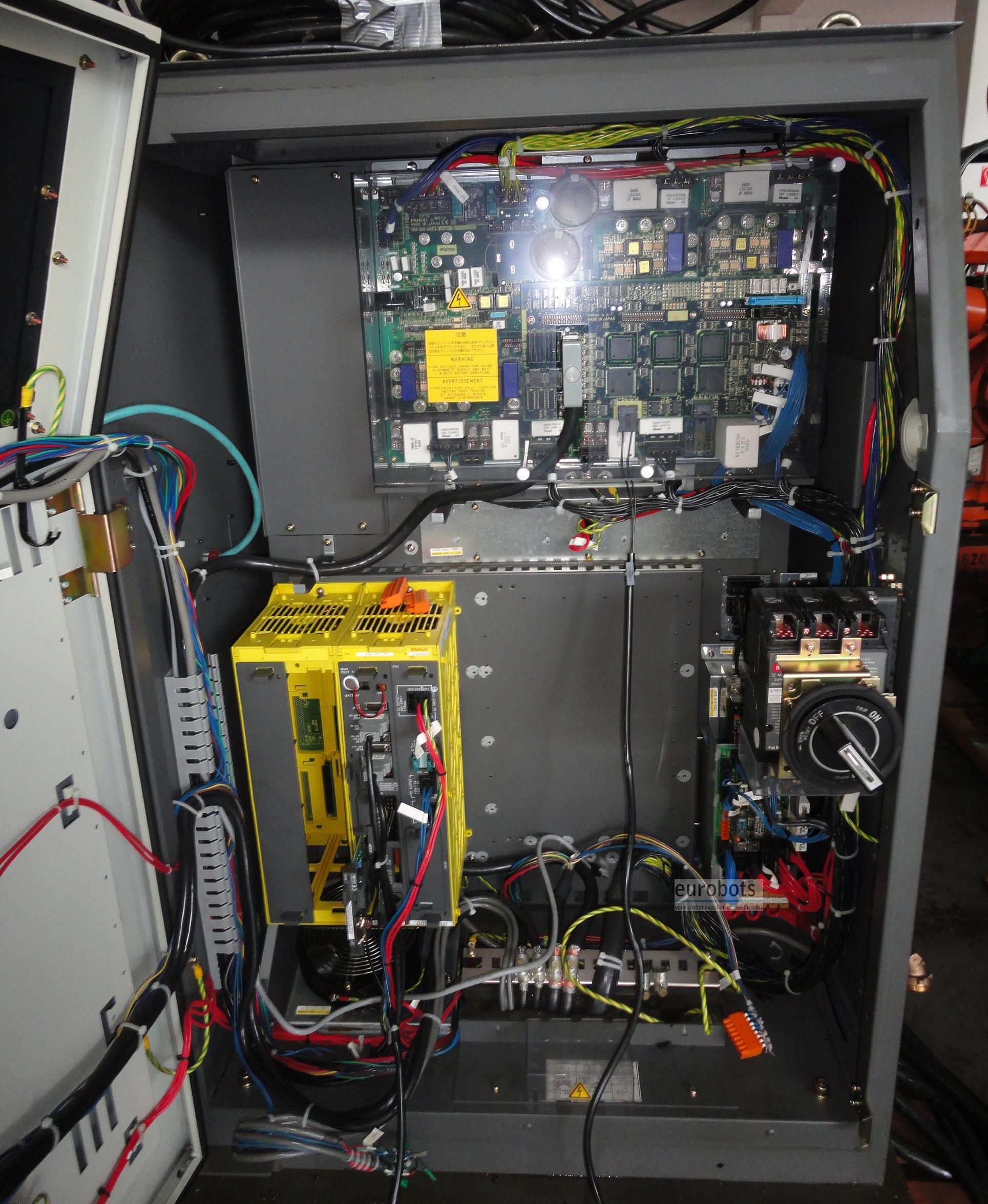

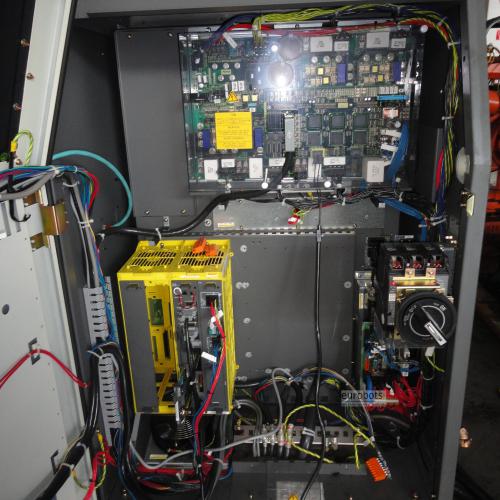

Rj3iB control features

- B size cabinet
- Quick change amplifier
- Fast boot time < 30 s
- PCMCIA Software distribution
- Easy connections to a variety of I/O
- Color teach pendant for even easier programming and custom cell user interface design.



General specs:

  • Number of axis: 6
  • Max. payload: 125Kg
  • Maximum Reach: 3005 mm
  • Repeatability: 0.2 mm
  • Controller:RJ3iB

Robot motion speed:

  • Axis 1: 110º/s
  • Axis 2: 110º/s
  • Axis 3: 110º/s
  • Axis 4: 170º/s
  • Axis 5: 170º/s
  • Axis 6: 260º/s

Robot Applications:

  • General industrial applications
  • Spotwelding and general assembly
  • Part transfer
  • Material removal
  • Dispensing
  • Machine loading
  • Arc welding

Applications

Spot kaynağı , Basın desteği , Paletleme , Parçaların yüklenmesi ve boşaltılması , Parçaların taşınması , Ölçüm , Parçaların montajı , Saplama Kaynak

Pictures

Videos

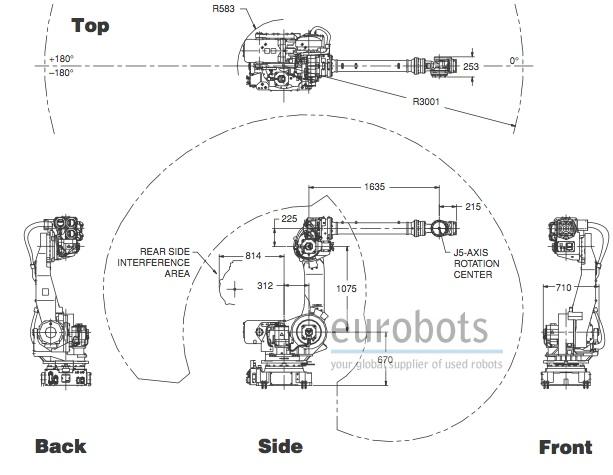

Diagrams
