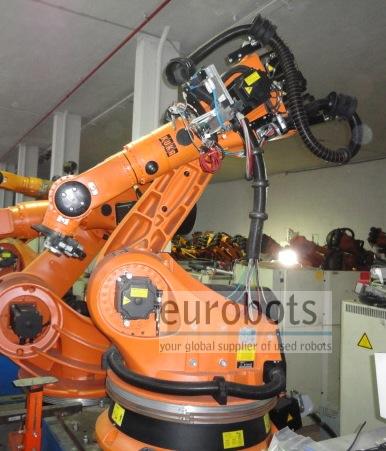

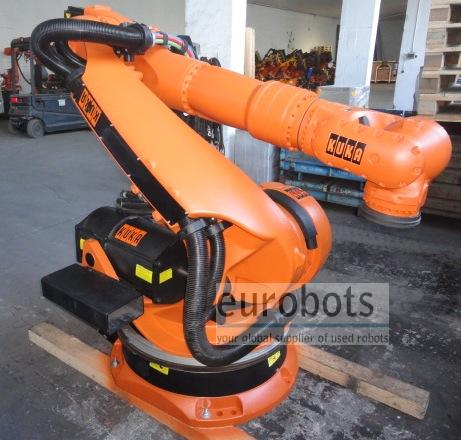

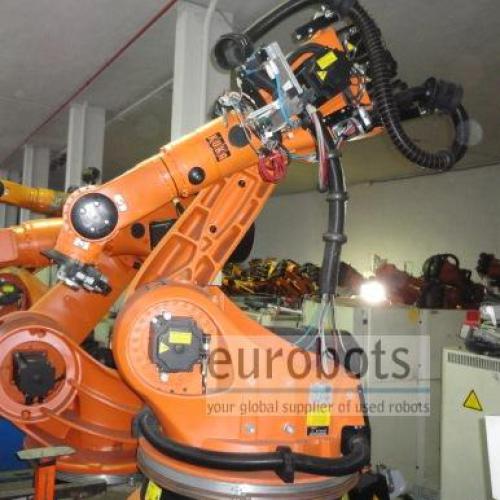

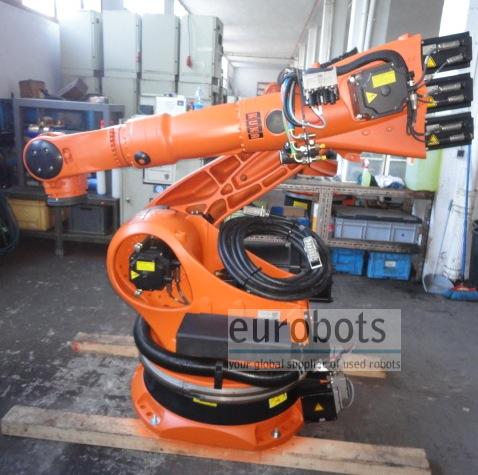

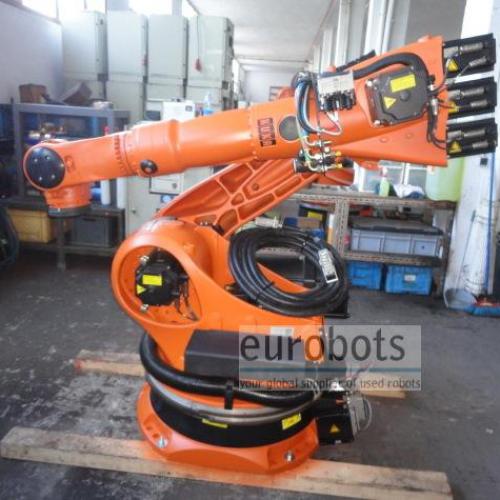

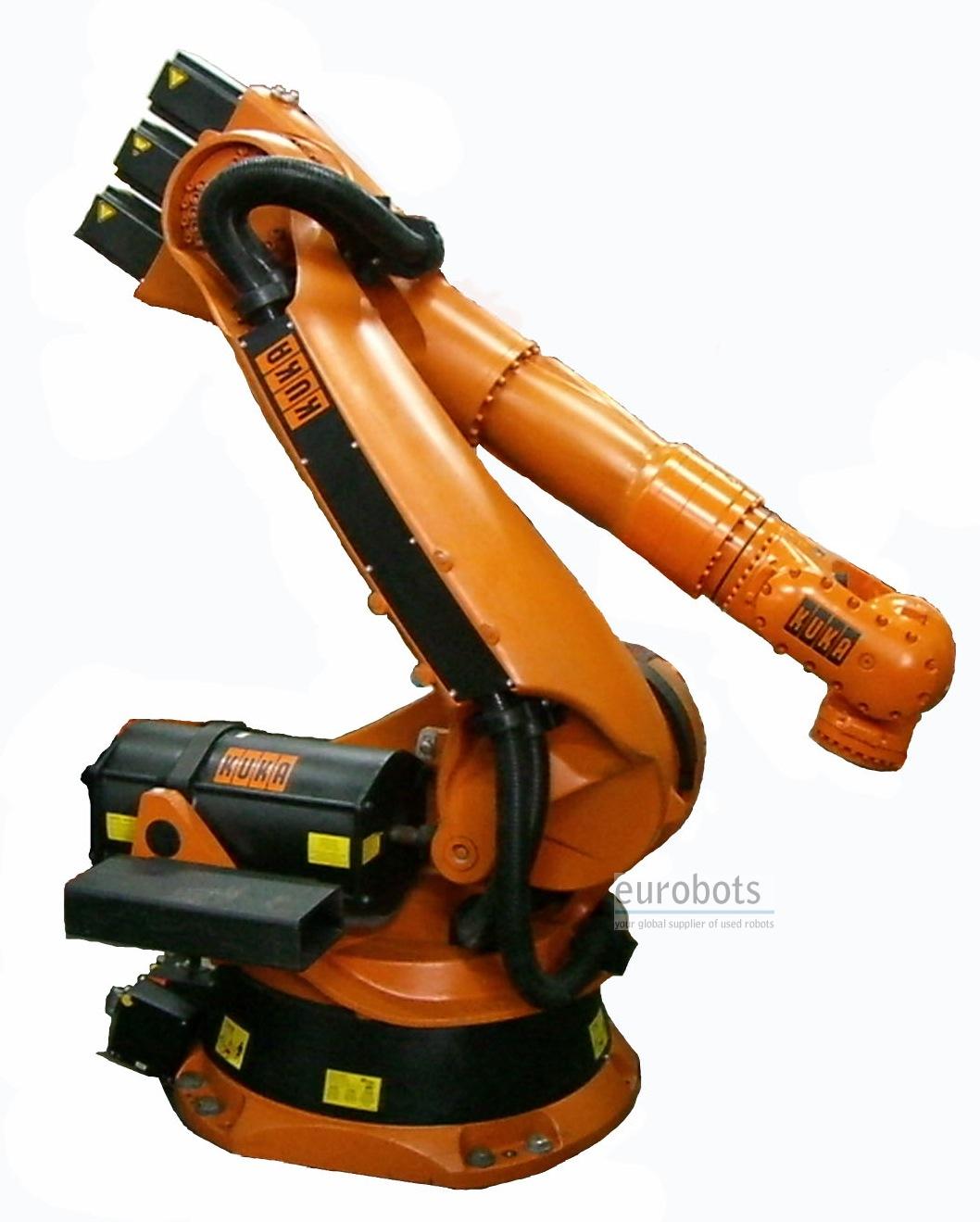

KUKA KR150 180 210 series 2000

KR 150/180/210 bir ilk ?ekilli i? zarf ile usta Movers vardir. Maliyet-etkin uygulanmas? için idealdir. yer tasarrufu sa?layan sistem kavramlari. 2003-2004 yillarinda. KRC2 kontrol yazilim sürümleri 4.1.4 veya 5.2.17.

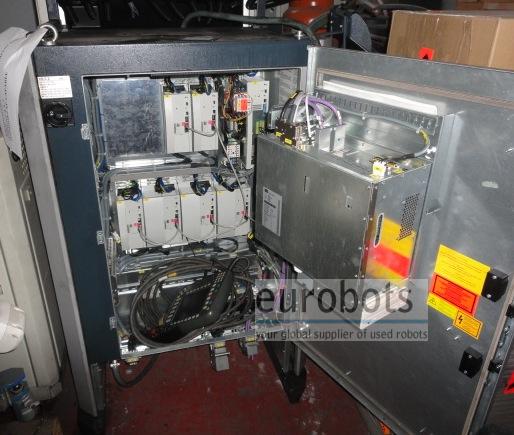

KR C2 features:

* Open, network-capable PC technology
* 2 free slots for external axes
* DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
* Motion profile function for optimal interaction between the individual robot motors and their velocity
* Floppy disk and CD-ROM drives for data backup
* Facilities such as remote diagnosis via the Internet
* Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface

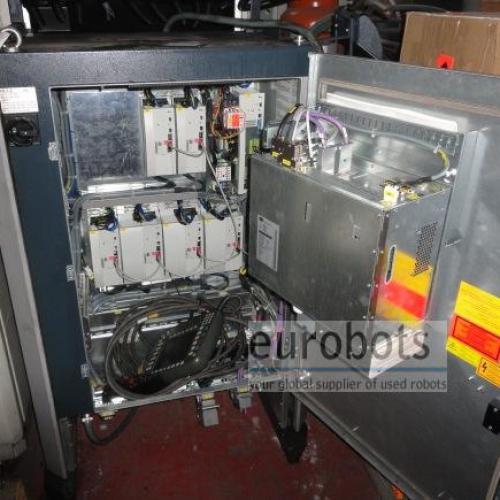

* Compact control cabinet
* Ergonomic KUKA Control Panel (KCP)

Robot Info:

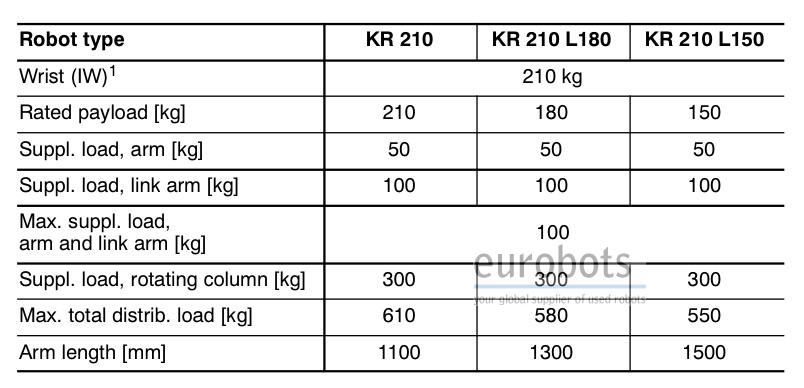

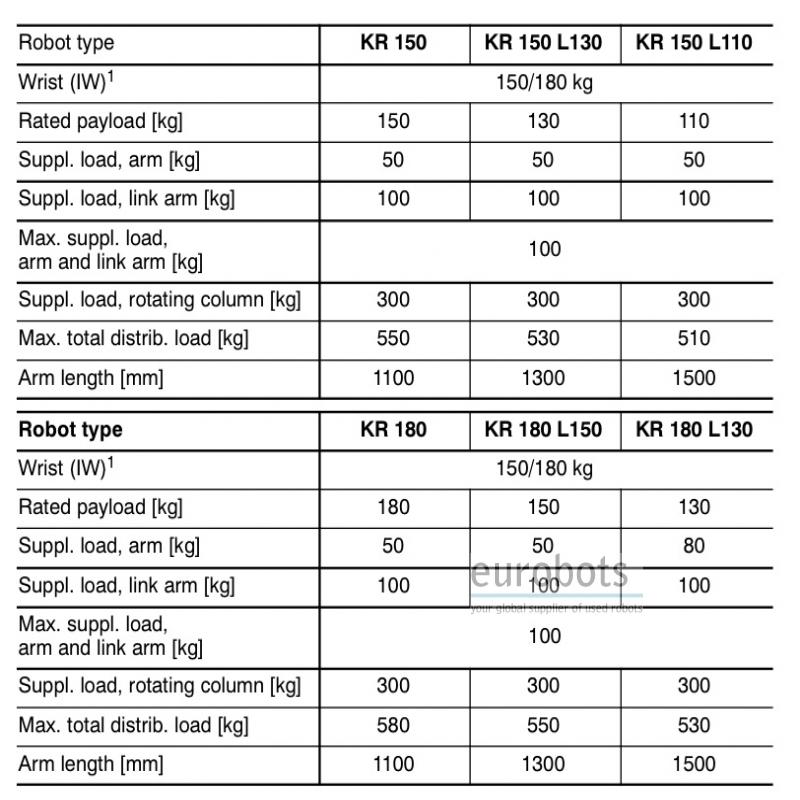

  • Maximum Load of Robot: 150/180/210Kg.

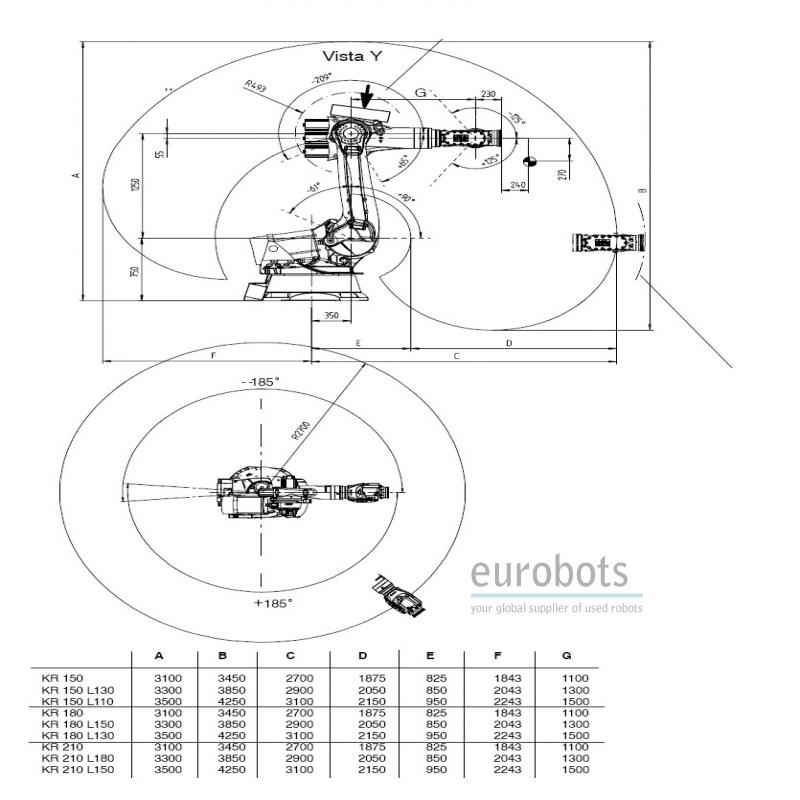

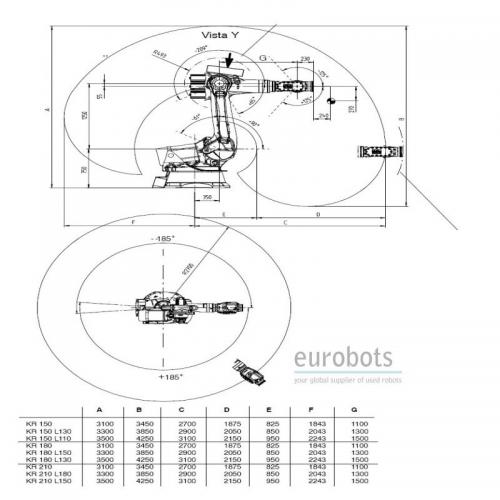

  • Maximum Reach: 2700/2900/3100 mm.
  • Repeatability: 0.15-0.2 mm.
  • Controller: KR C2 under Windows XP

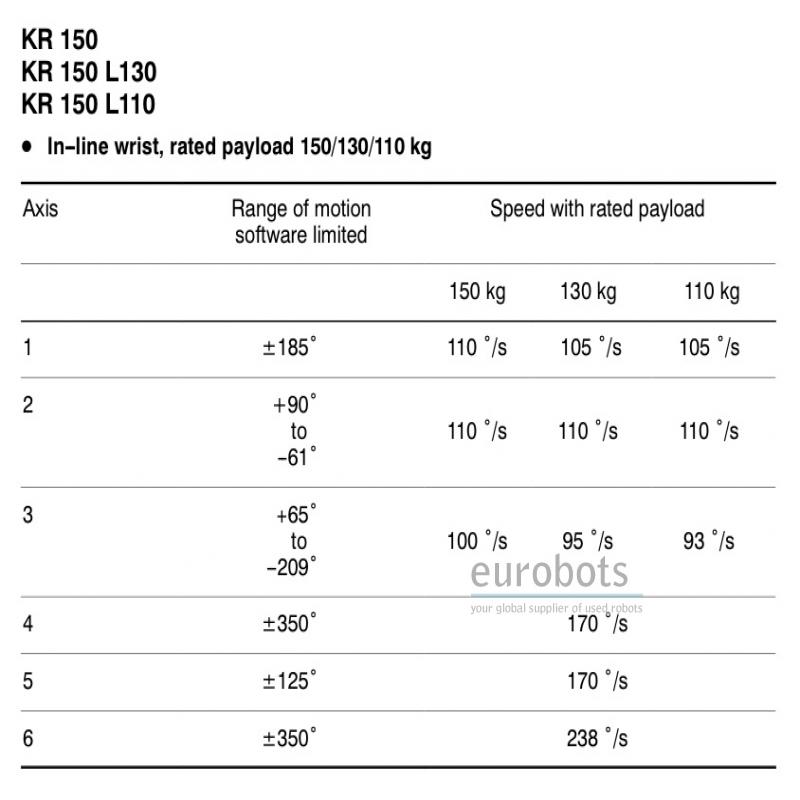

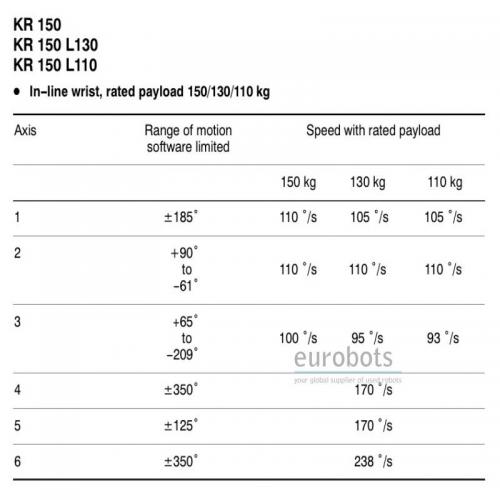

Robot Motion Speed:

  • Axe 1: 105º/seg
  • Axe 2: 110º/seg
  • Axe 3: 95º/seg
  • Axe 4: 170º/seg
  • Axe 5: 170º/seg
  • Axe 6: 238º/seg

Robot Applications:

  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
  • Welding

Applications

Spot kaynağı , Basın desteği , Paletleme , Parçaların yüklenmesi ve boşaltılması , Talaşlı imalat , Parçaların taşınması
