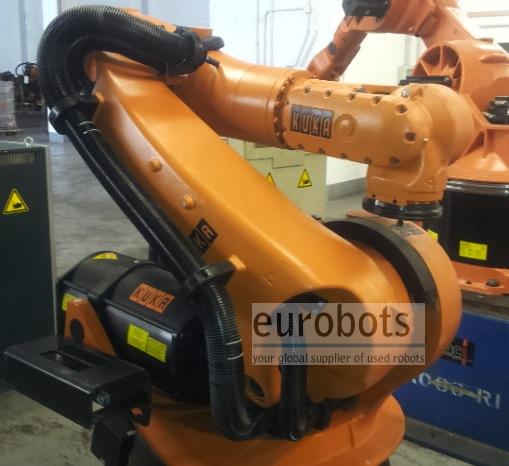

KUKA KR200-2 Comp


Agir yük. KUKA KR100-2 Zorunlu, KR140-2 Zorunlu ve KR200-2: Zorunlu S2000 Kuka robotlar asagidaki KUKA modelleri icermektedir. Bu robotlar popüler S2000 ikinci kusak olusturmaktadir. , Daha hafif ve daha hizli daha güclü bir KRC2 Ed05 kumanda ile donatilmistir.

Features and Advantages

• Uniform control concept for all KUKA robots – from low payloads right up to the heavy-duty category – means reliable planning and interchangeability
• “Plug and play” functionality enables rapid start-up
• Service-proven technology and standard PC components ensure maximum availability with minimum maintenance
• Modular design allows a wide range of customized hardware and software expansions
• Efficient interfaces and high compatibility due to PC-based technology
• Networked controllers that can communicate with each other in real time make it possible for a number of synchronized robots to work together on a single workpiece

Robot Info:

  • Maximum Load of Robot: 200/180/160 Kg
  • Maximum Reach: 2400/2600/2800 mm
  • Repeatability: 0.5

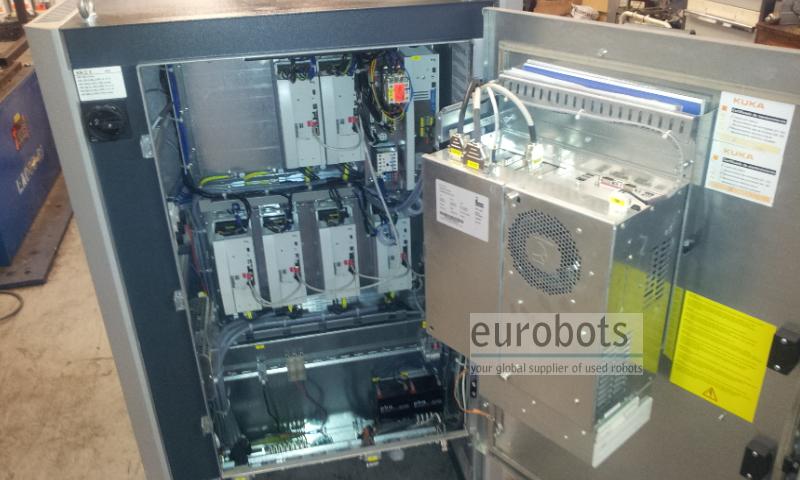

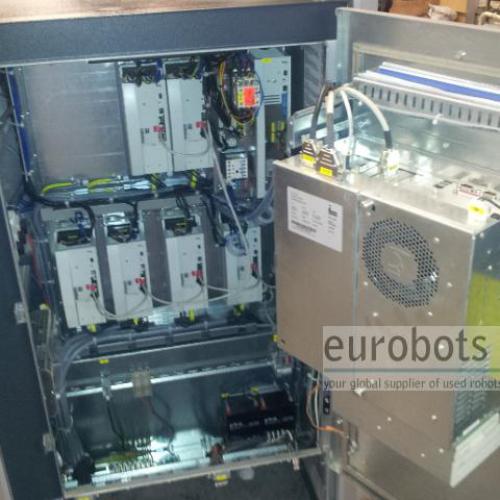

  • Controller: KR C2 Ed05

Robot Motion Speed:

  • Axis 1: 89º/s
  • Axis 2: 85º/s
  • Axis 3: 82º/s
  • Axis 4: 117º/s
  • Axis 5: 120º/s
  • Axis 6: 195º/s

Robot Applications:

  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
  • Welding


Spot kaynağı , Basın desteği , Paletleme , Parçaların yüklenmesi ve boşaltılması , Talaşlı imalat , Parçaların taşınması
