Milling robotic ABB IRB 7600 325/3.1 M2004

Yok

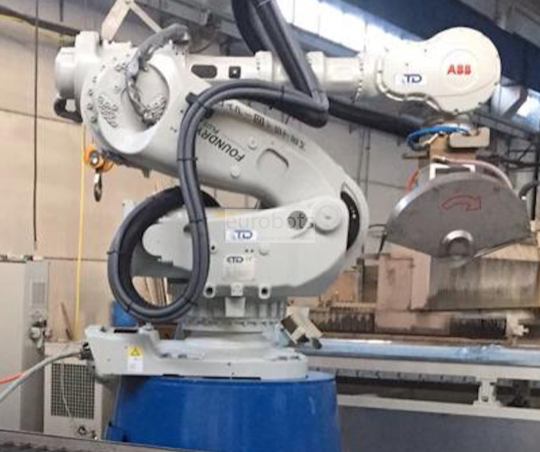

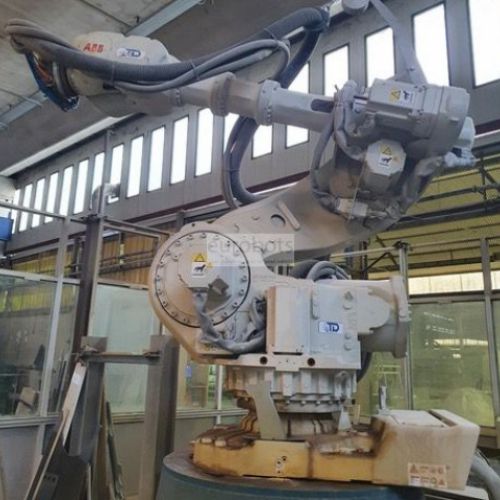

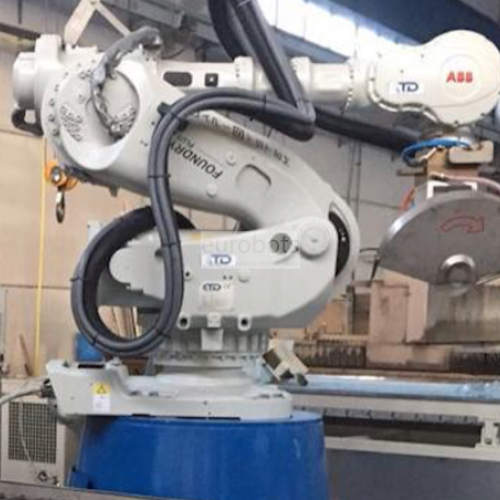

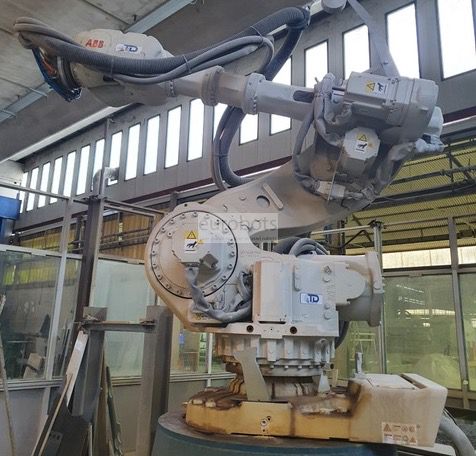

- ABB Robot IRB 7600 M2004 FOUNDRY with IRC5 controller, Year of production:2015 with few hours! ABSOLUTE ACCURACY

325kg payload x 3200mm extension, fully refurbished by our expert technicians.Great condition!

- One spindle n.1 with ES796 della HSD automatic tool changer ( Best in the market, made in Italy)

- One tool rack station with automatic closures for spindles and gripper

- Round toll holder for the cones

- Complete robot licensing software

- One Hexagon TS35.10 tool measurement

- One tilting table with one set of suction cups (and its gripper for handling)

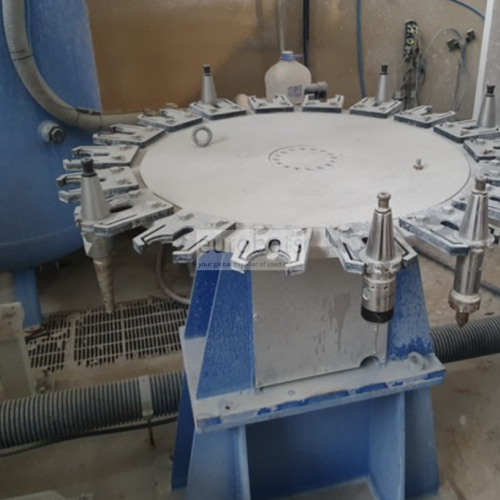

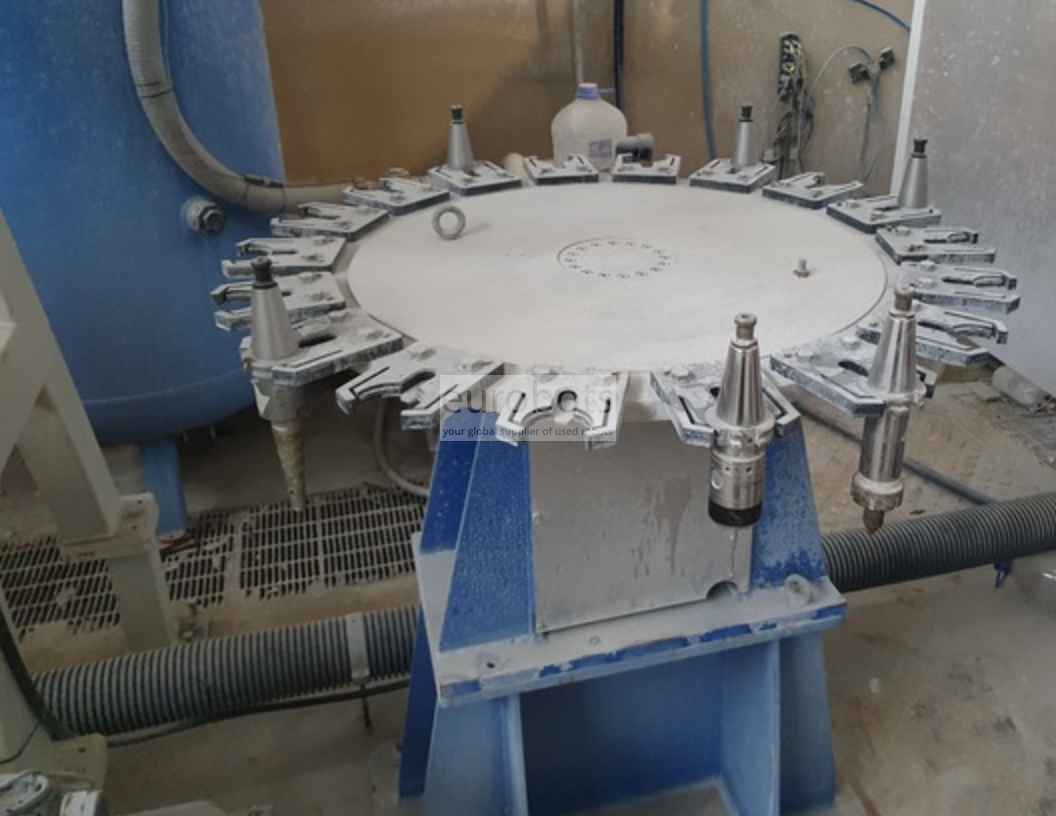

- A rotary loader for cone changeover

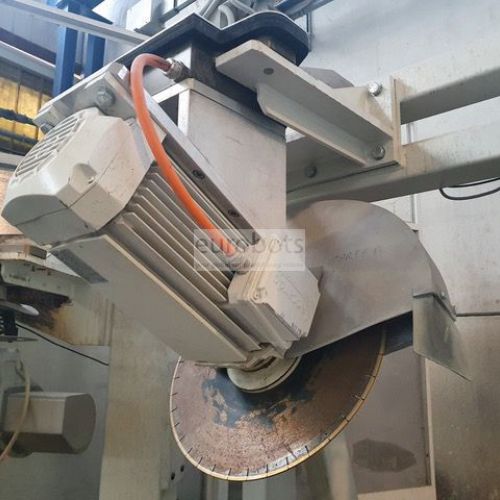

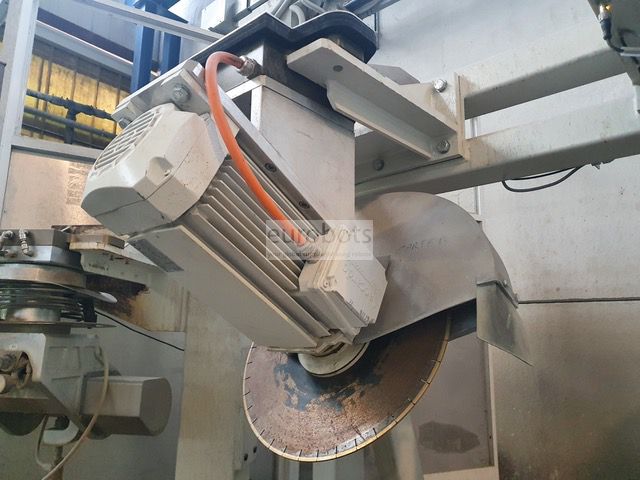

- A marble cutting spindle n.2, made in Italy.

- One suction cup gripper for Octopus system products ( Handling products)

- Suction cup gripping device for handling flat surfaces (max. capacity 170 kg) including 500 1 vacuum pump.

- Professional Tool changer for different tools, 2 spindles and gripper ( made in Italy)

- Robot pedestal

- Chiller Eurocold

- External cabinet with the Inverter

General specifications

  • Maximum load of robot: 325 Kg
  • Number of axis: 6
  • Maximum Reach: 3100 mm
  • Repeatability: 0.3 mm

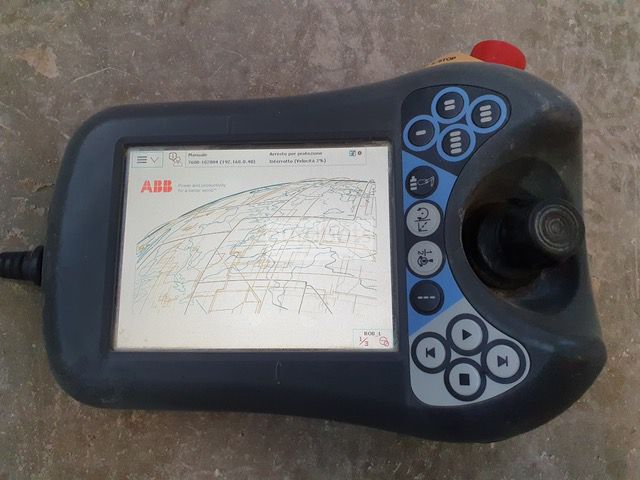

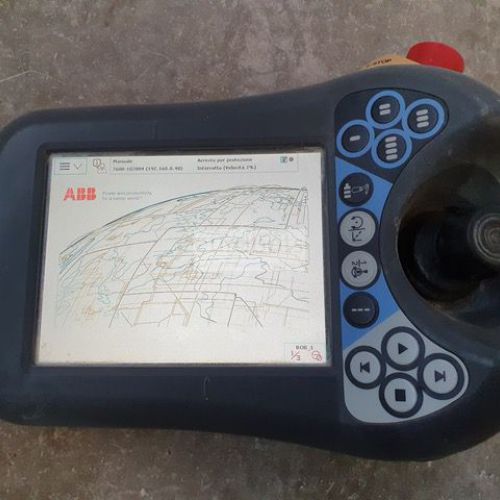

  • Controller: IRC5 M2004

Robot motion speed (degrees per second)

  • Axis 1: 75°/s
  • Axis 2: 50°/s
  • Axis 3: 55°/s
  • Axis 4: 100°/s
  • Axis 5: 100°/s
  • Axis 6: 160°/s

Robot motion range

  • Axis 1:±180°
  • Axis 2 +85°to -60°
  • Axis 3 ±60°to -180°
  • Axis 4 ±300°
  • Axis 5 ±100°
  • Axis 6 ±300°

Applications

Paletleme , Parçaların yüklenmesi ve boşaltılması , Talaşlı imalat , Parçaların taşınması , Ölçüm , Parçaların montajı , Lazer Kesim , Yapıştırma - Yapıştırıcı bağlama , Advanced Manufacturing , Education , freze hücresi
