motorcu Motoman Twin robotic welding cell Arcsystem 6000 - 2 robots

Yok

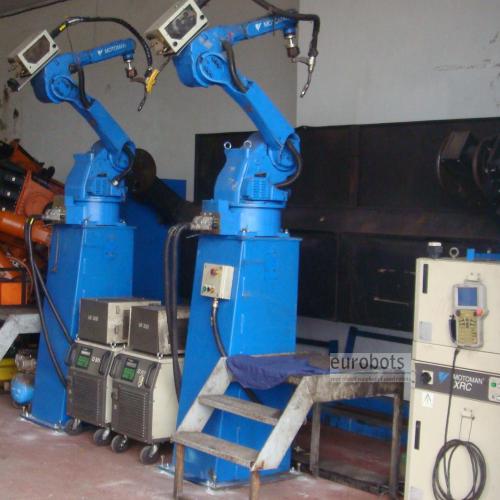

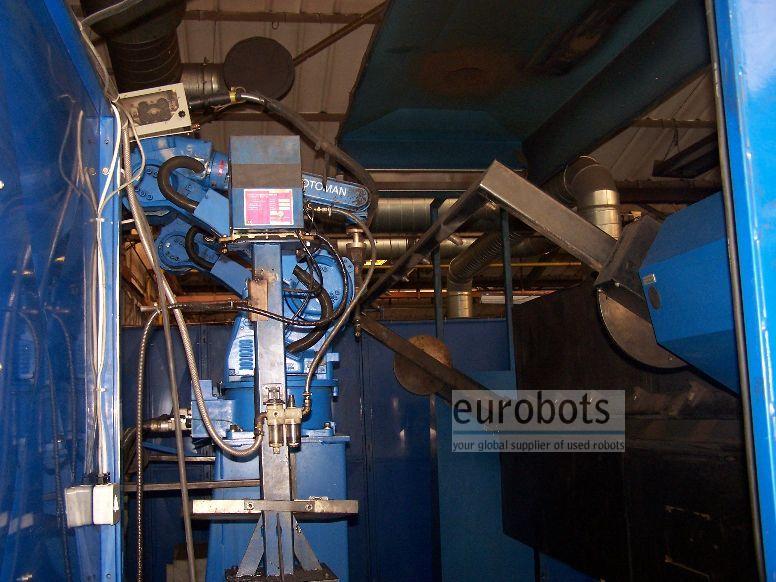

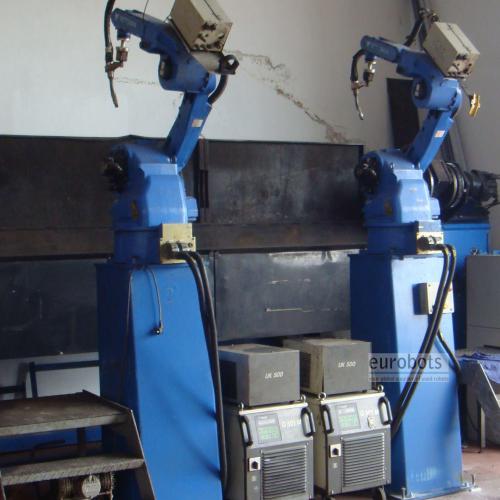

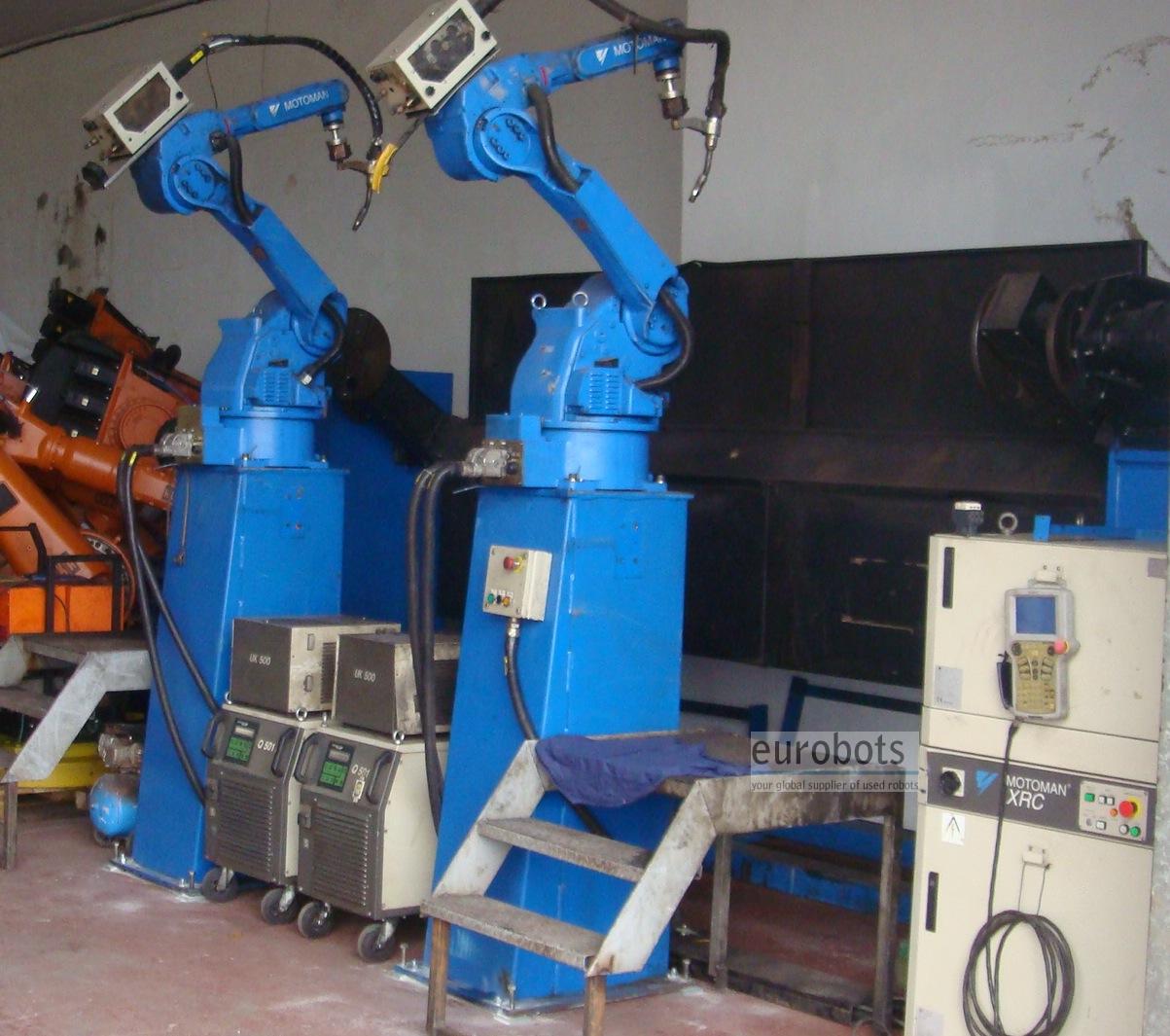

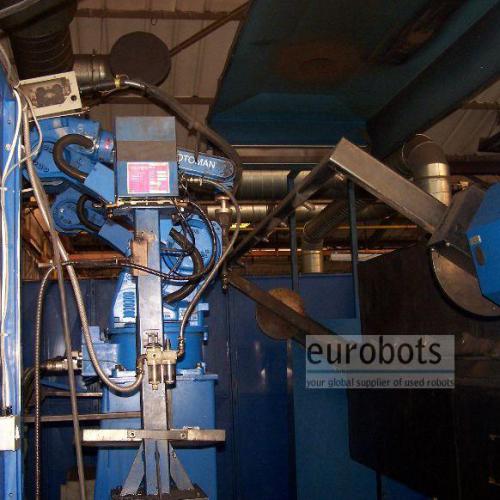

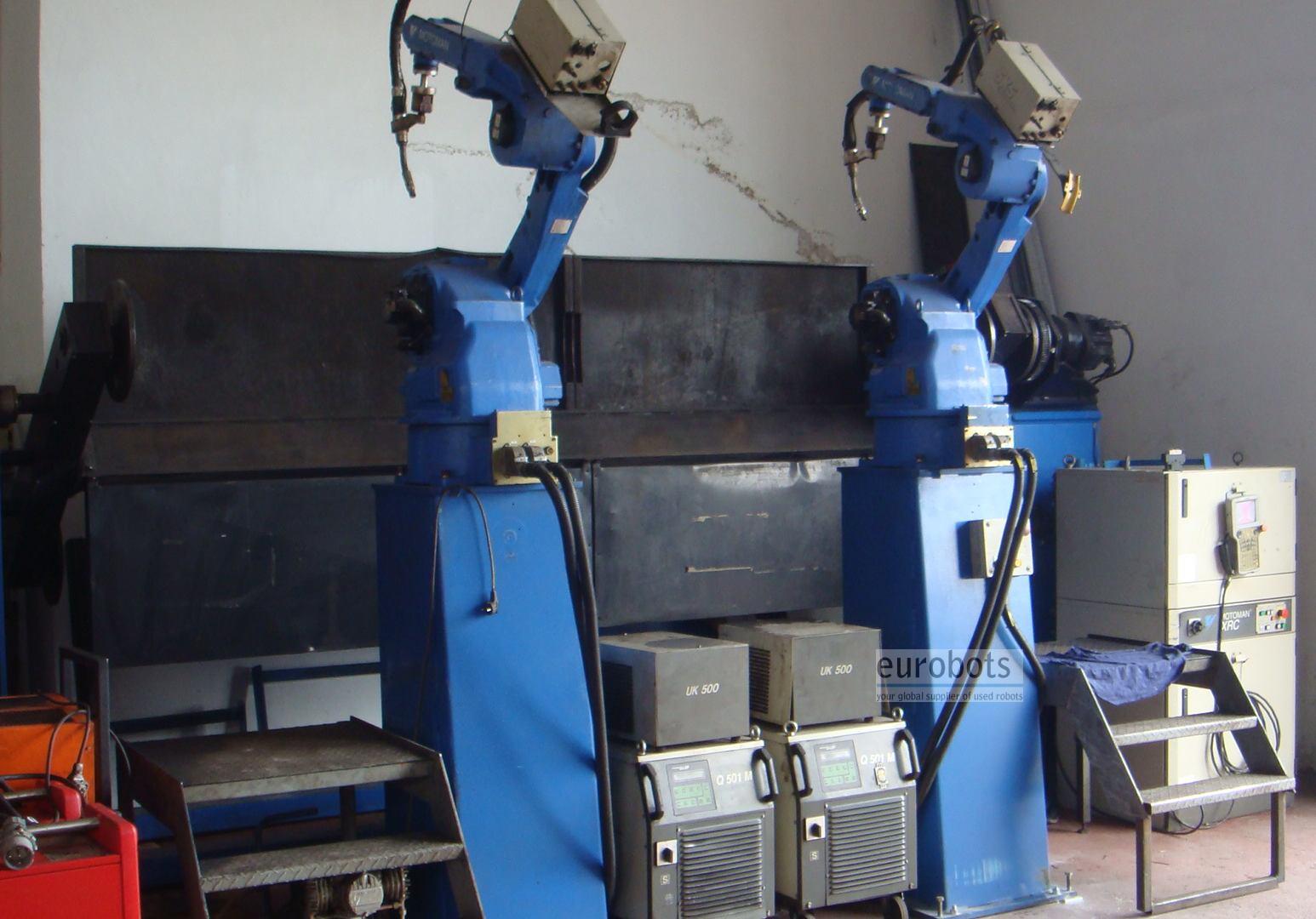

Complete Motoman Arc welding cell, suitable for arc welding of large parts allowing short welding cycles consisting of:

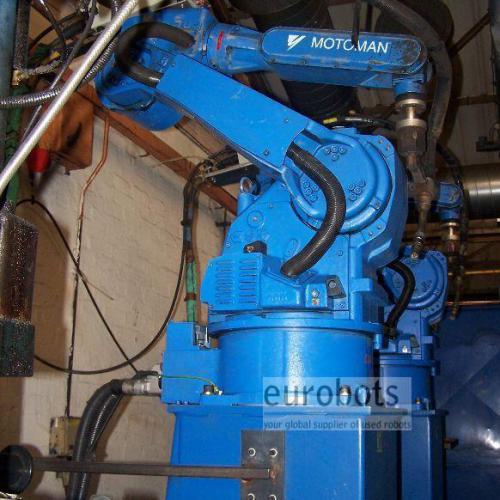

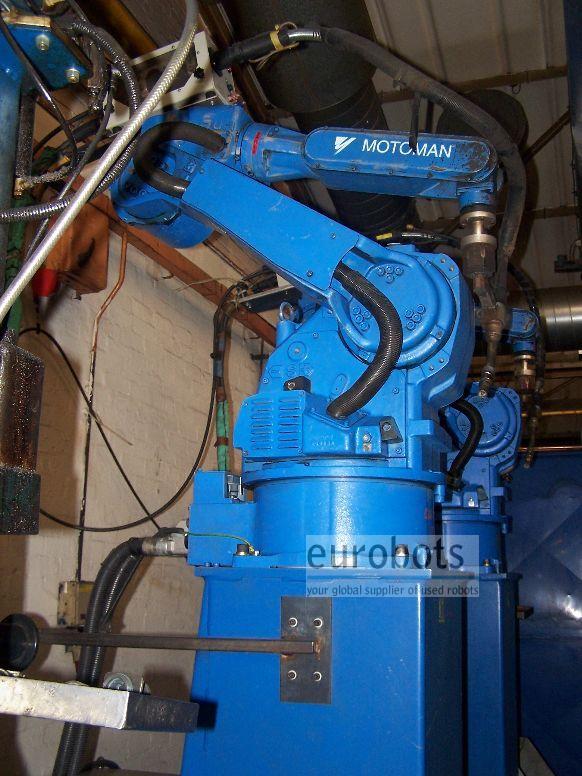

- Two Motoman 6 axis model UP20 industrial robots, 1685 mm horizontal arm reach, with XRC controller arc welding robots working syncronized (TWIN CONFIGURATION)

- Motoman RM2-500 SX 3 axis servocontrolled positioner (loading and unloading station, 180º automatic turn), 3500 mm length and 500 kg loading capacity.

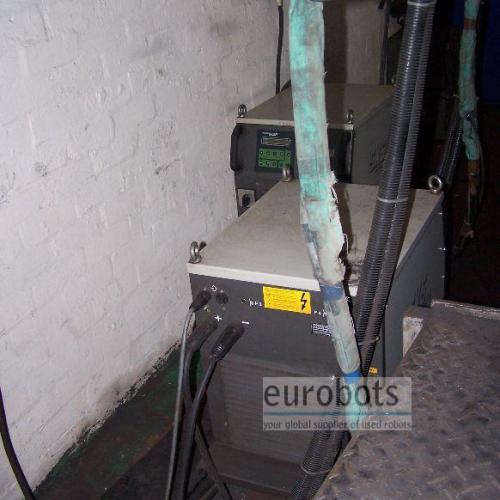

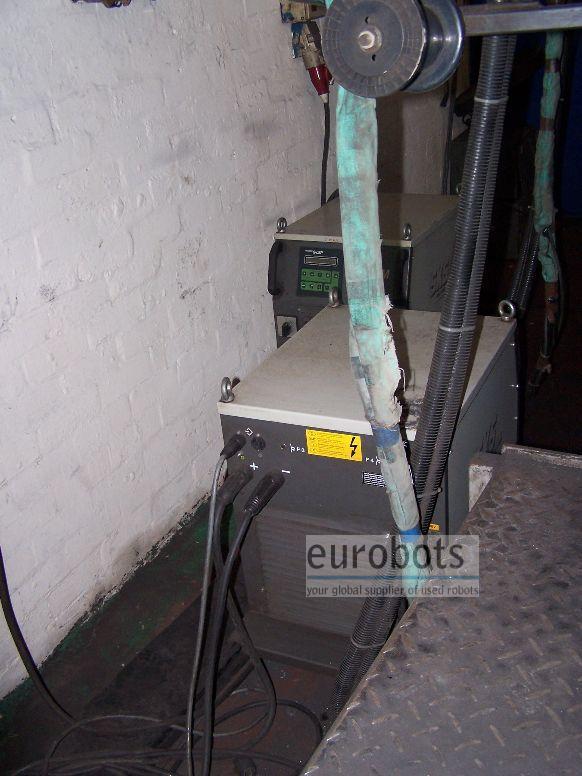

- SKS power source, water cooled, 400 A power

- Torch cleaning station

Robot Info

  • Maximum Load of Robot: 20Kg
  • Maximum Reach: 1658 mm
  • Repeatability: 0,06 mm

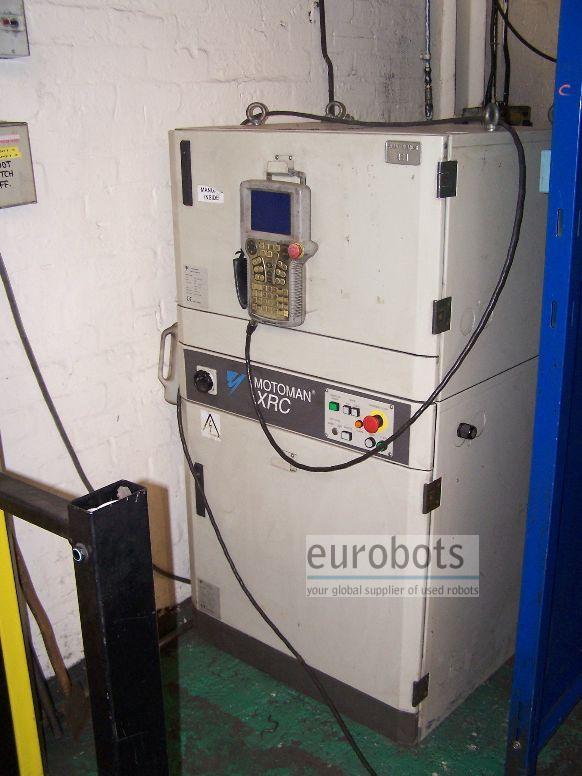

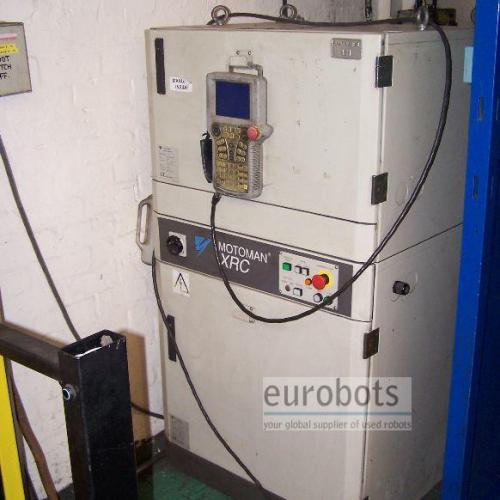

  • Controller: XRC

Robot Motion Speed

  • Axe 1: 165º/seg
  • Axe 2: 165º/seg
  • Axe 3: 165º/seg
  • Axe 4: 335º/seg
  • Axe 5: 335º/seg
  • Axe 6: 510º/seg

Applications

Ark kaynağı

Videos

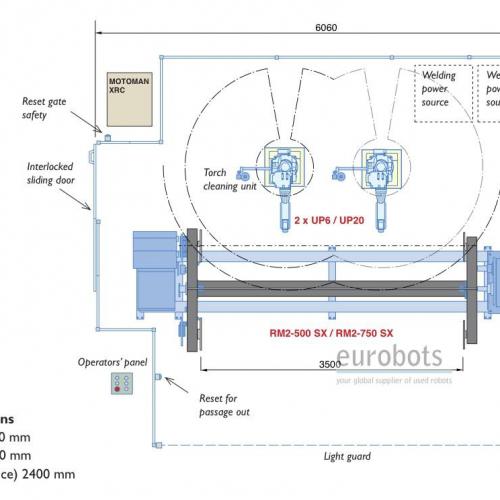

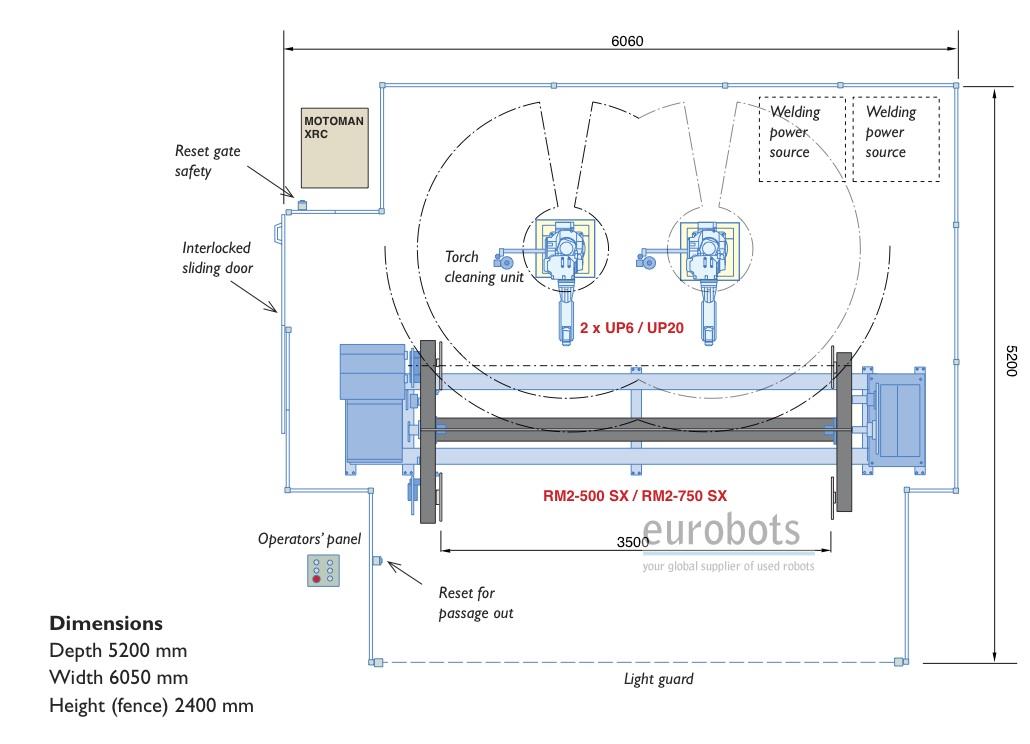

Diagrams
