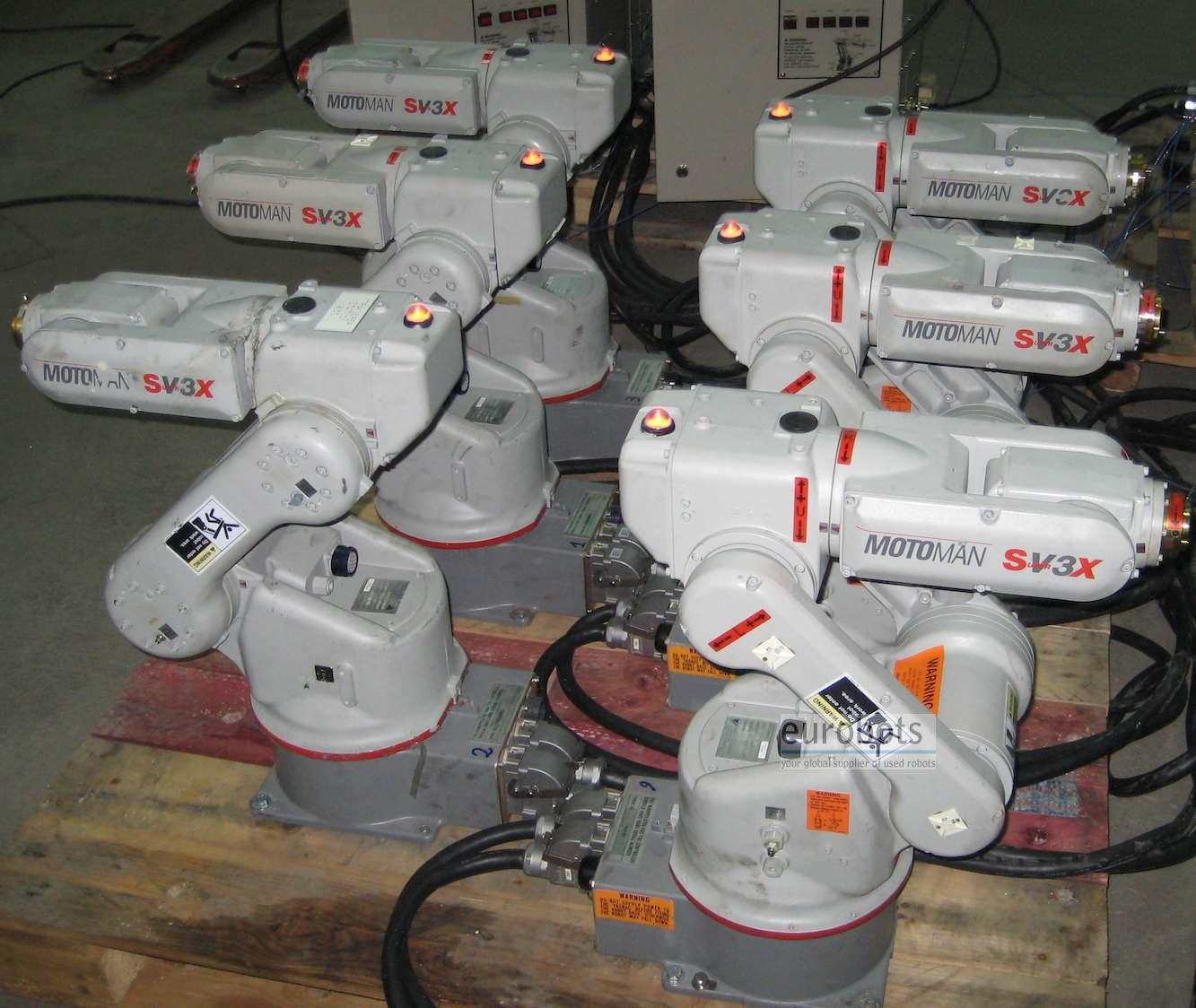

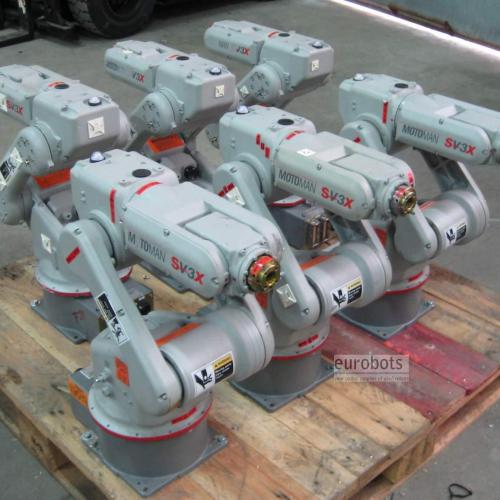

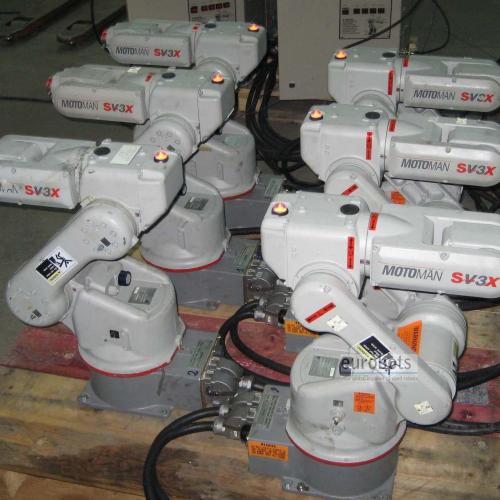

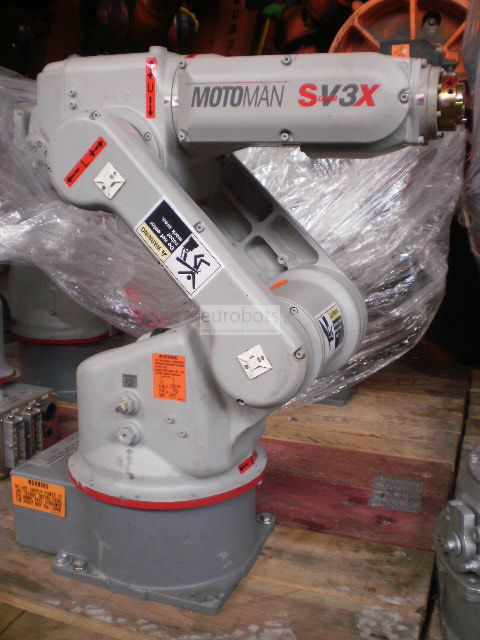

Motoman SV3X

Yok

Year 2000-2001. Equipped with the XRC controller

Compact, Powerful, and Economical

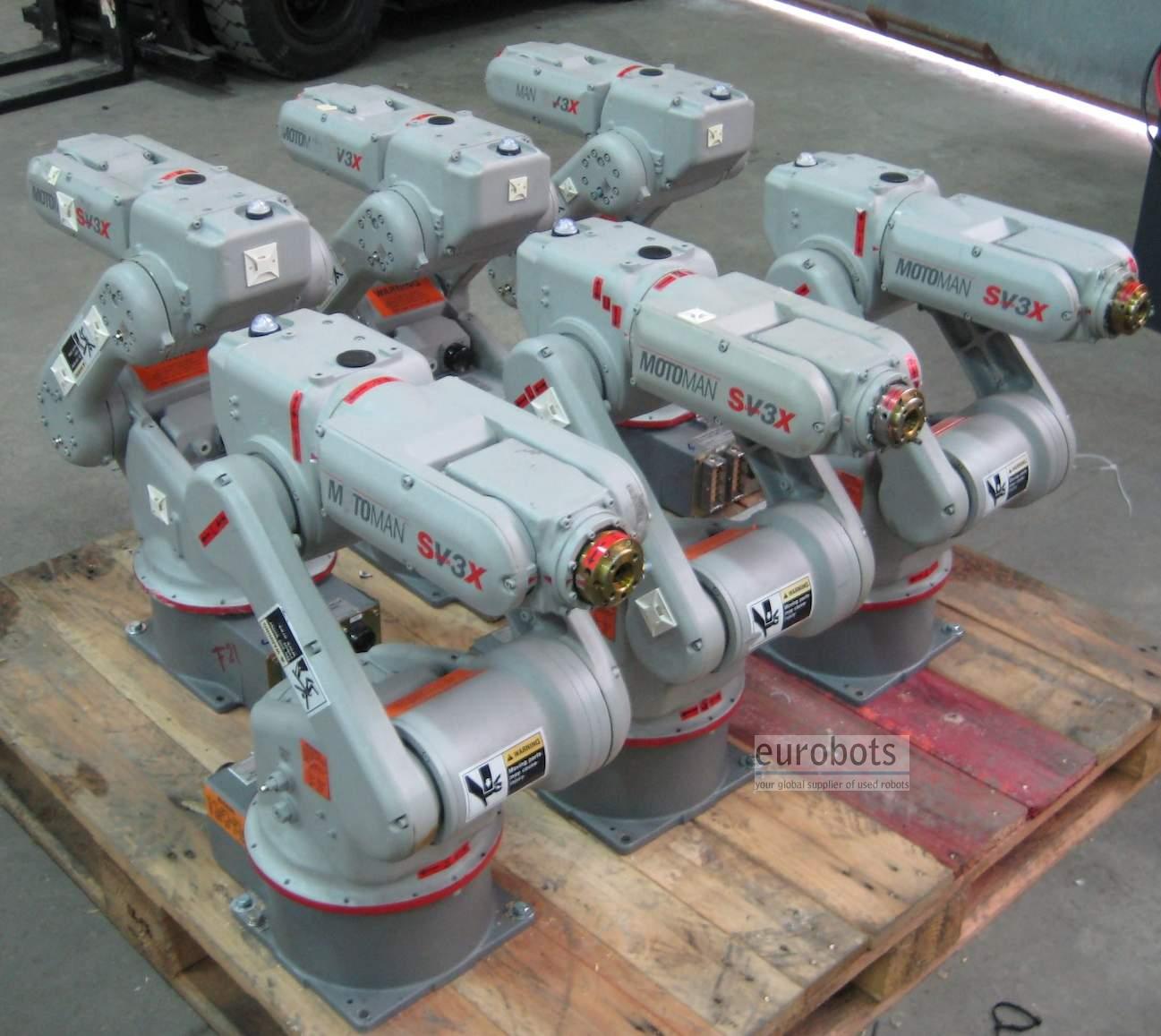

The Motoman SV3X is a compact, high-speed robot that requires minimal installation space. Due to its small footprint, it can easily be mounted on a table, track, or other mounting platform.
The SV3X offers superior performance in small part applications such as assembly, packaging, material handling, machine tending, and arc welding.

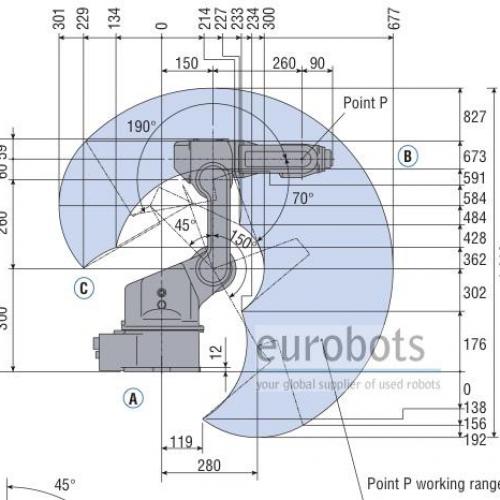

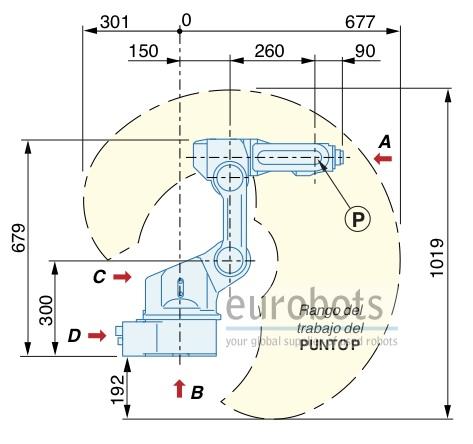

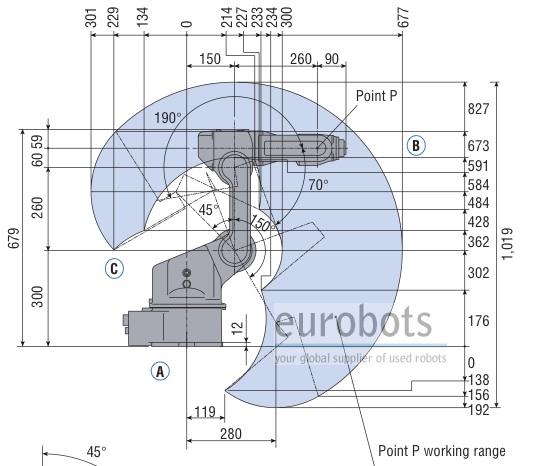

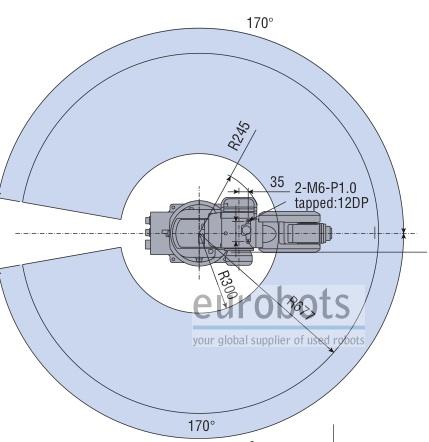

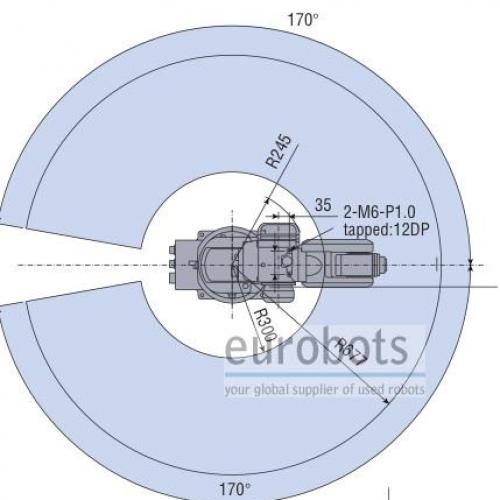

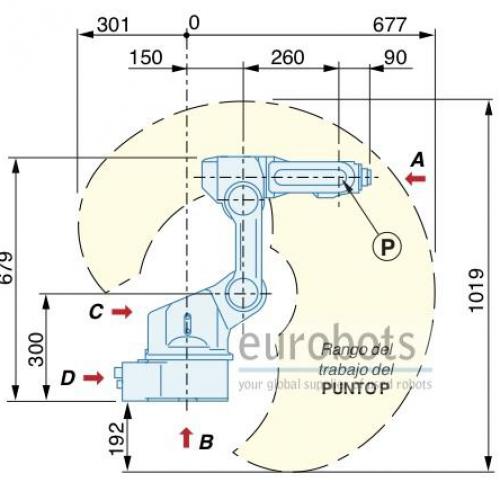

The SV3X features a 677 mm (26.7") reach and offers the widest work envelope in its class. The SV3X yields extraordinary production results while requiring minimal capital investment.

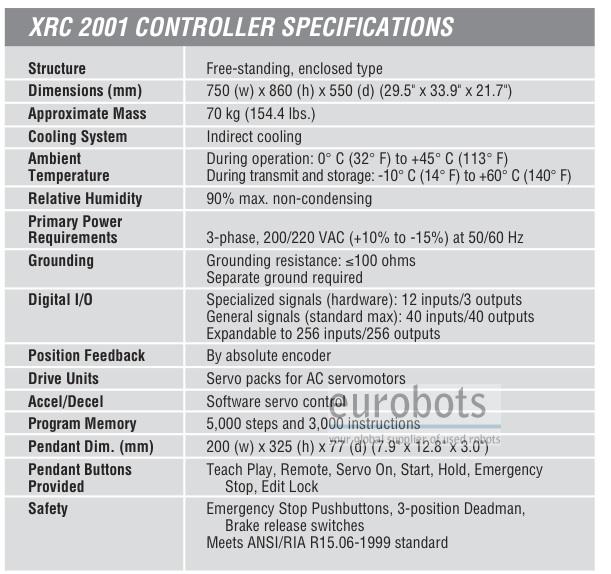

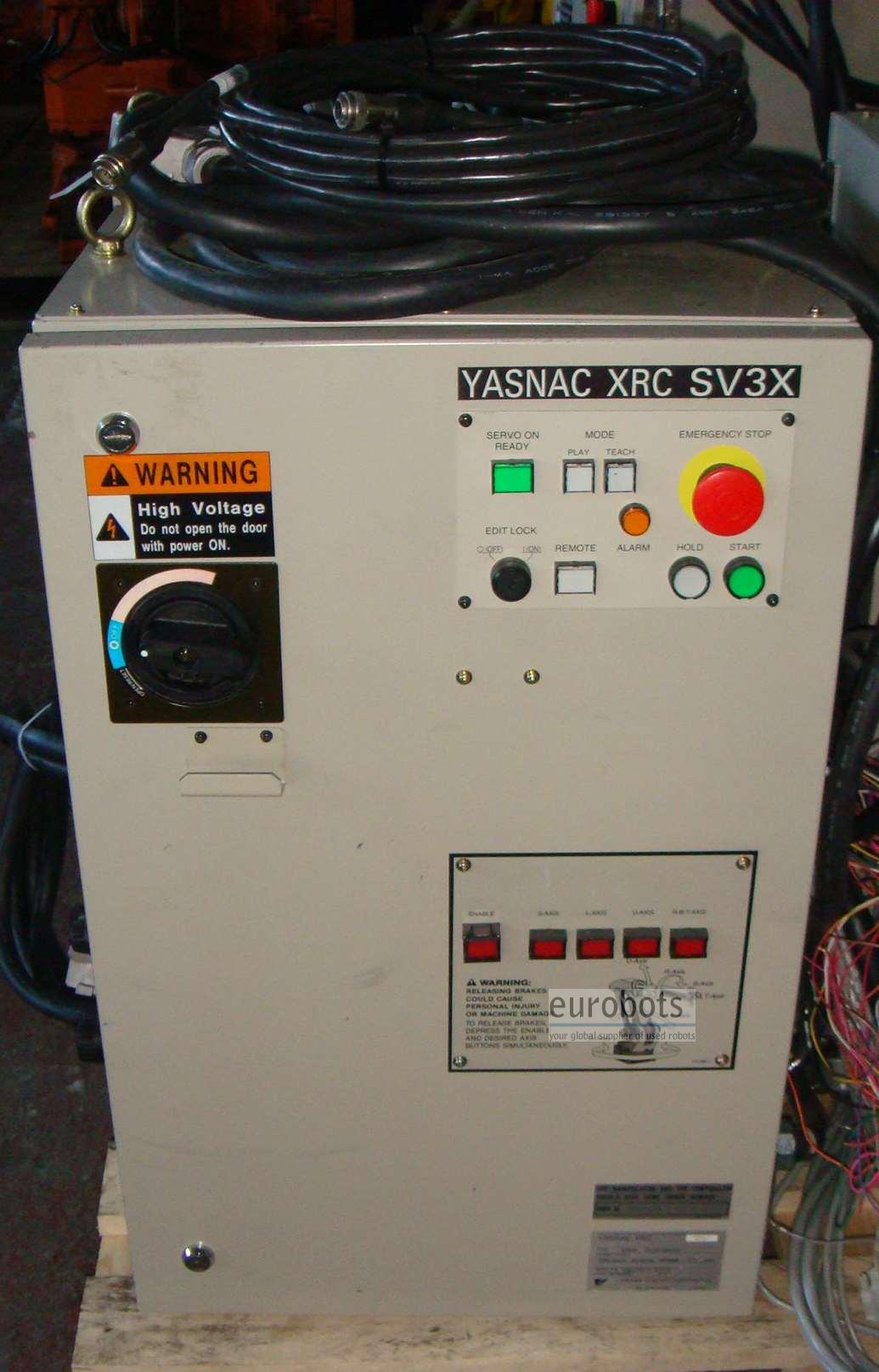

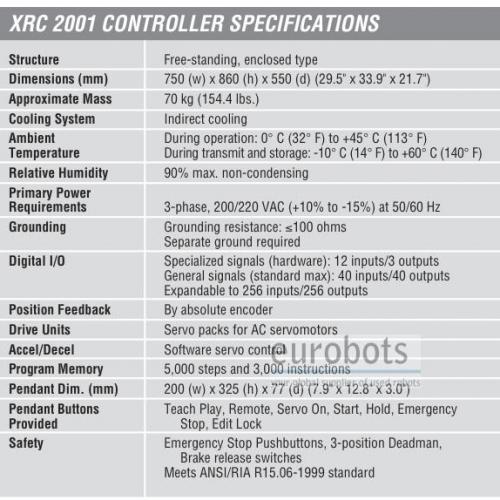

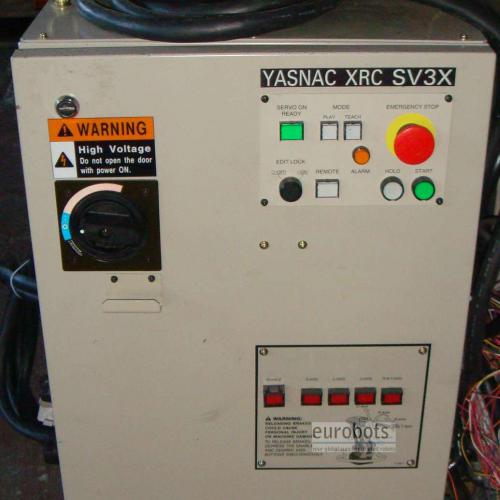

Advanced XRC 2001 Controller

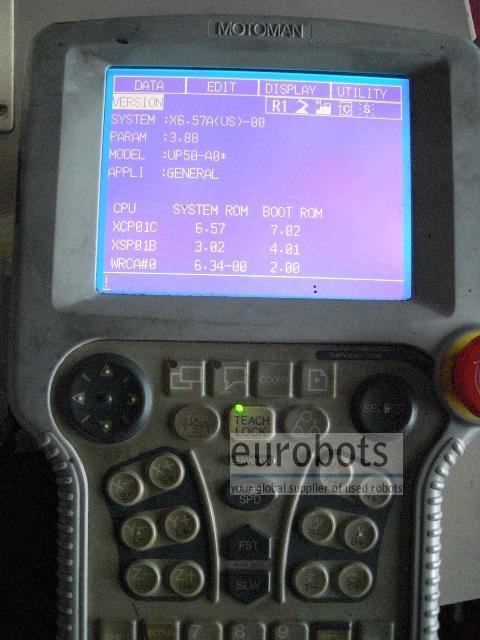

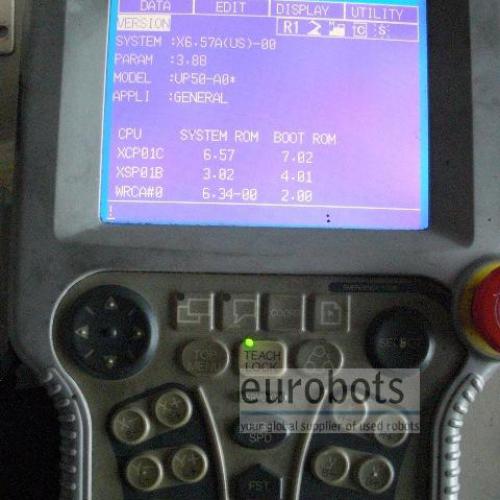

The XRC 2001 controller features an award-winning programming pendant design, fast processing, and easy-to-use INFORM II programming language. Up to four robots (or 36 axes) can be controlled at one time. Advanced Robot Motion (ARM) control provides high-performance path accuracy and vibration control.
Dynamic acceleration is based on payload, so cycle time is reduced. Programmable acceleration and deceleration eliminates approach points and results in reduced teaching time.
XRC 2001 offers optional DeviceNet, ControlNet, Profibus-DP, and Interbus-S for easy connection with a network infrastructure.

FEATURES & OPTIONS


- Full 6-axis capability provides high flexibility

- Floor-, wall-, and ceiling- mounting options

- Advanced Sigma (Σ) motors provide powerful, slim design
- ±0.03 mm (±0.001") repeatability
- Application-specific software

- Advanced Robot Motion control

- Minimal capital investment

- MotoMax® III warranty (standard)

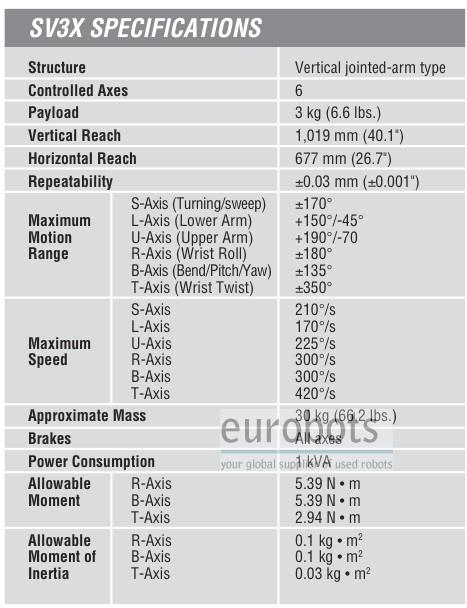

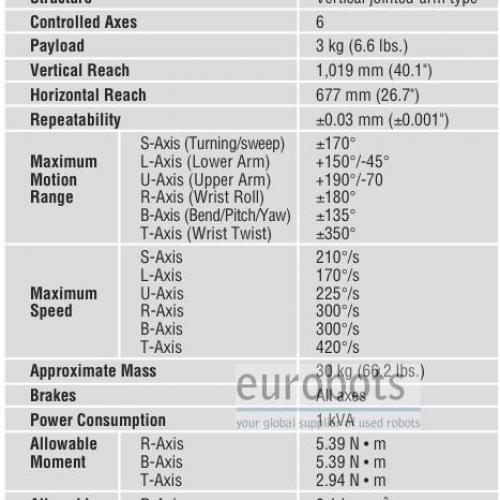

Robot Info:

  • Maximum Load of Robot: 3 Kg
  • Maximum Reach: 677 mm.
  • Repeatability: 0,03 mm.
  • Controller: XRC

Robot Motion Speed:

  • Axe 1: 210º/s
  • Axe 2: 170º/s
  • Axe 3: 225º/s
  • Axe 4: 300º/s
  • Axe 5: 300º/s
  • Axe 6: 420º/s

Applications

Küçük parçaların yüklenmesi ve boşaltması , Parçaların manipülasyonu , Parçaların montajı
