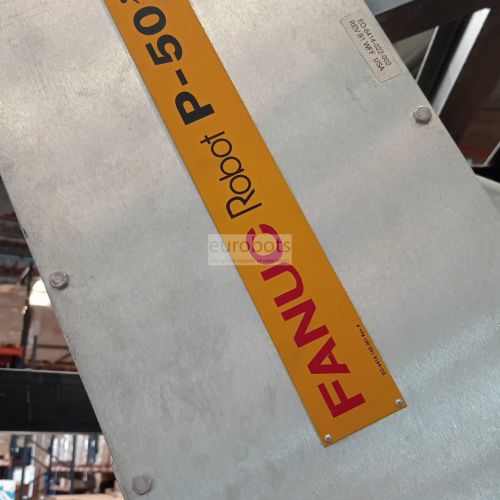

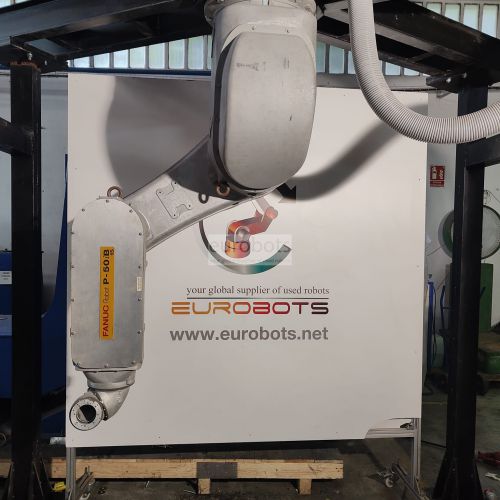

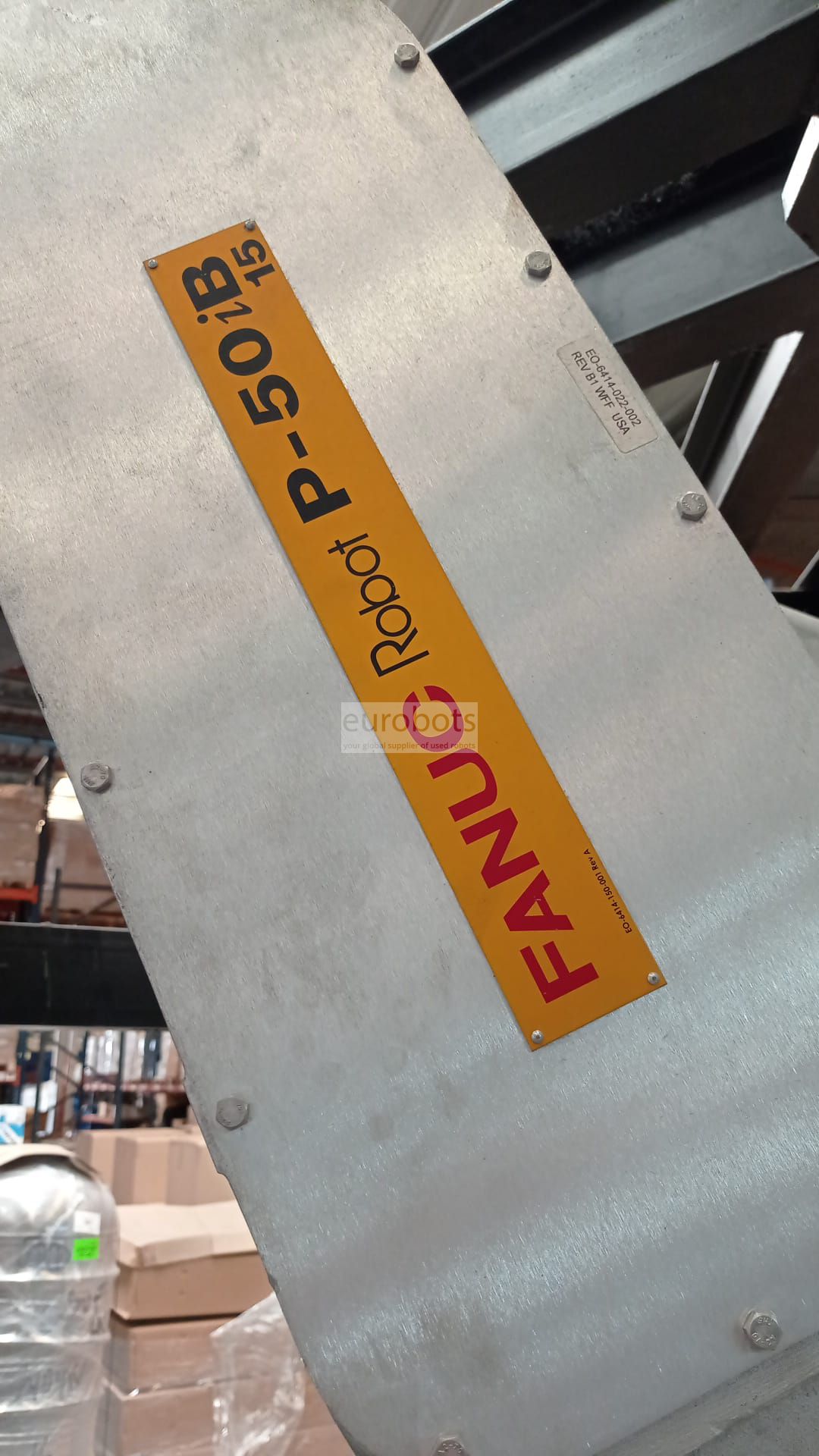

Fanuc P-50iB/15 Paint

Yok

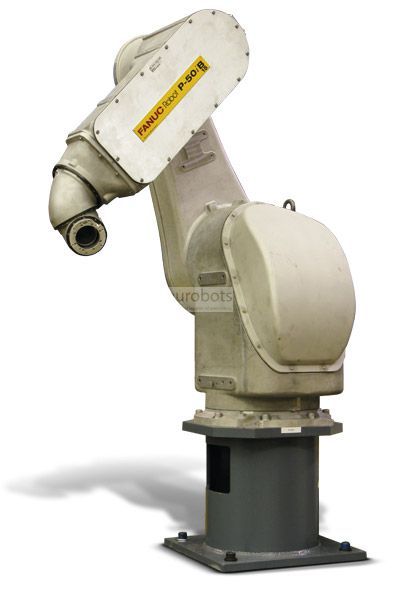

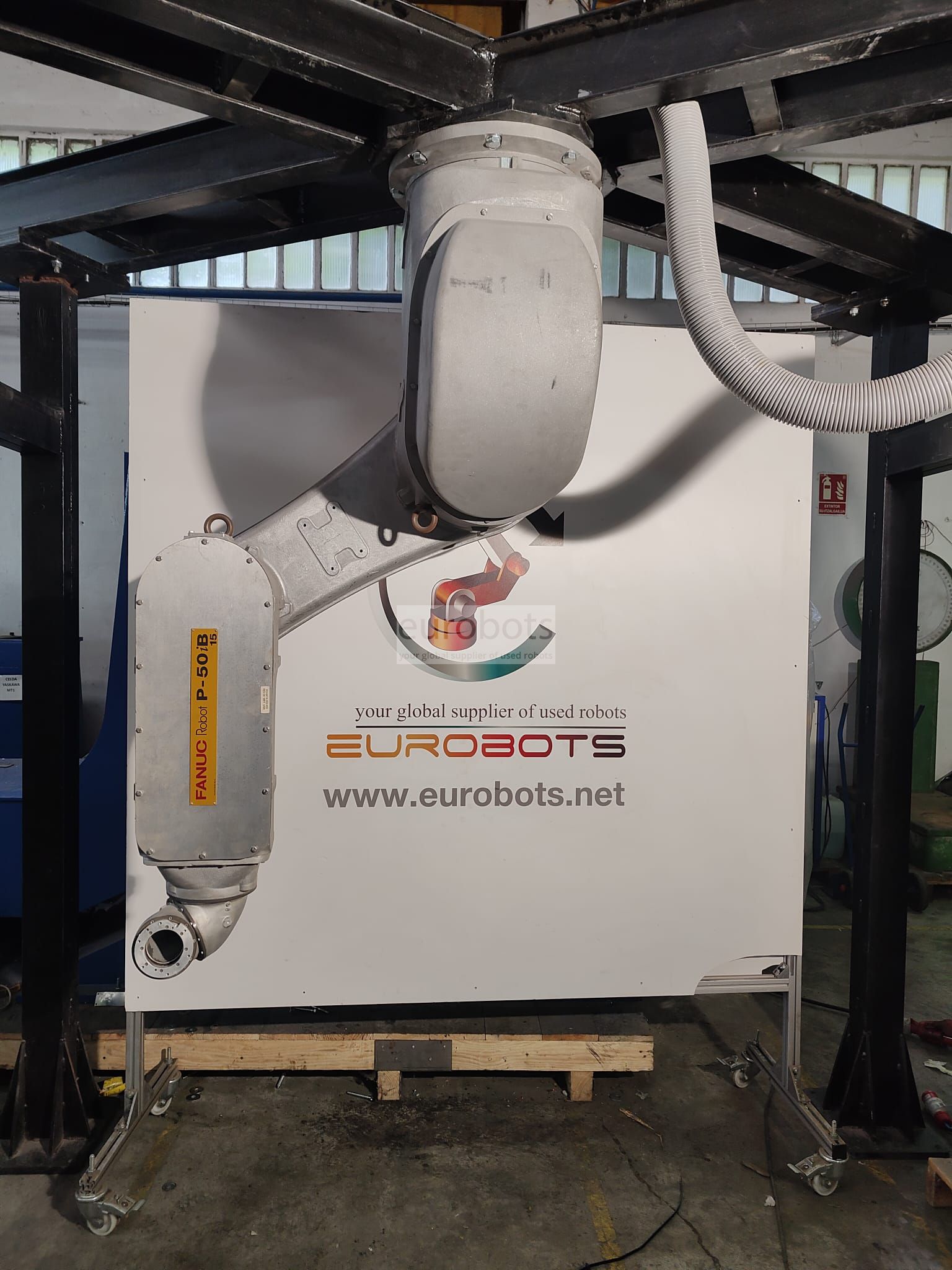

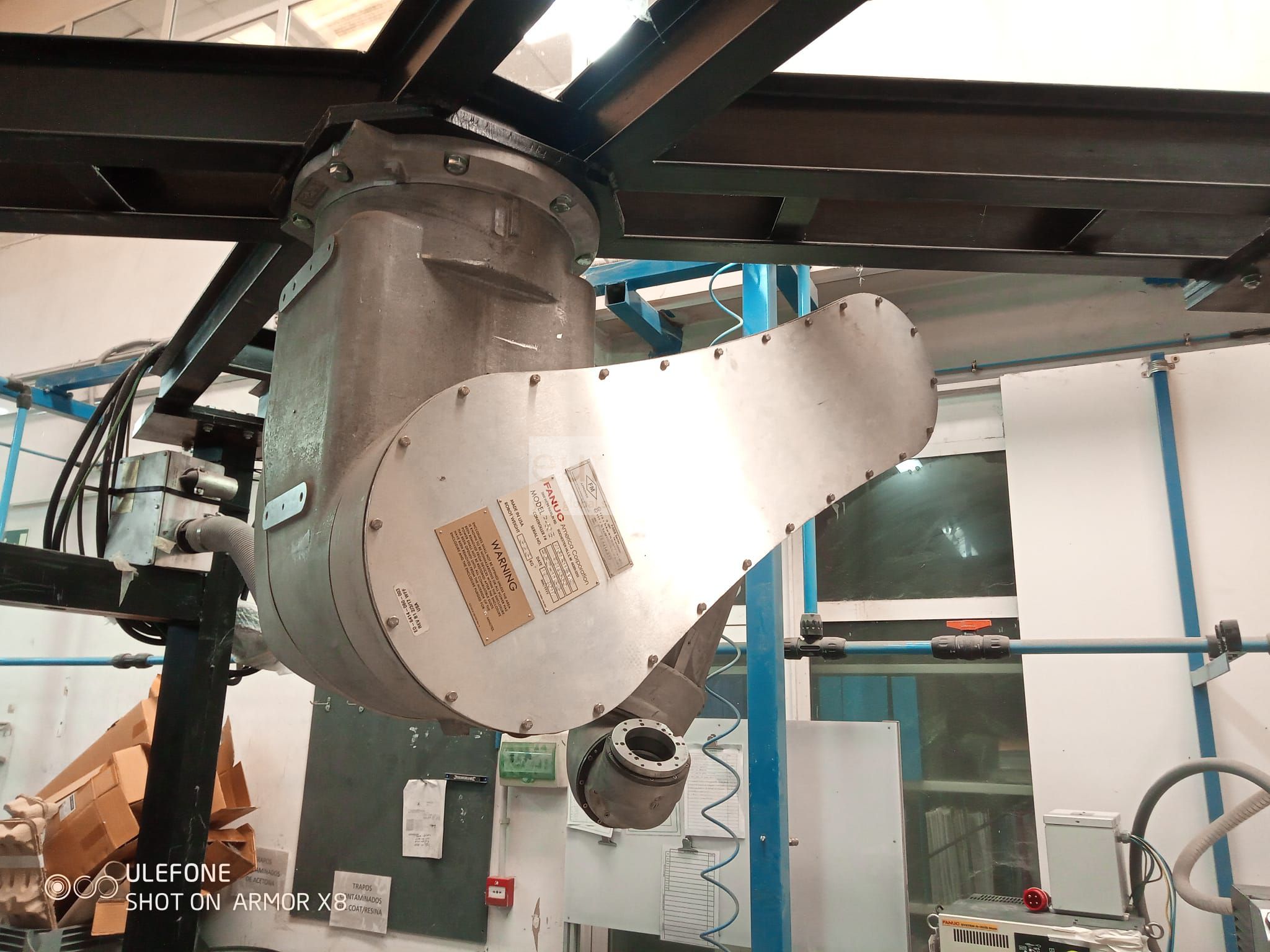

P-50iB / 15 6-axis industrial robot suitable for manual spraying tasks; Painting and coating for interior and exterior bodies and different industries, ultracompact and efficient design with a lighter arm of aluminum construction that requires less power, more safety its smooth surface allows a better cleaning, with load capacity of 15 kg, Su Patented hollow wrist with an inner diameter of 68 mm in the arms J4 to J6 that allows to increase the quality of the product eliminating the impurities originated by the externalized painting hoses. With the powerful Software specialized in PAINT TOOL applications such as; Process-oriented operation, rapid parameterization, process-specific terminology, atomization and spray calibration, color presets, dynamic editing of paint parameters and path points. ATEX certificate for Category 2 and Group IIG (previously zone 1).

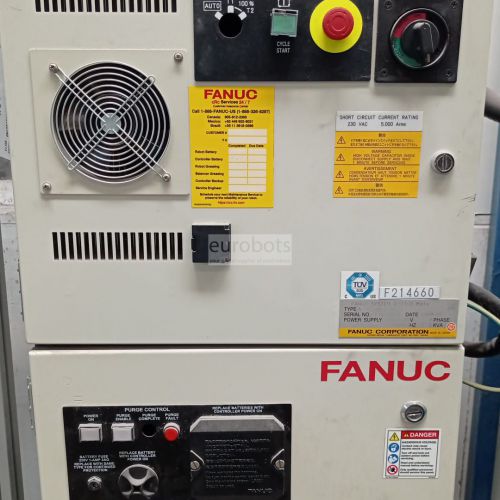

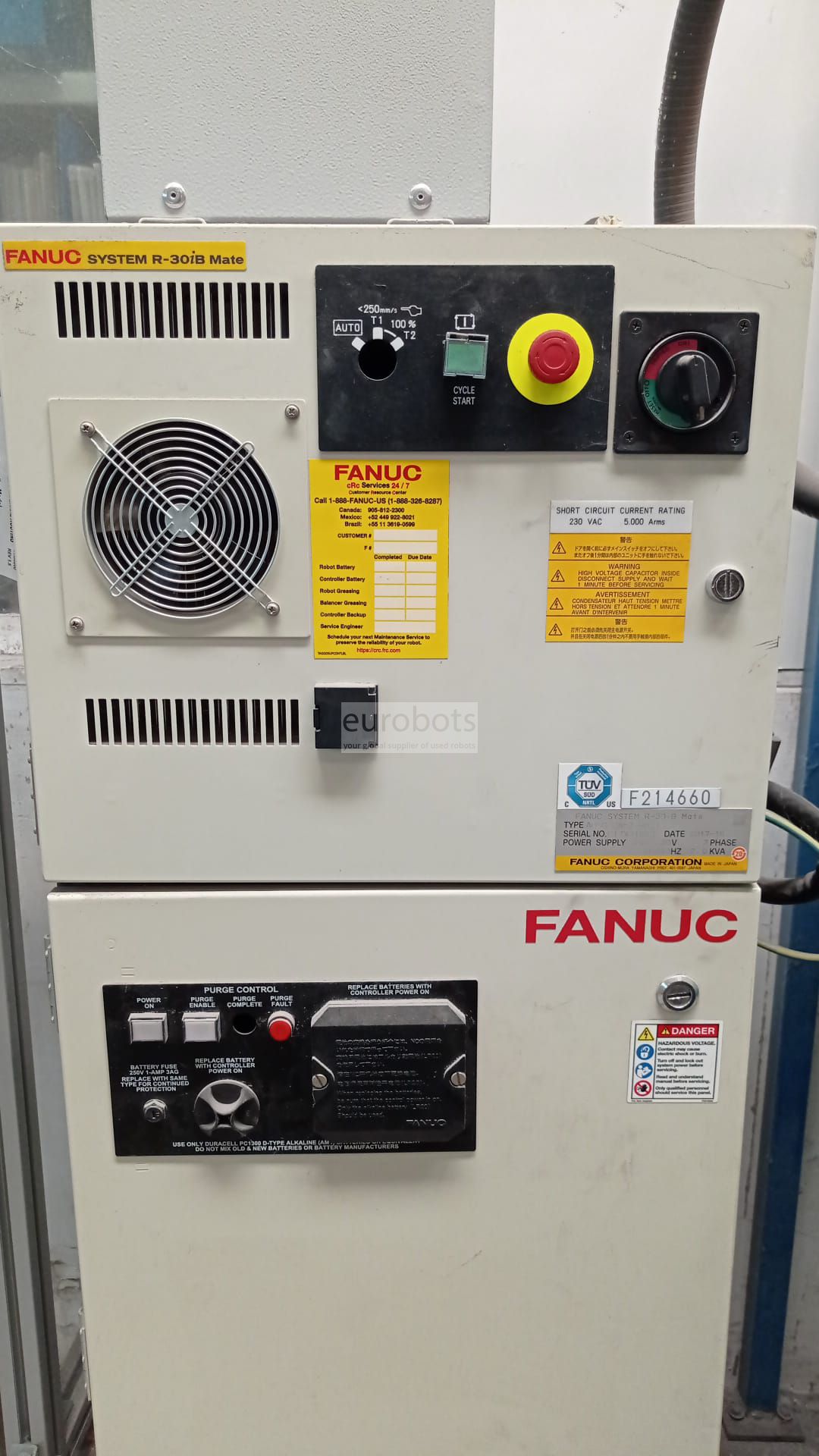

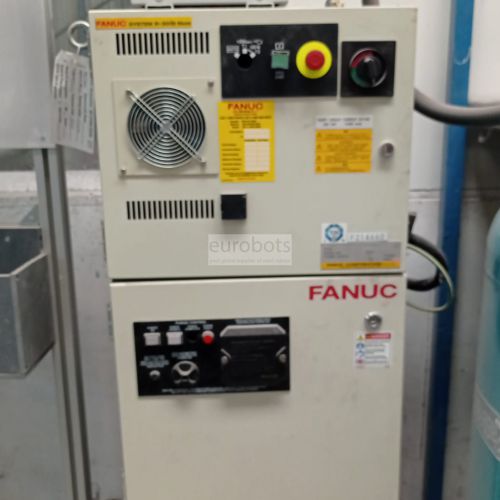

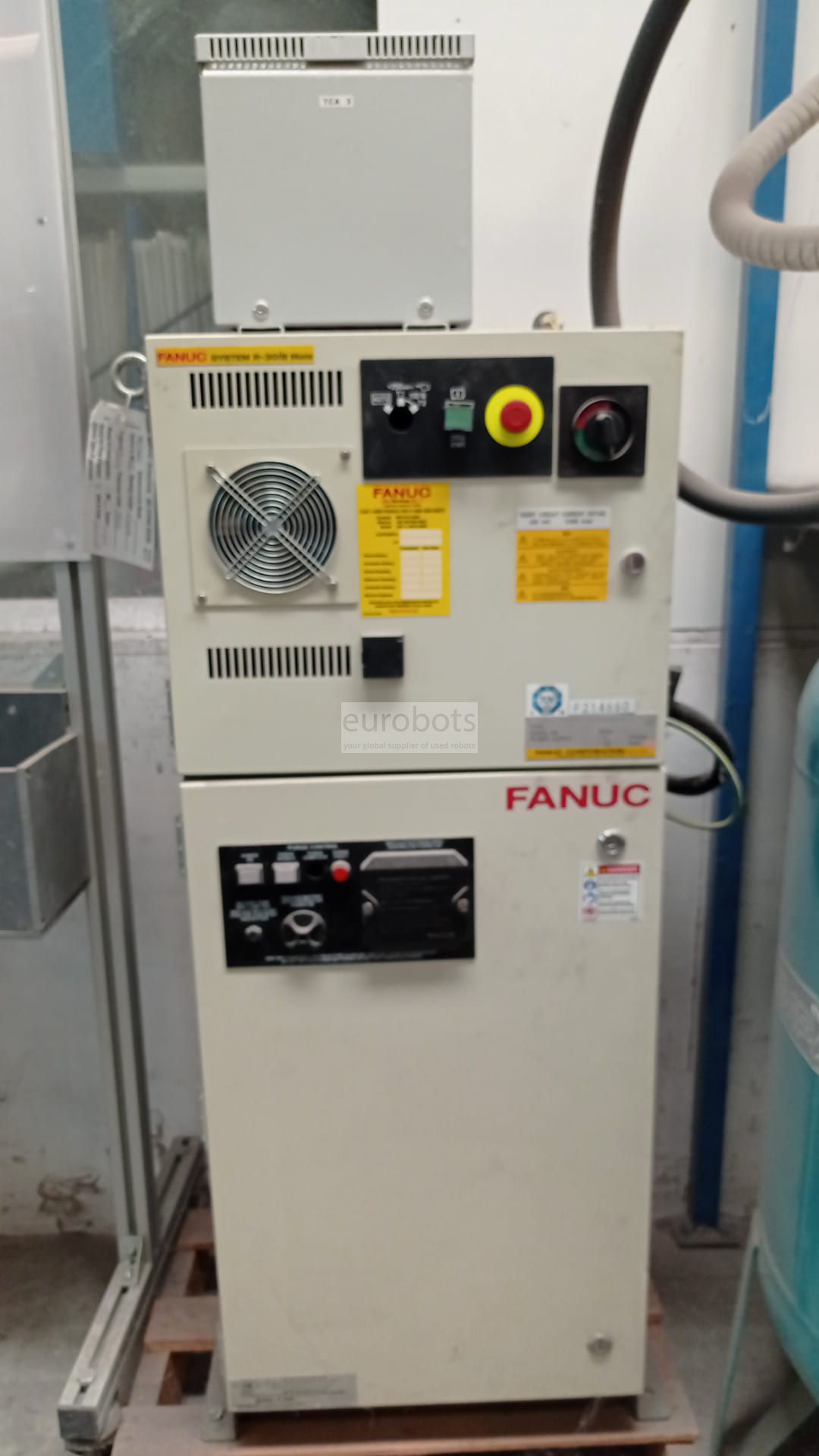

R-30iB control system
Latest generation of efficient, compact and stackable FANUC advanced technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With intuitive iPendant Touch, more intelligent and easy to use.
Main specifications

Maximum Load of Robot: 15 Kg
Number of axis: 6
Maximum horizontal reach: 14 00 mm
Repeatability: ± 0.2 mm
Controller: R-30iB

Motion range (°)

Axis 1: 320°
Axis 2: 240°
Axis 3: 404°
Axis 4: 1080°
Axis 5: 1080°
Axis 6: 1080°

Maximum speed (°/s)

Axis 1: 140°/s
Axis 2: 140°/s
Axis 3: 160°/s
Axis 4: 375°/s
Axis 5: 430°/s
Axis 6: 545°/s

Robot Applications

Painting
